Grandstream GWN7664LR Outdoor Long Range WiFi 6 Access Point

Available:In Stock
£198.72

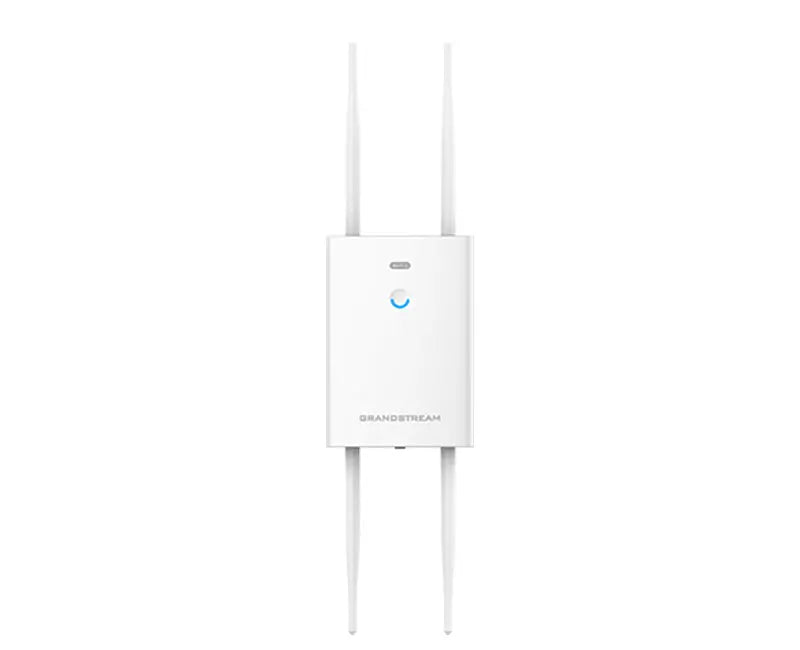

Grandstream GWN7664LR Outdoor WiFi 6 Access Point

The Grandstream GWN7664LR is an outdoor 802.11ax 4×4:4 Wi-Fi 6 access point for medium-to-large businesses and enterprises who need to provide long-range coverage in both indoor and outdoor spaces. It offers weatherproof casing and heat resistant technology, dual-band 4×4:4 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network through that supports 750 clients and an expanded 300-meter coverage range. To ensure easy installation and management, the GWN7664LR includes a built-in controller embedded within the product’s web user interface.

Grandstream GWN7664LR Key Features:
  • 3.55Gbps aggregate wireless throughput, 2.5Gbps aggregate wired throughout
  • Dual-band 4x4:4 MU- MIMO with DL/UL OFDMA technology
  • Self power adaptation upon auto detection of PoE or PoE+
  • Support 750+ concurrent Wi-Fi client devices
  • Up to 300-meter coverage range
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot and critical data/control lockdown
  • Flexibility of 4 detachable/changeable antennas for different application scenarios
  • Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management
It is also supported by GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platform. The GWN7664LR is the ideal Wi-Fi AP for voice-over-Wi-Fi deployment and offers a seamless connection with Grandstream’s Wi-Fi capable voice and video IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals and dual Gigabit networks ports with PoE/PoE+, the GWN7664LR is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, hospitals, schools and more.

WN7664LR Technical Specifications

Wi-Fi Standards

  • IEEE 802.11 b/g/n/ac/ax

Antennas

  • 4 dual band external antennas
  • 2.4GHz, gain 3.5dBi
  • 5 GHz, gain 3.5dBi
  • Wi-Fi Data Rates

5G

  • IEEE 802.11ax: 8 Mbps to 2402 Mbps IEEE
  • 802.11ac: 6.5 Mbps to 1733 Mbps IEEE
  • 802.11n: 6.5Mbps to 600Mbps
  • IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

2.4G

  •  IEEE 802.11ax: 8 Mbps to 2402 Mbps IEEE
  • 802.11ac: 6.5 Mbps to 1733 Mbps IEEE
  • 802.11n: 6.5Mbps to 600Mbps
  • IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Frequency Bands

  •  2.4GHz radio: 2412 - 2484 MHz
  • 5GHz radio: 5180 - 5825 MHz
  • *Not all frequency bands can be used in all regions

Channel Bandwidth

  •  2.4G: 20 and 40 MHz (x4) 5G: 20, 40 and 80 MHz (x4)
  • 5G: 20, 40 and 80 MHz (x4

System Security

  • WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical
    data/control lockdown via digital signatures, unique security certificate and random default password
    per device
    MU-MIMO 4×4:4 2.4GHz, 4×4:4 5GHz
  • Coverage Range Up to 300 meters
    *Coverage range can vary based on environment
    Maximum TX Power

2.4

  • 802.11b: -99dBm@1Mbps, -91dBm@11Mbps;
  • 802.11g: -94dBm @6Mbps, -78dBm@54Mbps;
  • 802.11n 20MHz: -75dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7;
  • 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -63dBm @MCS11

5G

  • 802.11a: -95dBm @6Mbps, -77dBm @54Mbps;
  • 802.11n: 20MHz: -74dBm @MCS7; 802.11 n 40MHz: -71dBm @MCS7
  • 802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9;
  • 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -62dBm @MCS11;802.11ax 80MHz: -59dBm @
    MCS11

SSIDs

32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Clients 750+

Network Interfaces

  • 1x 1G Port and 1x 2.5G Port, support 2.5Gbps aggregate wired throughout

Auxiliary Ports

  • 1x Reset Pinhole
    Mounting
  • Wall mount or pole mount, kits included

LEDs

  • 1 tri-color LEDs for device tracking and status indication
    Network Protocols
  • IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS

  • 802.11e/WMM, VLAN, TOS

Network Management

  • Embedded controller can manage up to 50 local GWN APs
  • GWN.Cloud offers a free cloud management platform for unlimited GWN APs
  • GWN Manager offers premise-based software controller for up to 3,000 GWN APs

Power and Green Energy

  • Efficiency
  • PoE 802.3af/ 802.3at;
  • Maximum Power Consumption: 18W

Environmental

  • Operation:-30°Cto 60°C
  • Storage: -30°C to 60°C
  • Humidity: 10% to 90% Non-condensing

Physical

  • Unit Dimension: 562.3mm(L)x140mm(W)x44.9mm(H);
  • Unit + Mounting Kits Dimension: 562.3mm(L)x140mm(W)x66.9mm(H)

Entire Package;

  • Dimension: 260mm(L)x218.5mm(W)x108mm(H);

Package Content

  • GWN7664LR 802.11ax Wireless AP, Mounting Kits, Quick Installation Guide

Weatherproof

  • Grade IP66-level weatherproof capability when installed vertically

Compliance

  • FCC, CE, RCM, IC, UKCA

Grandstream GWN7664LR Outdoor WiFi 6 Access Point

The Grandstream GWN7664LR is an outdoor 802.11ax 4×4:4 Wi-Fi 6 access point for medium-to-large businesses and enterprises who need to provide long-range coverage in both indoor and outdoor spaces. It offers weatherproof casing and heat resistant technology, dual-band 4×4:4 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network through that supports 750 clients and an expanded 300-meter coverage range. To ensure easy installation and management, the GWN7664LR includes a built-in controller embedded within the product’s web user interface.

Grandstream GWN7664LR Key Features:
  • 3.55Gbps aggregate wireless throughput, 2.5Gbps aggregate wired throughout
  • Dual-band 4x4:4 MU- MIMO with DL/UL OFDMA technology
  • Self power adaptation upon auto detection of PoE or PoE+
  • Support 750+ concurrent Wi-Fi client devices
  • Up to 300-meter coverage range
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot and critical data/control lockdown
  • Flexibility of 4 detachable/changeable antennas for different application scenarios
  • Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management
It is also supported by GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platform. The GWN7664LR is the ideal Wi-Fi AP for voice-over-Wi-Fi deployment and offers a seamless connection with Grandstream’s Wi-Fi capable voice and video IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals and dual Gigabit networks ports with PoE/PoE+, the GWN7664LR is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, hospitals, schools and more.   WN7664LR Technical Specifications

Wi-Fi Standards

  • IEEE 802.11 b/g/n/ac/ax

Antennas

  • 4 dual band external antennas
  • 2.4GHz, gain 3.5dBi
  • 5 GHz, gain 3.5dBi
  • Wi-Fi Data Rates

5G

  • IEEE 802.11ax: 8 Mbps to 2402 Mbps IEEE
  • 802.11ac: 6.5 Mbps to 1733 Mbps IEEE
  • 802.11n: 6.5Mbps to 600Mbps
  • IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

2.4G

  •  IEEE 802.11ax: 8 Mbps to 2402 Mbps IEEE
  • 802.11ac: 6.5 Mbps to 1733 Mbps IEEE
  • 802.11n: 6.5Mbps to 600Mbps
  • IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Frequency Bands

  •  2.4GHz radio: 2412 - 2484 MHz
  • 5GHz radio: 5180 - 5825 MHz
  • *Not all frequency bands can be used in all regions

Channel Bandwidth

  •  2.4G: 20 and 40 MHz (x4) 5G: 20, 40 and 80 MHz (x4)
  • 5G: 20, 40 and 80 MHz (x4

System Security

  • WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical
    data/control lockdown via digital signatures, unique security certificate and random default password
    per device
    MU-MIMO 4×4:4 2.4GHz, 4×4:4 5GHz
  • Coverage Range Up to 300 meters
    *Coverage range can vary based on environment
    Maximum TX Power

2.4

  • 802.11b: -99dBm@1Mbps, -91dBm@11Mbps;
  • 802.11g: -94dBm @6Mbps, -78dBm@54Mbps;
  • 802.11n 20MHz: -75dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7;
  • 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -63dBm @MCS11

5G

  • 802.11a: -95dBm @6Mbps, -77dBm @54Mbps;
  • 802.11n: 20MHz: -74dBm @MCS7; 802.11 n 40MHz: -71dBm @MCS7
  • 802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9;
  • 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -62dBm @MCS11;802.11ax 80MHz: -59dBm @
    MCS11

SSIDs

32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Clients 750+

Network Interfaces

  • 1x 1G Port and 1x 2.5G Port, support 2.5Gbps aggregate wired throughout

Auxiliary Ports

  • 1x Reset Pinhole
    Mounting
  • Wall mount or pole mount, kits included

LEDs

  • 1 tri-color LEDs for device tracking and status indication
    Network Protocols
  • IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS

  • 802.11e/WMM, VLAN, TOS

Network Management

  • Embedded controller can manage up to 50 local GWN APs
  • GWN.Cloud offers a free cloud management platform for unlimited GWN APs
  • GWN Manager offers premise-based software controller for up to 3,000 GWN APs

Power and Green Energy

  • Efficiency
  • PoE 802.3af/ 802.3at;
  • Maximum Power Consumption: 18W

Environmental

  • Operation:-30°Cto 60°C
  • Storage: -30°C to 60°C
  • Humidity: 10% to 90% Non-condensing

Physical

  • Unit Dimension: 562.3mm(L)x140mm(W)x44.9mm(H);
  • Unit + Mounting Kits Dimension: 562.3mm(L)x140mm(W)x66.9mm(H)

Entire Package;

  • Dimension: 260mm(L)x218.5mm(W)x108mm(H);

Package Content

  • GWN7664LR 802.11ax Wireless AP, Mounting Kits, Quick Installation Guide

Weatherproof

  • Grade IP66-level weatherproof capability when installed vertically

Compliance

  • FCC, CE, RCM, IC, UKCA
