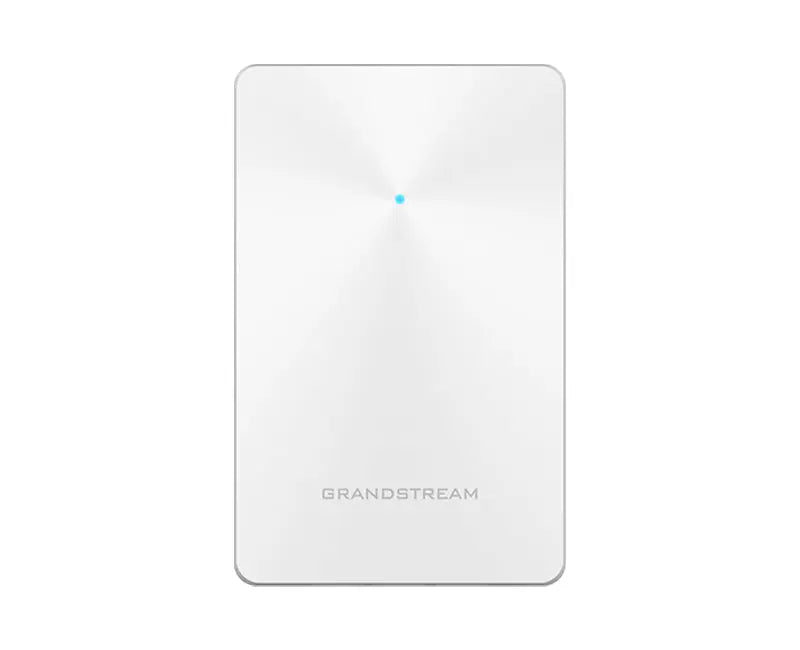

Grandstream GWN7625 W-Fi Access Point
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great
Categories
voipsupplies

Grandstream GWN7625 W-Fi Access Point

Available:In Stock
£75.24

Grandstream GWN7625 W-Fi Access Point

The Grandstream GWN7625 is an 802.11ac Wave-2 Wi-Fi access point ideal for small-to-medium sized businesses, home offices, retail shops, restaurants and more. It offers 4x4:4 MU-MIMO technology on the 5G band and 2x2:2 MU-MIMO on the 2.4G band as well as a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7625 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface.

Grandstream GWN7625 Key Features:
  • 2.03 Gbps wireless throughput and 2 Gigabit wireline ports 5GHz 4×4:4 MU-MIMO
  • Supports up to 200 concurrent Wi-Fi client devices
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
  • Self power adaptation upon auto detection of PoE or PoE+
  • Embedded controller can manage up to 30 local GWN series APs;
  • GWN.Cloud offers unlimited AP management; GWN Manager offers premise based software controller
The GWN7625 is also supported by GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi -Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advance d QoS, low-latency real-time applications, mesh networks, captive portals, 200+ concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, the GWN7625 is the ideal Wi-Fi access point for medium wireless network deployments with medium user density.

Grandstream GWN7625 Technical Specifications:

Wi-Fi Standards

  • IEEE 802.11 a/b/g/n/ac (Wave-2)

Antennas

  • 6 single frequency internal antennas
  • 2.4GHz, gain 3.5dBi
  • 5GHz, gain 4.5dBi

Wi-Fi Data Rates

  • 2.4G:
  • IEEE 802.11n: 6.5Mbps to 300Mbps
  • IEEE 802.11b: 1, 2, 5.5, 11 Mbps
  • IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 5G:
  • IEEE 802.11ac: 6.5 Mbps to 1733 Mbps
  • IEEE 802.11ac: 6.5 Mbps to 1733 Mbps
  • IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio
  • interference in the operating environment and mix of devices in the network

Frequency Bands

  • 2.4GHz Radio: 2412 - 2484 MHz
  • 5GHz Radio: 5180 - 5825 MHz
  • *Not all frequency bands can be used in all regions

Channel Bandwidth

  • 2.4G: 20 and 40 MHz
  • 5G: 20, 40 and 80 MHz

Wi-Fi and System Security

  • WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical
    data/control lockdown via digital signatures, unique security certificate and random default password per
    device

MIMO

  • 2×2:2 2.4GHz(MIMO)
  • 4×4:4 5GHz(MU-MIMO)

Maximum TX Power

  •  2.4G: 23dBm
  • 5G: 25dBm
  • *Maximum power varies by country, frequency band and MCS rate

Receiver Sensitivity

  • 2.4G
  • 802.11b: -96dBm@1Mbps, -88dBm@11Mbps;
  • 802.11g: -93dBm @6Mbps, -75dBm@54Mbps;
  • 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
  • 5G
  • 802.11a: -92dBm @6Mbps, -74dBm @54Mbps;
  • 802.11n 20MHz: -74dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7
  • 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9

SSIDs

  • 16 SSIDs total, 8 per radio (2.4GHz & 5GHz)

Concurrent Clients;

  • 200

Network Interfaces

  • 2x autosensing 10/100/1000 Base-T Ethernet Ports

Auxiliary Ports

  • 1x Reset Pinhole, 1x Kensington lock

Mounting

  • Indoor wall mount or ceiling mount, kits included

LEDs

  • 3 tri-color LEDs for device tracking and status indication

Network Protocols

  •  IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

Network Protocols

  • Protocols IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
    QoS 802.11e/WMM, VLAN, TOS

Network Management

  • Embedded controller can manage up to 30 local GWN APs
  • GWN.Cloud offers a free cloud management platform for unlimited GWN APs
  • GWN Manager offers premise-based software controller for up to 3,000 GWN APs

Power and Green Energy Efficiency

  • Supports 802.3az
  • PoE 802.3af/ 802.3at;
  • Maximum Power Consumption: <13W

Environmental

  • Operation: 0°C to 50°C
  • Storage: -10°C to 60°C

Humidity

  • 10% to 90% Non-condensing

Physical

  • Physical Unit Dimension: 205.3mm(L)x205.3mm(W)x45.9mm(H); Unit Weight: 530g
  • Entire Package Dimension: 258mm(L)x247mm(W)x86mm(H); Entire Package Weight: 897.3g

Package Content

  • Content GWN7625 802.11ac Wave-2 Wireless AP, Mounting Kits, Quick Installation Guide

Compliance

  • FCC, CE, RCM, IC, UKCA
