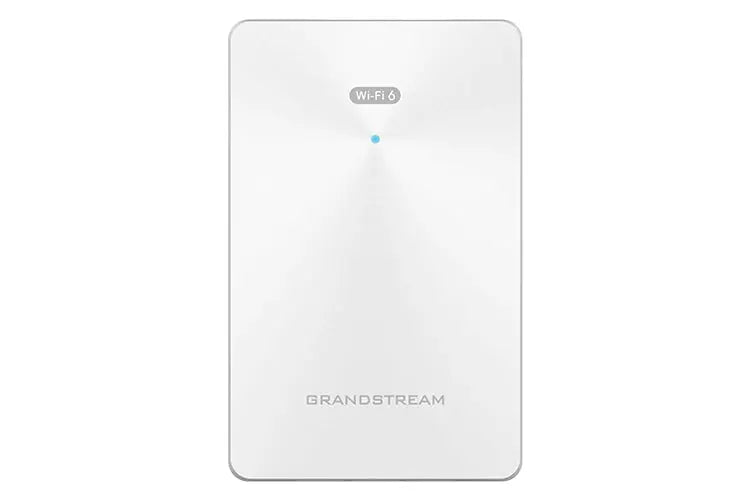

Grandstream GWN7661 In-Wall WiFi 6 Access Point
Grandstream GWN7661 In-Wall WiFi 6 Access Point
The Grandstream GWN7661 utilises 802.11ax Wi-Fi 6 technology, catering to small-to-medium businesses, offices, homes, and hotels. Equipped with dual-band 2x2:2 MU-MIMO technology and advanced antennas, it enhances network speed and coverage. It is particularly well-suited for high-density environments, ensuring consistent high-speed Wi-Fi.
Grandstream GWN7661 Key Features:
- 1.77 Gbps wireless, 4x Gigabit wired: fast connections, multiple devices.
- Dual-band MU-MIMO enhances efficiency for numerous devices.
- Handles 500+ concurrent Wi-Fi clients, ensuring seamless connectivity.
- Auto-adjusts power based on PoE, PoE+ for efficient usage.
- Advanced QoS ensures low-latency app performance.
- Secure boot, data/control protection via digital signatures, unique certificates.
- Embedded controller manages 50 local GWN APs; GWN.Cloud offers limitless AP management; GWN Manager for on-premise.
With three Gigabit network ports and an uplink Gigabit port with PoE/PoE+ support, the GWN7661 serves devices like IP phones and computers, while seamlessly blending into surroundings with its in-wall design. It employs a controller-less approach for easy installation and management, and it is compatible with GWN.Cloud and GWN Manager, making it ideal for voice-over-Wi-Fi setups.
The GWN7661 offers QoS, support for low-latency apps, mesh networks, and captive portals. It can handle 500+ concurrent clients, making it perfect for medium wireless networks. Its capabilities establish it as a reliable choice for efficient, high-performance Wi-Fi connectivity.
Grandstream GWN7661 Technical Specifications
Wi-Fi Standards
- IEEE 802.11 a/b/g/n/ac/ax
Antennas
- 4 single band internal antennas
- 2.4GHz x 2, gain 3.30dBi, gain 3.51dBi
- 5GHz x 2: gain 4.79dBi, gain 5.37dBi
Wi-Fi Data Rates
5G:
- IEEE 802.11ax: 7.3 Mbps to 1201 Mbps
- IEEE 802.11ac: 6.5 Mbps to 867 Mbps
- IEEE 802.11n: 6.5Mbps to 300Mbps
- IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
2.4G:
- IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps
- IEEE 802.11n: 6.5Mbps to 300Mbps
- IEEE 802.11b: 1, 2, 5.5, 11 Mbps
- IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands
- 2.4GHz Radio: 2412 - 2484 MHz
- 5GHz Radio: 5180 - 5825 MHz
- *Not all frequency bands can be used in all regions
Channel Bandwidth
2.4G: 20 and 40 MHz
5G: 20, 40 and 80 MHz
Wi-Fi and System Security
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO
- 2×2:2 2.4GHz
- 2×2:2 5GHz
Coverage Range
- Up to 100 meters
- *coverage range can vary based on environment
Maximum TX Power
- 2.4G: 24dBm
- 5G: 27dBm
- *Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity
- 5G
- 802.11a: -92dBm @6Mbps, -74dBm @54Mbps;
- 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7;
- 802.11ac 20MHz: -67dBm@MCS8; 802.11ac 40MHz:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9;
- 802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11; 802.11ax 80MHz: -56dBm @MCS11
- 2.4G
- 802.11b: -96dBm@1Mbps, -88dBm@11Mbps;
- 802.11g: -93dBm @6Mbps, -75dBm@54Mbps;
- 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
- 802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11
SSIDs
- 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Clients
- Up to 500+
Network Interfaces
- 1x 10/100/1000M uplink Ethernet port with PoE/PoE+
- 2x 10/100/1000M Ethernet ports with PSE
- 1x 10/100/1000M Ethernet port
Auxiliary Ports
- 1x Reset Pinhole
Mounting
- In-wall mountable
LEDs
- 1 tri-color LED for device tracking and status indication
Network Protocols
- IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
- 802.11e/WMM, VLAN, TOS
Network Management
- Embedded controller can manage up to 50 local GWN APs
- GWN.Cloud offers a free cloud management platform for unlimited GWN APs
- GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency
- Support 802.3az
- PoE 802.3af/ 802.3at;
- PSE Maximum Output Per Port: 6W; Maximum Power Consumption: 25W
Environmental
- Operation: -10°C to 50°C
- Storage: -30°C to 60°C
- Humidity: 5% to 95% Non-condensing
Physical Unit
- Dimension: 135mm(L)x86mm(W)x38.5mm(H); Unit Weight: 185g
Entire Package
- Dimension: 176mm(L)x118.5mm(W)x65mm(H); Entire Package Weight: 400g
Package Content
- GWN7661 Wi-Fi 6 In-Wall Wireless AP
- Mounting Kits
- Quick Installation Guide
Compliance
- FCC, CE, RCM, IC, UKCA
