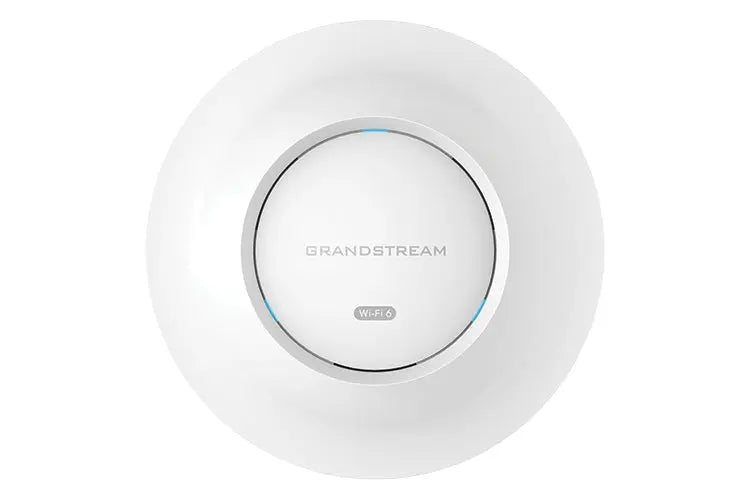

Grandstream GWN7662 Indoor WiFi 6 Access Point
Grandstream GWN7662 Indoor WiFi 6 Access Point
The Grandstream GWN7662 access point is an advanced 802.11ax Wi-Fi 6 solution designed for small to medium-sized businesses, retail, hospitality, and education. It employs 4x4 MU-MIMO on the 5G band and 2x2 MU-MIMO on the 2.4G band, enhancing network speed and coverage for crowded environments.
Grandstream GWN7662 Key Features:
- 5.38 Gbps wireless, 3.5 Gigabit wired speed
- 5GHz 4x4 MU-MIMO with DL/UL OFDMA
- Up to 175m coverage range
- Supports 256 Wi-Fi clients concurrently
- Advanced QoS for low-latency app performance
- Anti-hacking secure boot, data lockdown via signatures
- Self power adaptation for PoE/PoE+ detection
- Embedded controller manages 50 local GWN APs; GWN.Cloud offers unlimited AP management; GWN Manager has premise-based software control.
Its installation and management are streamlined through a controller-less approach with an embedded controller in the web interface. Compatibility with GWN.Cloud and GWN Manager offers versatile cloud-based and on-premise Wi-Fi management. Notably, it seamlessly integrates with Grandstream's Wi-Fi IP phones for reliable voice-over-Wi-Fi setups.
The GWN7662 supports advanced QoS, low-latency applications, mesh networking, and accommodates up to 256 clients per access point. With dual Gigabit network ports and PoE/PoE+ support, it's an ideal choice for medium-sized wireless networks requiring solid performance.
Grandstream GWN7662 Technical Specifications
Wi-Fi Standards
- IEEE 802.11 a/b/g/n/ac(Wave-2)/ax
Antennas
- 6 single frequency internal antennas
- 2.4GHz: 3.65dBi
- 5GHz: 5.26dBi
Wi-Fi Data Rates
- 5G:
- IEEE 802.11ax: 8.6Mbps to 4804Mbps
- IEEE 802.11ac: 6.5 Mbps to 3464 Mbps
- IEEE 802.11n: 6.5Mbps to 600Mbps
- IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 2.4G:
- IEEE 802.11ax: 8.6Mbps to 573.5Mbps
- IEEE 802.11n: 6.5Mbps to 300Mbps
- IEEE 802.11b: 1, 2, 5.5, 11 Mbps
- IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Frequency Bands
- 2.4GHz Radio: 2412 - 2484 MHz (WIFI)
- 5GHz Radio: 5180 - 5825 MHz
- *Not all frequency bands can be used in all regions
Channel Bandwidth
- 2.4G: 20 and 40 MHz
- 5G: 20, 40, 80 and 160MHz
Wi-Fi and System Security
- WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO
- 2×2:2 2.4GHz (MU-MIMO)
- 4×4:4 5GHz (MU-MIMO)
Coverage Range
- Up to 175 meters
- *Coverage range can vary based on environment
Maximum TX Power
- 2.4G: 25dBm
- 5G: 27dBm
- *Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity
- 2.4G:
- 802.11b: -96dBm@1Mbps, -88dBm@11Mbps;
- 802.11g: -93dBm @6Mbps, -75dBm@54Mbps;
- 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7;
- 802.11ax 20MHz: -60dBm @ MCS11; 802.11ax 40MHz: -58dBm @MCS11
- 5G:
- 802.11a: -92dBm @6Mbps, -74dBm @54Mbps;
- 802.11n 20MHz: -74dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7;
- 802.11ac 20MHz: -67dBm@MCS8; 802.11ac HT40:- 63dBm @MCS9;
- 802.11ac 80MHz: -59dBm @MCS9; 802.11ax 20MHz: -60dBm @MCS11;
- 802.11ax 40MHz: -58dBm @MCS11; 802.11ax 80MHz: -56dBm @MCS11
SSIDs
- 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Clients
- 256
Network Interfaces
- 1x autosensing 10/100/1000 Base-T Ethernet Port
- 1x autosensing 10/100/1000/2500 Base-T Ethernet Port
Auxiliary Ports
- 1x Reset Pinhole
- 1x Kensington lock
Mounting
- Indoor wall mount or ceiling mount, kits included
LEDs
- 3 tri-color LEDs for device tracking and status indication
Network Protocols
- IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
- 802.11e/WMM, VLAN, TOS
Network Management
- Embedded controller manages up to 50 local GWN APs
- GWN.Cloud offers free cloud management for unlimited GWN APs
- GWN Manager provides premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency
- Supports 802.3az PoE 802.3af/ 802.3at;
- Maximum Power Consumption: 16W
Environmental
- Operation: -10°C to 45°C
- Storage: -30°C to 60°C
- Humidity: 5% to 95% Non-condensing
Physical Unit
- Dimension: 205.3mm(L)x205.3mm(W)x45.9mm(H);
- Unit Weight: 540g
Entire Package
- Dimension: 258mm(L)x247mm(W)x86mm(H);
- Entire Package Weight: 910g
Package Content
- GWN7662 indoor Wi-Fi 6 Wireless AP
- Mounting Kits
- Quick Installation Guide
Compliance
- FCC, CE, RCM, IC, UKCA
