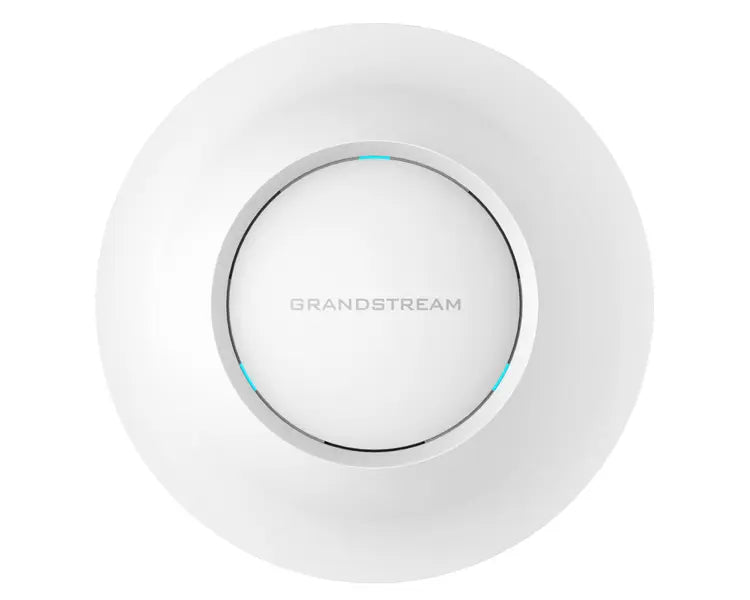

Grandstream GWN7615 802.11ac Wave-2 Enterprise WiFi Access Point
Grandstream GWN7615 802.11ac Wave-2 Enterprise WiFi Access Point
The Grandstream GWN7615 is an enterprise performance 802.11ac Wave-2 WiFi access point to create scalability for medium to high user density environments. It offers dual-band 3×3:3 MU-MIMO technology and a sophisticated antenna design for maximum network throughput and expanded WiFi coverage range. To ensure easy installation and management, the GWN7615 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface.
Grandstream GWN7615 Key Features
- 1.75Gbps aggregate wireless throughput and 2x Gigabit wireline ports
- Dual-band 3x3:3 MU-MIMO technology
- Self power adaptation upon auto detection of PoE or PoE+
- Support 200+ concurrent WiFi client devices
- Up to 175-meter coverage range
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premisebased software controller
The GWN7615 is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise WiFi management platforms. It is the ideal WiFi AP for voice-over WiFi deployments and offers a seamless connection with Grandstream’s WiFi-capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 200+ concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, the GWN7615 can be used to create a scalable solution as big or small as needed for the deployment scenario, from office buildings to retail locations, hotels and more.
WiFi Standards
- IEEE 802.11 a/b/g/n/ac (Wave-2)
Antennas
- 3 dual band internal antennas
- 2.4GHz, gain 3dBi
- 5 GHz, gain 3dBi
WiFi Data Rates
- IEEE 802.11ac: 6.5 Mbps to 1300Mbps
- IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- IEEE 802.11n: 6.5 Mbps to 450 Mbps
- IEEE 802.11b: 1, 2, 5.5, 11Mbps
- IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands
- 2.4 GHz Radio: 2412 – 2484 MHz
- 5 GHz Radio: 5180-5825 MHz
Channel Bandwidth
- 2.4G: 20 and 40MHz
- 5G: 20, 40, and 80MHz
WiFi and System Security
- WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO
- 3×3:3 2.4G(MIMO)
- 3×3:3 5G(MU-MIMO)
Coverage Range
- Up to 175 meters
- *coverage range can vary based on the environment
Maximum TX Power
- 2.4G: 26 dBm
- 5G: 24 dBm
- *Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity
- 2.4G: 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
- 5G: 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9
SSIDs
- 16 SSIDs per access point
Concurrent clients
- 200+
Network Interfaces
- 2x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports
- 1x Reset Pinhole, 1x Kensington lock
Mounting
- Indoor wall or ceiling mount, kits included
LEDs
- 3 x tri-color LEDs for device tracking and status indication
Network Protocols
- IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
- 802.11e/WMM, VLAN, TOS
Network Management
- Embedded controller can manage up to 50 local GWN APs
- GWN.Cloud offers a free cloud management platform for unlimited GWN APs
- GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency
- PoE 802.3af/ 802.3at;
- Max Consumption: 12.5W
Environmental
- Operation: 0°C to 40°C
- Storage: -10°C to 60°C
- Humidity: 10% to 90% Non-condensing
Physical
- Unit Dimension: 205.4 x 205.4 x 45.9mm;
- Unit Weight: 500g
- Entire Package Dimension: 258 x 247 x 86mm;
- Entire Package Weight: 867.3g
Package Content
- GWN7615 802.11ac Wireless AP, Mounting Kits, Quick Start Guide
Compliance
- FCC, CE, RCM, IC
Grandstream GWN7615 802.11ac Wave-2 Enterprise WiFi Access Point
The Grandstream GWN7615 is an enterprise performance 802.11ac Wave-2 WiFi access point to create scalability for medium to high user density environments. It offers dual-band 3×3:3 MU-MIMO technology and a sophisticated antenna design for maximum network throughput and expanded WiFi coverage range. To ensure easy installation and management, the GWN7615 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface.
Grandstream GWN7615 Key Features
- 1.75Gbps aggregate wireless throughput and 2x Gigabit wireline ports
- Dual-band 3x3:3 MU-MIMO technology
- Self power adaptation upon auto detection of PoE or PoE+
- Support 200+ concurrent WiFi client devices
- Up to 175-meter coverage range
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premisebased software controller
The GWN7615 is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise WiFi management platforms. It is the ideal WiFi AP for voice-over WiFi deployments and offers a seamless connection with Grandstream’s WiFi-capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 200+ concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, the GWN7615 can be used to create a scalable solution as big or small as needed for the deployment scenario, from office buildings to retail locations, hotels and more.
Grandstream GWN7615 Technical SpecificationWiFi Standards
- IEEE 802.11 a/b/g/n/ac (Wave-2)
Antennas
- 3 dual band internal antennas
- 2.4GHz, gain 3dBi
- 5 GHz, gain 3dBi
WiFi Data Rates
- IEEE 802.11ac: 6.5 Mbps to 1300Mbps
- IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- IEEE 802.11n: 6.5 Mbps to 450 Mbps
- IEEE 802.11b: 1, 2, 5.5, 11Mbps
- IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands
- 2.4 GHz Radio: 2412 – 2484 MHz
- 5 GHz Radio: 5180-5825 MHz
Channel Bandwidth
- 2.4G: 20 and 40MHz
- 5G: 20, 40, and 80MHz
WiFi and System Security
- WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO
- 3×3:3 2.4G(MIMO)
- 3×3:3 5G(MU-MIMO)
Coverage Range
- Up to 175 meters
- *coverage range can vary based on the environment
Maximum TX Power
- 2.4G: 26 dBm
- 5G: 24 dBm
- *Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity
- 2.4G: 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
- 5G: 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9
SSIDs
- 16 SSIDs per access point
Concurrent clients
- 200+
Network Interfaces
- 2x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports
- 1x Reset Pinhole, 1x Kensington lock
Mounting
- Indoor wall or ceiling mount, kits included
LEDs
- 3 x tri-color LEDs for device tracking and status indication
Network Protocols
- IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
- 802.11e/WMM, VLAN, TOS
Network Management
- Embedded controller can manage up to 50 local GWN APs
- GWN.Cloud offers a free cloud management platform for unlimited GWN APs
- GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency
- PoE 802.3af/ 802.3at;
- Max Consumption: 12.5W
Environmental
- Operation: 0°C to 40°C
- Storage: -10°C to 60°C
- Humidity: 10% to 90% Non-condensing
Physical
- Unit Dimension: 205.4 x 205.4 x 45.9mm;
- Unit Weight: 500g
- Entire Package Dimension: 258 x 247 x 86mm;
- Entire Package Weight: 867.3g
Package Content
- GWN7615 802.11ac Wireless AP, Mounting Kits, Quick Start Guide
Compliance
- FCC, CE, RCM, IC
