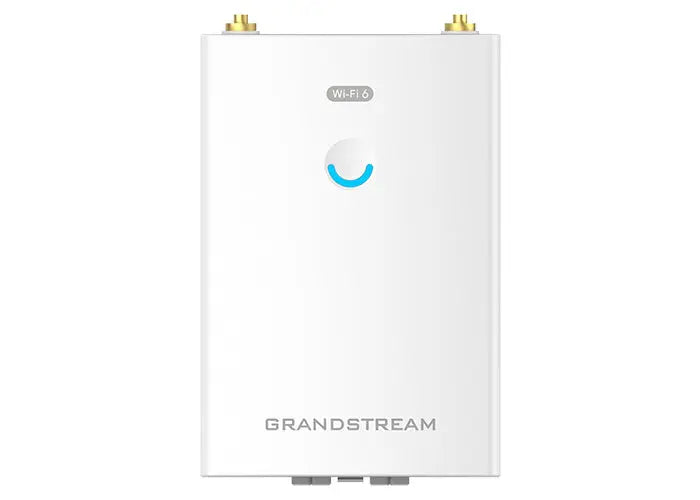

Grandstream GWN7660LR Wi-Fi 6 Long Range Access Point
Grandstream GWN7660LR Wi-Fi 6 Long Range Access Point
The Grandstream GWN7660LR is a long-range 802.11ax Wi-Fi 6 access point designed to provide next generation network coverage for indoor and outdoor environments. It offers IP66 weatherproof certified casing, dual-band 2x2:2 MU-MIMO technology and a sophisticated antenna design for extended coverage range of up to 250 meters.
The GWN7660LR is supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform that and makes managing your network or several networks across multiple locations easier than ever before. It also uses a controllerless network management architecture in which the controller is embedded within the product’s web user interface for easy administration of locally deployed Wi-Fi APs.
The GWN7660LR is the ideal Wi-Fi AP for voice-over-Wi-Fi deployment and offers a seamless connection with Grandstream’s Wi-Fi capable voice and video IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals and dual Gigabit networks ports with PoE/PoE+; the GWN7660LR is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, parks, hospitals, schools and more.
Grandstream GWN7660LR Key Features
- 1.77Gbps aggregate wireless throughput and 2x Gigabit Ethernet ports
- Dual-band 2×2:2 MU- MIMO with DL/UL OFDMA technology
- Self power adaptation upon auto detection of PoE or PoE+
- Support 256+ concurrent Wi-Fi client devices
- Up to 250-meter coverage range
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown
- Flexibility of 2 detachable/changeable antennas for different application scenarios
- Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management
WiFi Standards
- IEEE 802.11 a/b/g/n/ac/ax
Antennas
- 2 dual band internal antennas
- 2.4GHz, gain 3dBi / 5 GHz, gain 4dBi
WiFi Data Rates
- 5G:
- IEEE 802.11ax: 7.3 Mbps to 1201 Mbps;
- IEEE 802.11ac: 6.5 Mbps to 867 Mbps;
- IEEE 802.11n: 6.5Mbps to 300Mbps;
- IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps - 2.4G:
- IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps;
- IEEE 802.11n: 6.5Mbps to 300Mbps;
- IEEE 802.11b: 1, 2, 5.5, 11 Mbps;
- IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps - *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands
- 2.4GHz radio: 2400-2483.5MHz
- 5GHz radio: 5150-5850MHz
Channel Bandwidth
- 2.4G: 20 and 40 MHz
- 5G: 20, 40 and 80 MHz
WiFi and System Security
- WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO
- 2x2:2 2.4GHz
- 2x2:2 5GHz
Coverage Range
- Up to 250 meters
- *coverage range can vary based on the environment
Maximum TX Power
- 5G: 26dBm
- 2.4G: 30dBm
- *Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity
- 2.4G:
- 802.11b: -99dBm@1Mbps, -90dBm@11Mbps;
- 802.11g: -93dBm @6Mbps, -77dBm@54Mbps;
- 802.11n 20MHz: -74dBm @MCS7; 802.11n 40MHz:-72dBm @MCS7;
- 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -62dBm @MCS11 - 5G:
- 802.11a: -95dBm @6Mbps, -77dBm @54Mbps;
- 802.11ac 20MHz: -71dBm@MCS8; 802.11ac: HT40:- 67dBm @MCS9; 802.11ac 80MHz: -64dBm @ MCS9;
- 802.11ax 20MHz: -63dBm @ MCS11; 802.11ax 40MHz: -62dBm @MCS11;802.11ax 80MHz: -58dBm @MCS11
SSIDs
- 32 SSIDs total, 16 per radio (2.4ghz and 5 ghz)
Concurrent clients
- 256+
Network Interfaces
- 2x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports
- 1x Reset Pinhole
Mounting
- Outdoor wall mount or pole mount, kits included
LEDs
- 1x tri-color LEDs for device tracking and status indication
Network Protocols
- IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
- 802.11e/WMM, VLAN, TOS
Network Management
- Embedded controller can manage up to 50 local GWN APs
- GWN.Cloud offers a free cloud management platform for unlimited GWN APs
- GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency
- PoE 802.3af/ 802.3at;
- Maximum Power Consumption: 12.9W
Environmental
- Operation: -30°C to 60°C
- Storage: -30°C to 70°C
- Humidity: 5% to 95% Non-condensing
Physical
- Unit Dimension: 358.3mmx115mmx45.3mm; Unit Weight: 695g
- Entire Package Dimension: 275x185.5x89mm; Entire Package Weight: 995g
Package Content
- GWN7660LR 802.11ax Wireless AP, Mounting Kits, Quick Start Guide
Compliance
- FCC, CE, RCM, IC
