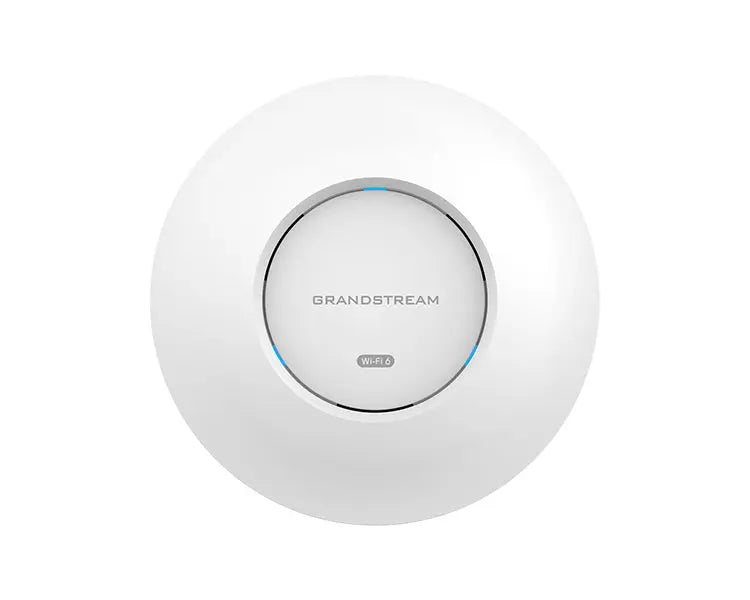

Grandstream GWN7660 Wi-Fi 6 Access Point
Grandstream GWN7660 Wi-Fi 6 Access Point
The Grandstream GWN7660 is an enterprise-grade 802.11ax Wi-Fi 6 access point that allows businesses to build next-generation Wi-Fi networks for high-density environments. It offers dual-band 2x2:2 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7660 uses a controller-less distributed network management design in which the controller is embedded within the product’s Web user interface.
Grandstream GWN7660 Key Features
- 1.77Gbps aggregate wireless throughput and 2x Gigabit Ethernet ports
- Dual-band 2x2:2 MUMIMO with DL/UL OFDMA technology
- Up to 175-meter coverage range
- Supports 256 concurrent Wi-Fi client devices
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Self-power adaptation upon auto detection of PoE or PoE+
- Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premise based software controller
The GWN7660 is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voiceover-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 256 concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, GWN7660 is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density.
WiFi Standards
- IEEE 802.11 a/b/g/n/ac/ax
Antennas
- 2 dual band internal antennas
- 2.4GHz, gain 3dBi / 5 GHz, gain 4dBi
WiFi Data Rates
- 5G:
- IEEE 802.11ax: 7.3 Mbps to 1201 Mbps;
- IEEE 802.11ac: 6.5 Mbps to 867 Mbps;
- IEEE 802.11n: 6.5Mbps to 300Mbps;
- IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps - 2.4G:
- IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps;
- IEEE 802.11n: 6.5Mbps to 300Mbps;
- IEEE 802.11b: 1, 2, 5.5, 11 Mbps;
- IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps - *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands
- 2.4GHz radio: 2400-2483.5MHz
- 5GHz radio: 5150-5850MHz
Channel Bandwidth
- 2.4G: 20 and 40 MHz
- 5G: 20,40 and 80 MHz
WiFi and System Security
- WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO
- 2x2:2 2.4GHz
- 2x2:2 5GHz
Coverage Range
- Up to 175 meters
- *coverage range can vary based on the environment
Maximum TX Power
- 5G: 22dBm
- 2.4G: 24dBm
- *Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity
- 2.4G:
- 802.11b: -96dBm@1Mbps, -88dBm@11Mbps;
- 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7;
- 802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11; - 5G:
- 802.11a: -92dBm @6Mbps, -74dBm @54Mbps;
- 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7;
- 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: 40MHz: -63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9 ;
- 802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11;802.11ax 80MHz: -56dBm @ MCS11
SSIDs
- 32 SSIDs total, 16 per radio (2.4ghz and 5 ghz)
Concurrent clients
- 256
Network Interfaces
- 2x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports
- 1x Reset Pinhole, 1x Kensington lock
Mounting
- Indoor wall mount or ceiling mount, kits included
LEDs
- 3 tri-color LEDs for device tracking and status indication
Network Protocols
- IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
- 802.11e/WMM, VLAN, TOS
Network Management
- Embedded controller can manage up to 50 local GWN APs
- GWN.Cloud offers a free cloud management platform for unlimited GWN APs
- GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency
- PoE 802.3af/ 802.3at;
- Maximum Power Consumption: 9W
Environmental
- Operation: 0°C to 45°C
- Storage: -10°C to 60°C
- Humidity: 10% to 90% Non-condensing
Physical
- Unit Dimension: 180.4mmx180.4mmx40.8mm; Unit Weight: 443g
- Entire Package Dimension: 228.5x220x79mm; Entire Package Weight: 774g
Package Content
- GWN7660 802.11ax Wireless AP, Mounting Kits, Quick Start Guide
Compliance
- FCC, CE, RCM, IC
