Grandstream GWN7630LR Outdoor Long-Range WiFi Access Poin

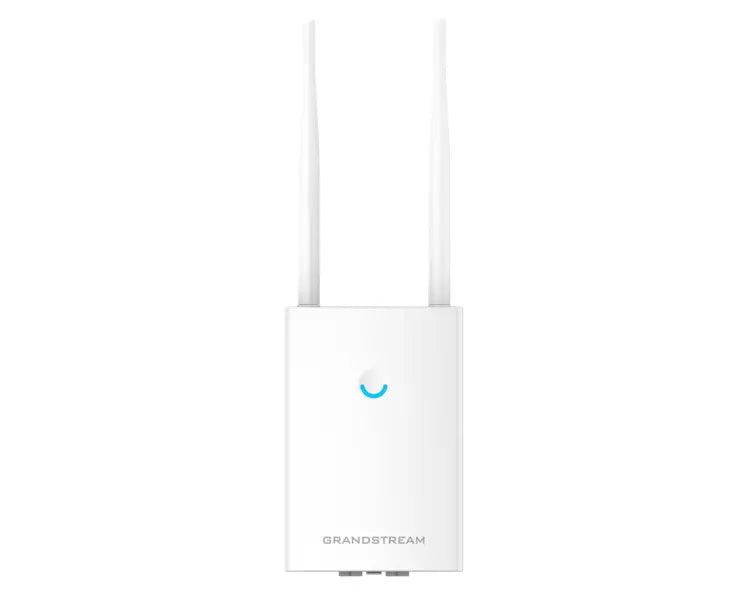

Grandstream GWN7630LR Outdoor Long-Range WiFi Access Point
The Grandstream GWN7630LR is an outdoor long-range 802.11ac Wave-2 WiFi access point for medium to large businesses and enterprises who need to provide long-range coverage in both indoor and outdoor spaces. It offers weatherproof casing and heat resistant technology, dual-band 4×4:4 MU-MIMO technology, and a sophisticated antenna design for maximum network throughput that supports 200+ clients and an expanded 300-meter coverage range.
Grandstream GWN7630LR Key Features
- 2.33Gbps wireless throughput and 2x Gigabit wireline ports
- Dual-band 4x4:4 MIMO technology
- Self power adaptation upon auto detection of PoE/PoE+
- Support 200+ concurrent Wi-Fi client devices
- Up to 300-meter coverage range
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown
- Flexibilty of detachable/ changeable antenna for different application scenarios
- Embedded controller can manage up to 50 local GWN series APs; GWN. Cloud offers unlimited AP management
To ensure easy installation and management, the GWN7630LR includes a built-in controller embedded within the product’s web user interface. It is also supported by GWN.Cloud, Grandstream’s free cloud WiFi management platform. The GWN7630LR is the ideal WiFi AP for voice-over-WiFi deployments and offers a seamless connection with Grandstream’s WiFi-capable voice and video IP phones. By including support for advanced QoS, low-latency real-time applications, mesh networks and captive portals, the GWN7630LR is an ideal outdoor WiFi access point for enterprises, multiple floor offices, warehouses, hospitals, schools and more.
WiFi Standards
- IEEE 802.11a/b/g/n/ac (Wave-2)
Antennas
- 4 detachable/changeable dual-band omnidirectional antennas
- 2.4GHz, gain 3.5dBi
- 5GHz, gain 3.5dBi
WiFi Data Rates
- IEEE 802.11ac: 6.5 Mbps to 1733Mbps
- IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- IEEE 802.11n: 6.5Mbps to 600Mbps
- IEEE 802.11b: 1, 2, 5.5, 11Mbps
- IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Frequency Bands
- 2.4 GHz Radio: 2412 – 2484 MHz
- 5GHz Radio: 5150-5250MHz, 5250-5350MHz, 5470-5725MHz, 5725-5850MHz
Channel Bandwidth
- 2.4G: 20 and 40MHz
- 5G: 20, 40 and 80MHz
System Security
- WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO
- 4x4:4 2.4G (MIMO)
- 4x4:4 5G (MU-MIMO)
Coverage Range
- Up to 300 meters
Maximum TX Power
- 2.4G: 27 dBm
- 5G: 25 dBm
Receiver Sensitivity
- 2.4G: 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
- 5G: 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9
SSIDs
- 16 SSID per radio
Concurrent clients
- 200+
Network Interfaces
- 2x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports
- 1× Reset Pinhole
Mounting
- Wall mount or pole mount - kits included
LEDs
- 1x tri-colour LEDs for device tracking and status indication
Network Protocols
- IPv4/IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
- 802.11e/WMM, VLAN, TOS
Network Management
- Embedded controller can manage up to 50 local GWN APs
- GWN.Cloud offers a free cloud management platform for unlimited GWN APs
- GWN.Manager (coming soon) offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency
- PoE 802.3af/ 802.3at
- Max Consumption: 16.5W
Environmental
- Operation: -30°C to 60°C
- Storage: -30°C to 70°C
- Humidity: 5% to 95% Non-condensing
Physical
- Unit Dimension: 533.1 × 115 × 40mm
- Unit Weight: 564g
- Unit + Mounting Kits Dimension: 533.1×115 ×62mm
- Unit + Mounting Kits Weight: 706g
- Entire Package Dimension: 258 × 247× 86mm
- Entire Package Weight: 978g
Package Content
- GWN7630LR 802.11ac Wireless AP
- Mounting Kits
- Quick Start Guide
Weatherproof Grade
- IP66-level weatherproof capability when installed vertically
Compliance
- FCC, CE, RCM, IC
