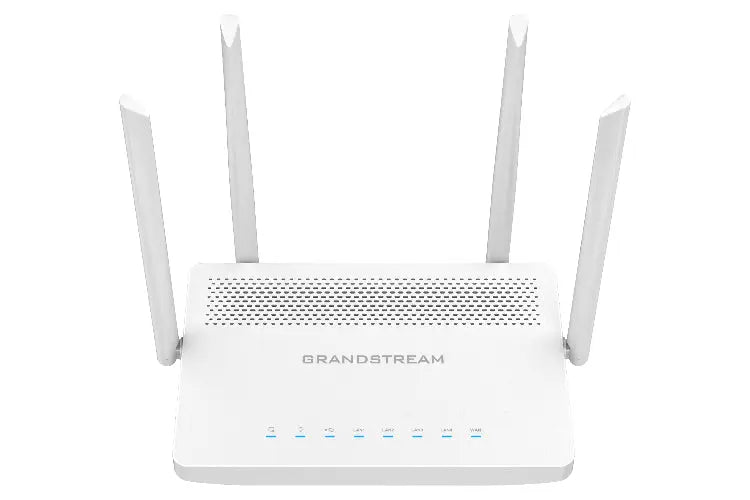

Grandstream GWN7052F Dual-Band Wi-Fi Router
![Grandstream GWN7052F Dual-Band Wi-Fi Router]()
![Grandstream GWN7052F Dual-Band Wi-Fi Router]()
Grandstream GWN7052F Dual-Band Wi-Fi Router
Available:In Stock
£62.76
Grandstream GWN7052F Dual-Band Wi-Fi Router
The Grandstream GWN7052F is a secure router with dual-band 802.11ac Wi-Fi, perfect for small offices and remote workers. It supports wireless Mesh networking and wired AP connections, offering 2x2 MU-MIMO on both bands..
Grandstream GWN7052F Key Features
- 1.27Gbps aggregate wireless throughput with 5x auto-sensing Gigabit ports
- Dual-band 2x2:2 MU-MIMO
- Built-in VPN support allows easy access to corporate networks for remote employees
- Supports 100 concurrent Wi-Fi client devices
- Supports Mesh networking with Grandstream access points to provide easy network expansion
- Powerful security features include guest network, network blacklist, Antihacking secure boot & critical data/control lockdown via digital signatures, and more
- Rich firewall features including Anti-DoS, traffic rules, NAT and ALG
- Secure cloud provisioning through GWN.Cloud
- 1x Gigabit SFP WAN port, 4x Gigabit Ethernet ports (WAN/LAN configurable)
For security, it includes VPN support and unique security certificates. The built-in controller makes setup easy, and it will soon be compatible with GWN.Cloud for cloud-based management..
With accelerated Wi-Fi, mesh networking, wired AP support, and strong security, the GWN7052F is an excellent router for growing home and small business networks..
Grandstream GWN7052F Technical Specification
Memory and NAT Sessions
- 256MB RAM, 60K NAT sessions
NAT Routing & IPSec VPN Performance
- 1Gbps NAT routing
- 300Mbps IPSec VPN performance
Wi-Fi Standards
- IEEE 802.11 a/b/g/n/ac
Antennas
- 4 individual external antennas, 2 per band
- 2.4GHz, gain 5.0dBi
- 5 GHz, gain 5.0dBi
Wi-Fi Data Rates
- 5G:
- IEEE 802.11ac: 6.5 Mbps to 867 Mbps
- IEEE 802.11n: 6.5 Mbps to 300 Mbps
- IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 2.4G:
- IEEE 802.11n: 6.5 Mbps to 300 Mbps
- IEEE 802.11b: 1, 2, 5.5, 11 Mbps
- IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands
- 2.4GHz radio: 2400 – 2483.5MHz
- 5GHz radio: 5150 - 5850MHz
- *Not all frequency bands can be used in all regions
Channel Bandwidth
- 2.4G: 20 and 40 MHz
- 5G: 20, 40 and 80 MHz
Wi-Fi and System Security
- WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO
- 2×2:2 2.4GHz (MIMO)
- 2×2:2 5GHz (MU-MIMO)
Maximum TX Power
- 2.4G: 23dBm
- 5G: 24dBm
- *Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity
- 2.4G:
- 802.11b: -96dBm@1Mbps, -88dBm@11Mbps;
- 802.11g: -93dBm @6Mbps, -75dBm@54Mbps;
- 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7;
- 5G:
- 802.11a: -92dBm @6Mbps, -74dBm @54Mbps;
- 802.11n: 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7
- 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40: -63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9;
SSIDs
- 16 SSIDs total, 8 per radio (2.4ghz and 5 ghz)
Concurrent Clients
- Up to 100 concurrent clients
Network Interfaces
- 1x Gigabit SFP WAN port, 4x Gigabit Ethernet ports (WAN/LAN configurable)
Auxiliary Ports
- 1x USB 2.0 port, 1x Reset Pinhole
Mounting
- Desktop and wall mounting
LEDs
- 1 tri-color LED and 7x single-color LEDs for device tracking and status indication
Network Protocols
- IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
- 802.11e/WMM, VLAN, TOS
Firewall
- DDNS, Port Forwarding, DMZ, UPnP, Anti-DoS, traffic rules, NAT, ALG
VPN
- Client: L2TP, PPTP, IPSec,
- Server: IPSec, OpenVPN
Network Management
- GWN7052F embedded controller can manage itself and up to 50 GWN APs; GWN.Cloud offers a free cloud management platform for unlimited GWN7052F routers and GWN APs (coming soon)
Power & Green Energy Efficiency
- Universal power adaptor included:
- Input 100-240VAC 50-60Hz
- Output: 12VDC 1A (12W);
Environmental
- Operation: 0°Cto 50°C
- Storage: -10°C to 60°C
- Humidity: 10% to 90% Non-condensing
Physical
- Unit Dimension without antennas: 205mm(L)x130mm(W)x35.5mm(H);
- Unit Dimension with antennas of 90°: 235.5mm(L)x145mm(W)x192mm(H); Unit Weight: 375g
- Entire Package Dimension: 250mm(L)x251.5mm(W)x56mm(H); Entire Package Weight: 740g
Package Content
- GWN7052F Router
- Universal Power Supply
- Network Cable
- Quick Installation Guide
Compliance
- FCC
- CE
- RCM
- IC
- UKCA
