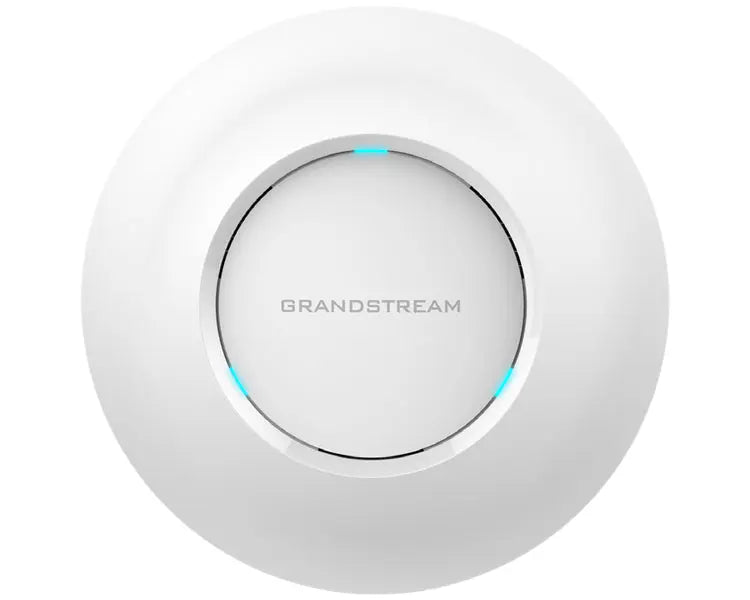

Grandstream Enterprise Wi-Fi Access Point (GWN7630)
- Category:Best selling products,Grandstream Access Points,Grandstream VoIP Phone Accessories,New products,VoIP Accessories
Grandstream Enterprise Wi-Fi Access Point (GWN7630)
The Grandstream GWN7630 is a high-performance 802.11ac Wave-2 Wi-Fi access point for small to medium sized businesses, multiple floor offices, commercial locations and branch offices. It offers dual-band 4×4:4 MU-MIMO technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range.
Grandstream GWN7630 Key Features
- 2.33 Gbps wireless throughput and 2 Gigabit wireline ports
- Dual-band 4×4:4 MU-MIMO technology
- Self power adaptation upon auto detection of PoE or PoE+
- Support 200+ concurrent Wi-Fi client devices
- Up to 175-meter coverage range
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management
To ensure easy installation and management, the GWN7630 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. The GWN7630 is also supported by GWN.Cloud, Grandstream’s free cloud Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi-capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 200+ concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, the GWN7630 is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density.
WiFi Standards
- IEEE 802.11 a/b/g/n/ac (Wave-2)
Antennas
- 4 dual band internal antennas
- 2.4GHz, gain 4dBi
- 5 GHz, gain 5dBi
WiFi Data Rates
- IEEE 802.11ac: 6.5 Mbps to 1733Mbps
- IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- IEEE 802.11n: 6.5Mbps to 600Mbps
- IEEE 802.11b: 1, 2, 5.5, 11 Mbps
- IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- *Actual throughput may vary depending on many factors including environmental conditions, the distance between
devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands
- 2.4GHz radio: 2412 - 2484 MHz
- 5GHz radio: 5180 - 5825 MHz
Channel Bandwidth
- 2.4G: 20 and 40 MHz
- 5G: 20,40 and 80 MHz
WiFi and System Security
- WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO
- 4×4:4 2.4G(MIMO)
- 4×4:4 5G(MU-MIMO)
Coverage Range
- Up to 175 meters
- *coverage range can vary based on the environment
Maximum TX Power
- 2.4G: 27 dBm
- 5G: 25 dBm
- *Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity
- 2.4G: 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
- 5G: 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9
SSIDs
- 15 SSIDs per access point
Concurrent clients
- 200+
Network Interfaces
- 2x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports
- 1x Reset Pinhole, 1x Kensington lock
Mounting
- Indoor wall mount or ceiling mount, kits included
LEDs
- 3 tri-color LEDs for device tracking and status indication
Network Protocols
- IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
- 802.11e/WMM, VLAN, TOS
Network Management
-
≤ 50 APs: Light-weight Master in AP
-
≥ 50 APs: Cloud management (GWN.Cloud)
Power and Green Energy Efficiency
- Support 802.3 az ;
- POE 802.3af/ 802.3at;
- Max Consumption: 16.5W
Environmental
- Operation: 0°C to 40°C
- Storage: -10°C to 60°C
- Humidity: 10% to 90% Non-condensing
Physical
- Unit Dimension: 205.3 x 205.3 x 45.9mm; Unit Weight: 590g
- Unit + Mounting Kits Dimension : 205.3 x 205.3 x 50.9mm; Unit + Mounting Kits Weight : 710g
- Entire Package Dimension: 258 x 247 x 86mm; Entire Package Weight: 930g
Package Content
- GWN7630 802.11ac Wave-2 Wireless AP, Mounting Kits, Quick Start Guide
Compliance
- FCC, CE, RCM, IC
Grandstream Enterprise Wi-Fi Access Point (GWN7630)
The Grandstream GWN7630 is a high-performance 802.11ac Wave-2 Wi-Fi access point for small to medium sized businesses, multiple floor offices, commercial locations and branch offices. It offers dual-band 4×4:4 MU-MIMO technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range.
Grandstream GWN7630 Key Features
- 2.33 Gbps wireless throughput and 2 Gigabit wireline ports
- Dual-band 4×4:4 MU-MIMO technology
- Self power adaptation upon auto detection of PoE or PoE+
- Support 200+ concurrent Wi-Fi client devices
- Up to 175-meter coverage range
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management
To ensure easy installation and management, the GWN7630 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. The GWN7630 is also supported by GWN.Cloud, Grandstream’s free cloud Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi-capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 200+ concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, the GWN7630 is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density.
Grandstream GWN7630 Technical SpecificationWiFi Standards
- IEEE 802.11 a/b/g/n/ac (Wave-2)
Antennas
- 4 dual band internal antennas
- 2.4GHz, gain 4dBi
- 5 GHz, gain 5dBi
WiFi Data Rates
- IEEE 802.11ac: 6.5 Mbps to 1733Mbps
- IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- IEEE 802.11n: 6.5Mbps to 600Mbps
- IEEE 802.11b: 1, 2, 5.5, 11 Mbps
- IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- *Actual throughput may vary depending on many factors including environmental conditions, the distance between
devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands
- 2.4GHz radio: 2412 - 2484 MHz
- 5GHz radio: 5180 - 5825 MHz
Channel Bandwidth
- 2.4G: 20 and 40 MHz
- 5G: 20,40 and 80 MHz
WiFi and System Security
- WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO
- 4×4:4 2.4G(MIMO)
- 4×4:4 5G(MU-MIMO)
Coverage Range
- Up to 175 meters
- *coverage range can vary based on the environment
Maximum TX Power
- 2.4G: 27 dBm
- 5G: 25 dBm
- *Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity
- 2.4G: 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
- 5G: 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9
SSIDs
- 15 SSIDs per access point
Concurrent clients
- 200+
Network Interfaces
- 2x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports
- 1x Reset Pinhole, 1x Kensington lock
Mounting
- Indoor wall mount or ceiling mount, kits included
LEDs
- 3 tri-color LEDs for device tracking and status indication
Network Protocols
- IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
- 802.11e/WMM, VLAN, TOS
Network Management
-
≤ 50 APs: Light-weight Master in AP
-
≥ 50 APs: Cloud management (GWN.Cloud)
Power and Green Energy Efficiency
- Support 802.3 az ;
- POE 802.3af/ 802.3at;
- Max Consumption: 16.5W
Environmental
- Operation: 0°C to 40°C
- Storage: -10°C to 60°C
- Humidity: 10% to 90% Non-condensing
Physical
- Unit Dimension: 205.3 x 205.3 x 45.9mm; Unit Weight: 590g
- Unit + Mounting Kits Dimension : 205.3 x 205.3 x 50.9mm; Unit + Mounting Kits Weight : 710g
- Entire Package Dimension: 258 x 247 x 86mm; Entire Package Weight: 930g
Package Content
- GWN7630 802.11ac Wave-2 Wireless AP, Mounting Kits, Quick Start Guide
Compliance
- FCC, CE, RCM, IC
