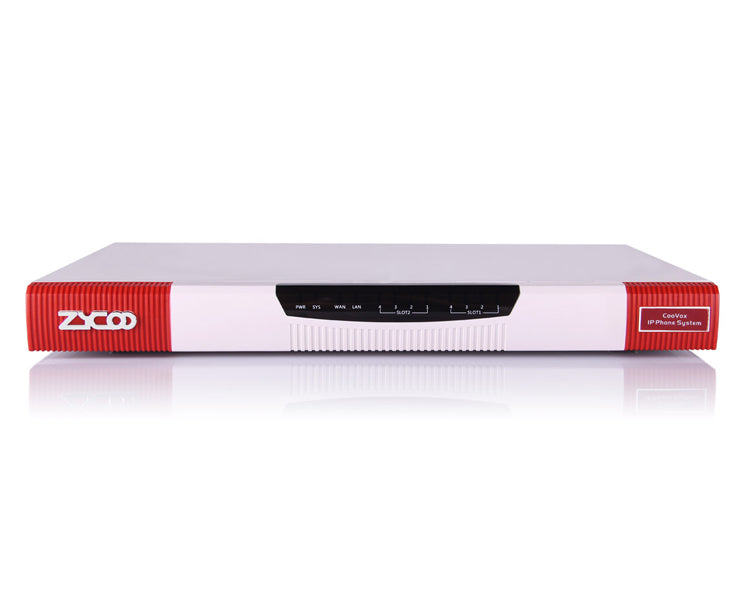

ZYCOO CooVox U100 IP PBX
ZYCOO CooVox U100 IP PBX
The ZYCOO CooVox U100 V2 IP PBX is a next-generation feature-rich Asterisk PBX dedicated to medium and large enterprises.
Zycoo CooVox U100 V2 Key Features
- Modular Design.
- Fax to email and one click to send fax.
- USB port for extended data storage.
- SIP over IPv6.
- LDAP phonebook.
- WebRTC enables your browsers and mobile applications with Real-Time Communications (RTC) capabilities
The CooVox-U100 V2 is a heavy loading but cost-effective IP phone system. It’s ideal for those enterprises which have heavy telephone traffic as it supports up to 500 extensions, 100 simultaneous calls, 80 simultaneous conference attendees, up to 7500 hours call recording in WAV format and if in GSM format it can store up to 75,000 hours worths of recordings.
Hardware
- Intel Dual-core 2.41GHz CPU
- 4GB DDR3L RAM
- 16GB On board EMMC + 500GB Surveillance Hard Drive
- HDMI (High-Definition Multimedia Interface)
- Audio In/Out (Paging)
- 2x 1000Mbps Ethernet Ports
- USB 3.0 + USB 2.0 (Extended Storage)
- 2x Module Slots
Telephony Signaling & Control
- SIP (RFC3261)
- SIP over UDP/TCP/TLS
- IAX2
- DTMF: RFC2833, SIP Info, In-band
- SRTP
- PRI, SS7, MFC/R2
Power
- AC 100~240V, 50/60Hz, 1.5A max
Environment
- Working Temperature: 0 ~ 40°C
- Storage Temperature: -20 ~ 55°C
- Humidity: 5 ~ 95% Non-condensing
ZYCOO CooVox U100 IP PBX
The ZYCOO CooVox U100 V2 IP PBX is a next-generation feature-rich Asterisk PBX dedicated to medium and large enterprises.
Zycoo CooVox U100 V2 Key Features
- Modular Design.
- Fax to email and one click to send fax.
- USB port for extended data storage.
- SIP over IPv6.
- LDAP phonebook.
- WebRTC enables your browsers and mobile applications with Real-Time Communications (RTC) capabilities
The CooVox-U100 V2 is a heavy loading but cost-effective IP phone system. It’s ideal for those enterprises which have heavy telephone traffic as it supports up to 500 extensions, 100 simultaneous calls, 80 simultaneous conference attendees, up to 7500 hours call recording in WAV format and if in GSM format it can store up to 75,000 hours worths of recordings.
ZYCOO CooVox U100 V2 IP PBX Technical SpecificationHardware
- Intel Dual-core 2.41GHz CPU
- 4GB DDR3L RAM
- 16GB On board EMMC + 500GB Surveillance Hard Drive
- HDMI (High-Definition Multimedia Interface)
- Audio In/Out (Paging)
- 2x 1000Mbps Ethernet Ports
- USB 3.0 + USB 2.0 (Extended Storage)
- 2x Module Slots
Telephony Signaling & Control
- SIP (RFC3261)
- SIP over UDP/TCP/TLS
- IAX2
- DTMF: RFC2833, SIP Info, In-band
- SRTP
- PRI, SS7, MFC/R2
Power
- AC 100~240V, 50/60Hz, 1.5A max
Environment
- Working Temperature: 0 ~ 40°C
- Storage Temperature: -20 ~ 55°C
- Humidity: 5 ~ 95% Non-condensing
