ZYCOO CooVox 2FXOS Module

Available:In Stock
£191.88

ZYCOO CooVox 2FXOS Module

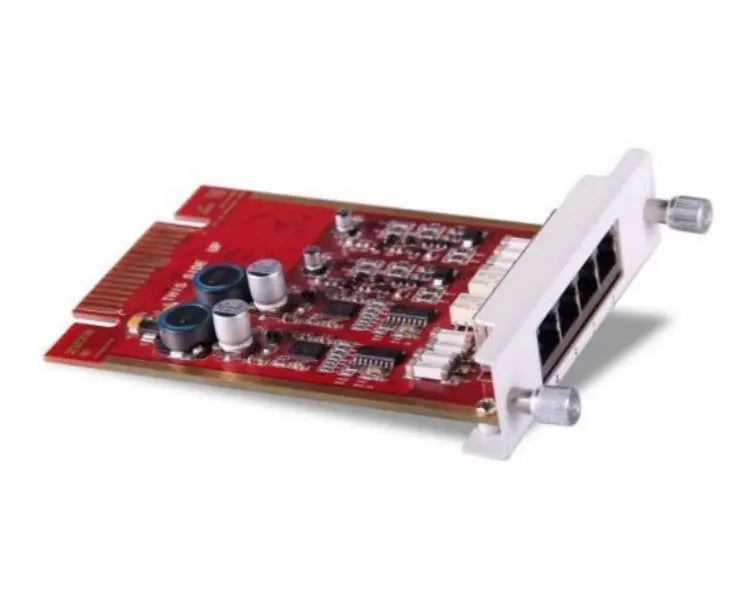

The ZYCOO CooVox 2FXOS Module applies to CooVox-U50/U80/U100 IP Phone System with 4 RJ11 ports for connection. Each port has one LED(Light- Emitting Diode), which is assembled on the main board.

FXS--- LED indicates port status:
> Solid = Module loading successful
> Blink = Ringing
FXO--- LED indicates port status:
> Solid = Module loading successful
> Blink = Ringing
If the LED is off, the module is loading failure.

The Analog Station Interface(FXO) provides the following features:

•Ring Generation and Ringing Trip
•Loop Closure Detection
•Loop Disconnect
•Loop Reversal
•Loop Voltage and Current Monitoring
•On-hook and Off-hook Transmission
•Hook-flash Detection
•DTMF Signalling
•Programmable Audio Gain
•On-board Power Generation
•Constant Loop Current: 20mA

ZYCOO CooVox 4FXS Module - Technical Specification

Features

  • Environmental Operation Information
    Temperature: 0°C ~ 40°C
    Humidity: 5% ~ 95% Non-Condensing
  • Physical Dimensions - 88.5 x 132 mm
  • Certifications - CE / FCC / RoHS
