Yealink MVC860 Microsoft Teams Base Bundle (No Audio) for Medium to Large Rooms
Yealink MVC860 No Audio Datasheet (PDF)
Yealink MVC860 Microsoft Teams Base Bundle (No Audio) for Medium to Large Rooms
The Yealink MVC860 offers user-friendly video conferencing solutions explicitly designed for Microsoft Teams rooms. This series is a comprehensive video conference solution catering to meeting rooms of various sizes, ranging from small to large. To meet the specific requirements of video conferencing rooms, a high-performance mini-PC has been specially developed. This mini-PC design prioritizes aesthetics and practicality, seamlessly integrating cable management for a flexible and dependable deployment solution in any meeting room.
Yealink MVC860 Key Features:
- Smooth tracking feature & multiple audio solution
- Content sharing in real time
- Simple to deploy, easy to use
- Manage your devices remotely

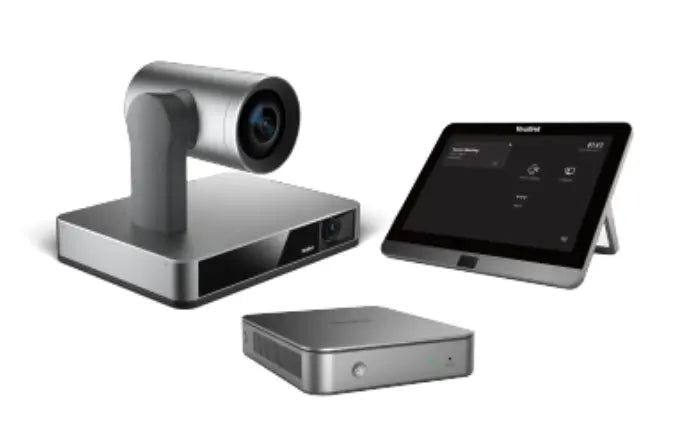

The MVC series boasts a native Microsoft Teams-tailored user interface, ensuring ease of operation with virtually no learning curve. Users can simply walk into the meeting room and initiate their scheduled Teams or Skype for Business meetings with a single touch. The Yealink MVC860, for instance, includes a 4K UVC86 USB PTZ camera featuring 12x optical zoom, along with the MCore, MTouch II, and MSpeaker II Soundbar. Additionally, users have the option to select from VCM34, VCM38, or CPW90 array microphones to complement the MVC860 setup.
Package Content
- MCore Mini-PC
- MTouch II touch panel
- UVC86 USB PTZ camera
- VCM34 array microphones (optional)
- VCM38 array microphones (optional)
- CPW90 array microphones (optional)
- One or two Yealink soundbars (optional)
- WPP20 wireless presentation pod (optional)
Preload
- Windows 10 IoT Enterprise X64
- Windows 10 IoT Enterprise License
- Microsoft Teams Rooms App, support Skype for Business on-premise/online and Teams meetings
- Yealink RoomConnect MCore
MCore Mini-PC
- 8th-gen Intel® QUAD-CORE i5
- Memory: 8GB (2 x 4GB)
- Storage: 128GB SSD
- 2 x HDMI video output with CEC supported
- Bluetooth and Wi-Fi
- 1 x Yealink VCH port (RJ45), connect to MTouch II
- 4 x USB3.0 Type-A
- 1 x 10/100/1000M Ethernet port
- 1 x Power port
- 1 x Security lock slot
- Integrated cable management
MTouch II touch panel
- 8-inch IPS screen
- 1280 x 800 resolution
- 10-point capacitive touch screen
- 3.5mm headset jack
- Human Motion Sensor
- Angle adjustable bracket (28° ~ 50°)
- 1080P/30FPS FHD for sharing
- Support wired and wireless content sharing
- Built-in Wi-Fi AP for Yealink wireless presentation device
- HDMI/USB-C HD video input
UVC86 USB PTZ Camera
- 4K camera
- 20.4 × HD zoom (12x optical, 1.7× digital)
- Field of view (diagonal):
- PTZ camera: 90° DFOV, 81° HFOV, 50° VFOV
- panoramic camera: 120° DFOV, 110° HFOV, 78° VFOV
- Auto Framing
- Speaker Tracking
- Presenter Tracking
- Camera presets
- Pan range: 200°
- Tilt range: 130°
- 1 x HDMI out
- 1 x Yealink VCH port (RJ45) for audio devices, BYOD extender or Yealink Codec
- 1 x USB 3.0 Type-B
- 1 x USB 2.0 Type-A
- 1 x Power port
- 1 x Security lock slot
- 1 x Reset slot
VCM34 Array Microphone
- Built-in 3-microphone array
- 360° 20ft (6-meter) voice pickup range
- Cascade connection up to 6 units
- Mute button with bicolor LED
VCM38 Ceiling Microphone
- Built-in 8-microphone arrays
- 360°-degree voice pickup
- Cascade connection up to 8 units
- Dual-color LED indicator
CPW90 Wireless Microphone
- 360°-degree voice pickup
- Capacitive mute touchpad
- 19-hour talking time
- 11-day standby time
Yealink Soundbar
- Frequent response: 100Hz - 20KHz
- S/N: ≥70dB
- 1 x Line-in (3.5mm)
Package Features (Base kit)
- N.W/CTN: 6.88Kg
- G.W/CTN: 7.54Kg
- Carton Meas: 420mm x 275mm x 387mm
