Yealink MVC S90-C5-007 Gen 3 Native Microsoft Teams Rooms System for ProAV rooms
- Category:Best selling products,IP Video Conferencing,New products,Yealink Microsoft Teams Rooms System,Yealink Video Conferencing
Yealink MVC S90-C5-007 Datasheet (PDF)
Yealink MVC S90-C5-007 Gen 3 Native Microsoft Teams Rooms System for ProAV rooms
The Yealink MVC S90-C5-007 is built for extra-large conference rooms and offers a comprehensive package featuring advanced components like the high-performance MINI-PC MCore Pro, intuitive touch panel MTouch Plus, intelligent 4K PTZ camera UVC86, and versatile AVHub for seamless audio and video processing. AVHub empowers users to fine-tune screen layouts and leverage Yealink's exclusive multi-camera solution, supporting up to 9 cameras simultaneously and offering multi-speaker tracking with voice activation.
Yealink MVC S90-C5-007 Key Features:
Comprehensive Package of Advanced Components
Multi-camera Solution with AVHub
Flexible Integration and Networking
Purpose-built for Extra-large Conference Rooms
The MVC S90 set includes two UVC86 cameras with 12x optical zoom and intelligent tracking, and the MTouch Plus control panel allows for independent camera control and layout switching via Yealink RoomConnect. Integration with the MVC-BYODExtender via USB cable turns a Microsoft Teams meeting room into a multi-functional space, and multiple MVC S90 series sets can be networked together to create a flexible conference room system that can adapt to changing needs.
Yealink MVC S90-C5-007 Technical Specifications

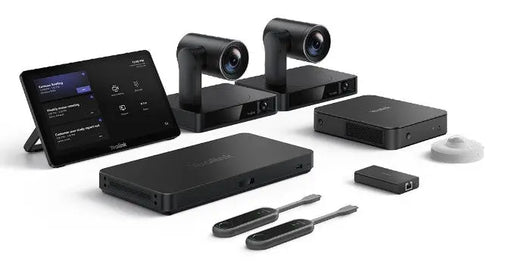

Package Content
MCore Pro, Gen-3 Mini-PC
MTouch Plus, Gen-3 touch panel
AVHub, audio and video processor
2 x UVC86 USB PTZ camera
2 x WPP30 wireless presentation pod
RoomSensor, meeting room sensor
Preload
Windows 10 IoT Enterprise X64 / Windows 11* IoT Enterprise X64
Windows 10 IoT Enterprise License
Microsoft Teams Rooms App, support Skype for Business on-premise/online and Teams meetings
Yealink RoomConnect
MCore Pro, Gen-3 Mini-PC
11th Gen Intel® Core i5
Memory: 8 GB (2 x 4GB)
Storage: 128 GB SSD
3x HDMI video output with CEC supported
TPM2.0
Kernel DMA
EDID
Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
Bluetooth: BT 5.2
1 x Yealink MTouch port (RJ45), connect to MTouch Plus / MTouch E2
4 x USB 3.0 Type-A
1 x 10/100/1000M Ethernet port
1 x Power port
1 x Security lock slot, Integrated cable management
MTouch Plus
11.6-inch narrow bezel IPS display
1920 x 1080 video resolution
Angle between screen and desktop (30° ~ 70°)
Adjustable angle of support frame (50° ~ 180°)
Support wired and wireless (with WPP30) content sharing
Support multi-screen control*
Support third-party screen sharing*
Support wireless BYOD*
Support external PD power supply to power the sharing device
Support HDMI/USB-C video input
Support desktop placement, desktop fixed, wall-mounted deployment
*This feature will be supported in future versions
RoomSensor
Detection angle: 120°
Adjustable detection angle: ±20°
Operating temperature: 0-40℃
Operating humidity: 10-95%
Power: Battery powered, 4 year life
AVHub, audio and video processor
2 x USB-A port
1 x USB-B port
1 x Codec port
7 x Yealink VCH port (RJ-45)
1 x RCA in/out interface
1 x 6.3mm Line in interface
1 x 6.3mm Line out interface
1 x power interface
Dividable and merging meeting rooms are supported
Support intelligent multi-speaker tracking
UVC86 USB PTZ Camera
4K Sensor
20.4 × HD zoom (12x optical, 1.7x digital)
Angle of view:
-90° DFOV, 81° HFOV, 50° VFOV (Telephoto lens) 120° DFOV, 110° HFOV, 78° VFOV (Panoramic lens)
Auto-framing
Speaker tracking
Presenter tracking, support area trigger and gesture control
Multi-focus
Picture-in-picture
Up to 9 preset positions can be set
Horizontal rotation: 200°
Vertical rotation: 130°
1 x HDMI output
1 x Yealink microphone port(RJ-45)
1 x USB 3.0 Type-B port
1 x USB 2.0 Type-A Port
1 x Power Port
1 x Security Lock
1 x Reset Hole
