Yealink DeskVision A24 Desktop Collaboration Display
Yealink DeskVision Datasheet (PDF)

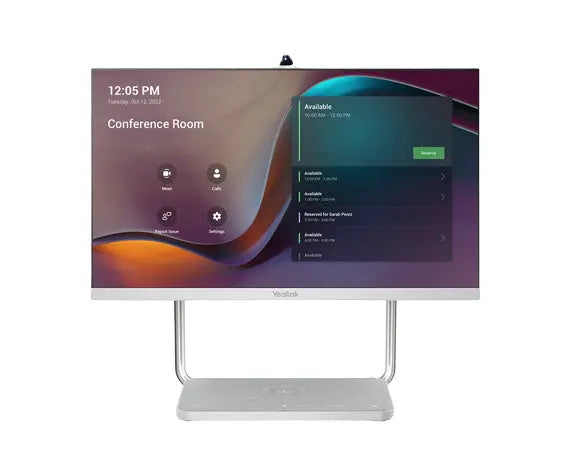

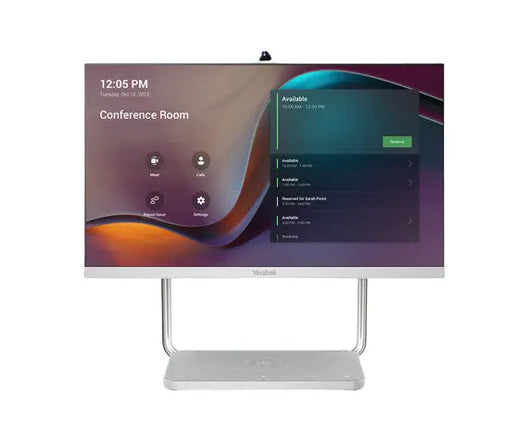

Yealink DeskVision A24 Desktop Collaboration Display
The DeskVision A24 is a personal collaboration device with a 24-inch touch display. It features a 4K camera hidden behind the screen that automatically appears when used, as well as built-in speakers.
The DeskVision A24 works as a native Microsoft Teams display. The touchscreen is ideal for sharing and participating in whiteboard sessions and for taking notes during Teams meetings.
For added usability, peripherals can be connected to the base of the display, which serves as a UC workstation with a USB hub and wireless charger for smartphones. In addition, the Yealink DeskVision A24 can also be used as a second display for a laptop.
Yealink DeskVision A24 Key Features
- Microsoft Teams Display
- Dual Display Mode
- Superior audio and video
- UC Workstation
- Touchscreen for whiteboard collaboration
The DeskVision A24 is designed to meet all desktop office needs of users with highly integrated hardware and software while achieving a minimalist setup with seamless switching between multiple scenarios. This product combines the advantages of a touch monitor and a conference terminal, making it a workstation with rich UC functions.
The unique light hinge enables the screen to be tilted greatly, allowing users to adjust the height to meet their whiteboard-writing needs.
Screen
- Dimensions: 23.8 inch
- Resolution: 1920 x 1080
- Refresh Rate: 60 Hz
- Color Depth: 8 bit
- Contrast Ratio: 1000:1
- Viewing Angle:
- Horizontal: 178°
- Pitch: 178°
- Multi-touch: 10 points
Camera
- 4K Camera
- Camera FOV: 83°
- Video Specifications: Up to 1080p30
Video Call
- Privacy Protection: Automatically lifted or manually controlled lift
Audio
- Microphone Type: Built-in Dual Microphones
- Intelligent Noise Cancellation Technology
- Speaker: Built-in Stereo Speaker
- Speaker Power: 2*3W
- Speaker frequency response: 100MHZ-16KHZ
Application Mode
- Dual Mode:
- Built-in Android
- UC Workstation mode
- Android System: Android 10.0
Wireless capability
- Wi-Fi: supports 2.4G / 5G dual-mode Wi-Fi
- Bluetooth: Support Bluetooth 4.2
Physical interface
- 1 x HDMI in port
- 1 x USB-C 3.0 upstream DP-IN port: provide PD up to 45 w
- 1 x USB-C 3.0 downstream port, connect to peripherals. Only applicable for PCs connected to the USB-C upstream port.
- 2 x USB-A 3.0 downstream port, connect to peripherals.
- 1x USB-A 2.0 downstream port, connect to headphones.
- 1 x DC 19V port
- 1 x Internet (RJ-45) port
- Qi Wireless Charging
- Buttons: Power, Volume, Mute, Camera on/off, Switch Mode, Teams Button
Other Physical Features
- N.W/CTN: 7.904 kg
- G.W/CTN: 9.346 kg
- Carton Meas (mm): 622*375*197
- Dimension (W.D.H)(mm): 540*219*478
- Power consumption: 19w
- Operating temperature: 0-40℃
- Operating humidity: 10-95%
- Storage temperature: -30-70℃
Yealink DeskVision Datasheet (PDF)
Yealink DeskVision A24 Desktop Collaboration Display
The DeskVision A24 is a personal collaboration device with a 24-inch touch display. It features a 4K camera hidden behind the screen that automatically appears when used, as well as built-in speakers.
The DeskVision A24 works as a native Microsoft Teams display. The touchscreen is ideal for sharing and participating in whiteboard sessions and for taking notes during Teams meetings.
For added usability, peripherals can be connected to the base of the display, which serves as a UC workstation with a USB hub and wireless charger for smartphones. In addition, the Yealink DeskVision A24 can also be used as a second display for a laptop.
Yealink DeskVision A24 Key Features
- Microsoft Teams Display
- Dual Display Mode
- Superior audio and video
- UC Workstation
- Touchscreen for whiteboard collaboration
The DeskVision A24 is designed to meet all desktop office needs of users with highly integrated hardware and software while achieving a minimalist setup with seamless switching between multiple scenarios. This product combines the advantages of a touch monitor and a conference terminal, making it a workstation with rich UC functions.
The unique light hinge enables the screen to be tilted greatly, allowing users to adjust the height to meet their whiteboard-writing needs.
Yealink DeskVision A24 Technical SpecificationsScreen
- Dimensions: 23.8 inch
- Resolution: 1920 x 1080
- Refresh Rate: 60 Hz
- Color Depth: 8 bit
- Contrast Ratio: 1000:1
- Viewing Angle:
- Horizontal: 178°
- Pitch: 178°
- Multi-touch: 10 points
Camera
- 4K Camera
- Camera FOV: 83°
- Video Specifications: Up to 1080p30
Video Call
- Privacy Protection: Automatically lifted or manually controlled lift
Audio
- Microphone Type: Built-in Dual Microphones
- Intelligent Noise Cancellation Technology
- Speaker: Built-in Stereo Speaker
- Speaker Power: 2*3W
- Speaker frequency response: 100MHZ-16KHZ
Application Mode
- Dual Mode:
- Built-in Android
- UC Workstation mode
- Android System: Android 10.0
Wireless capability
- Wi-Fi: supports 2.4G / 5G dual-mode Wi-Fi
- Bluetooth: Support Bluetooth 4.2
Physical interface
- 1 x HDMI in port
- 1 x USB-C 3.0 upstream DP-IN port: provide PD up to 45 w
- 1 x USB-C 3.0 downstream port, connect to peripherals. Only applicable for PCs connected to the USB-C upstream port.
- 2 x USB-A 3.0 downstream port, connect to peripherals.
- 1x USB-A 2.0 downstream port, connect to headphones.
- 1 x DC 19V port
- 1 x Internet (RJ-45) port
- Qi Wireless Charging
- Buttons: Power, Volume, Mute, Camera on/off, Switch Mode, Teams Button
Other Physical Features
- N.W/CTN: 7.904 kg
- G.W/CTN: 9.346 kg
- Carton Meas (mm): 622*375*197
- Dimension (W.D.H)(mm): 540*219*478
- Power consumption: 19w
- Operating temperature: 0-40℃
- Operating humidity: 10-95%
- Storage temperature: -30-70℃
