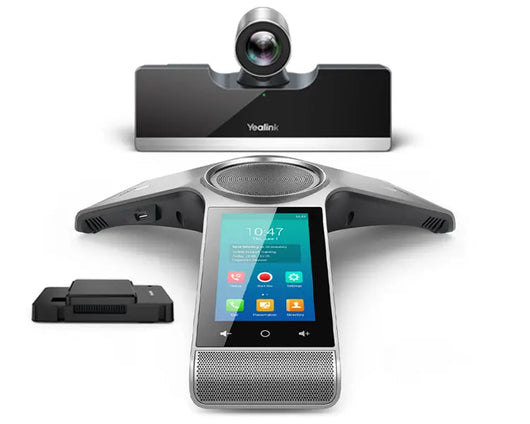

Yealink CP960-UVC50 Zoom Rooms Kit
Yealink CP960-UVC50 Zoom Rooms Kit
The Yealink CP960-UVC50 is deeply integrated with Zoom Rooms controller, you can adjust the volume and mute/unmute the microphone directly on it. For its video quality, the UVC series camera supports 1080P/60FPS video, thus greatly enhancing the fluency of video conferencing, making the presentation more vivid even in details, and delivering a vivid face-to-face video conference experience.
Yealink CP960-UVC50 Key Features
- Yealink UVC50 USB PTZ camera
- Yealink mini-PC Package (including a cable management box)
- Yealink CP960 Conference Phone
Total Device Package Offer
Yealink delivers a complete Zoom Rooms package containing a full hardware suite (mini-PC, camera, audio devices) as well as the requisite software and license, simplifying the purchasing process and deployment while making the after-sales service experience more convenient than ever.
Simple to Deploy, Easy to Use
Yealink one-cable technology eliminates the need for a traditional USB cable from the television area to the conference table area, greatly simplifying deployment. The Yealink CP960 Conference Phone further declutters the conference area by uniting microphones, speaker and meeting console into a single package. When serving as a meeting console, the five-inch multi-touch screen display allows users to join the meeting, add participants, adjust volume and control the PTZ (Pan, Tilt, Zoom) of the camera, making meeting management a snap.
Premium Audio and Video Meeting Experience
Featuring a built-in three-microphone array, the Yealink CP960 Conference Phone ensures a 360-degree voice pickup range with up to a 20-foot (six-meter) radius. Thanks to Yealink Noise Proof Technology, background noise is minimized so that everyone in the room can be heard clearly. By adding the two CPW90 wireless expansion microphones, the CP960 can provide up to a 40-foot (12-meter) voice pickup radius without any additional wiring. Yealink’s UVC optical PTZ camera delivers sharp, smooth and stable video with a deep focus field. The wideangle horizontal field-of-view lens and adjustable camera angle provide a broad view of the conference room.
Manage Your Devices Remotely
Yealink Device Management Platform or cloud service can manage the Yealink CP960-UVC Zoom Rooms Kits, allowing administrators to remotely control devices with ease. The platform supports remote configuration, firmware upgrading, monitoring and diagnosis. Through Windows Update, users can get the latest version of the UVC camera driver and Yealink Plug-in for Zoom Rooms, further enhancing the user’s Zoom Rooms experience.
Target Room Size
- Small-to-medium rooms
Componants
- Mini PC-Package: Yealink mini-PC package, including computer and cable management box
- USB Camera: Yealink UVC50 5x optical PTZ camera
- IP Conference Phone: CP960-Zoom Edition + PoE Adapter
- Carton: 435mm*405mm*388mm
Computer Features
- CPU: Intel® Core™ i5 CPU
- Memory/ Storage: 8GB(2x4GB), 128GB SSD
- Operating System: Windows 10 OS and license
- Preinstalled Software: Zoom Rooms App and Yealink plug-in software
UVC Camera Features
- UVC Protocol: UVC 1.1
- Plug and play
- Zoom: 5x optical
- Resolution/ Frame Rate: 1080P / 60FPS
- Field of View (diagonal): 91°
- Pan/ Tilt Range: 60° / 40°
- Line-in & Line-out Ports
- Yealink VC Hub Port: (to connect to Yealink microphones)
- USB Port: 1 x USB 2.0 TYPE-B port to connect to PC 1 x USB 2.0 TYPE-A port
Conference Phone Features
- Operating System: Android OS integrate with ZR controller App
- Screen Features: 5-inch capacitive touchscreen with 1280x720 resolution
- Microphone: Built-in 3-mic Array 20ft / 6 meters voice pickup range
- Expansion Microphone: Optional
- Speaker
- Mute/ Volume Sync: (with ZR/ZRC/CP960)
- Yealink Noise Proof Technology
Mini-PC Package
- 8 th -gen Intel ® Core™ i5
- Memory: 8GB (2 x 4GB)
- Storage: 128GB SSD1 x HDMI video output
- Bluetooth and Wi-Fi
- 4 x USB3.1 Type-A
- 1 x USB3.1 Type-C
- 1 x 10/100/1000M Ethernet port
- 1 x Security lock slot
- Cable management box
- 1 x Type-C to HDMI adapter
Yealink Conference Phone CP960
- 5” 720x1280 capacitive touch screen
- 1 x RJ45 10/100M Ethernet port
- Power over Ethernet (IEEE 802.3af ), class 4
- 2 x Wired MIC port
- 2 x USB 2.0 port
- 1 x 3.5mm audio-out port
- 1 x USB 2.0 Micro-B device port
- 1 x Security slot
Yealink CPW90 Wireless Microphones (optional)
- DECT technology, up to 50 meters distance
- 10ft (3-meter) voice pickup range of every microphone unit
- Supports up to 4 wireless microphone units
- Built-in Li-battery, 11 days standby, 19 hours talking time
- Charging cradle, charging any time
UVC50 USB PTZ Camera
- 1920 x 1080 video resolution
- 60 frame rate
- 5x optical zoom
- Field of view (diagonal): 91°
- Pan range: 60°
- Tilt range: 40°
- 1 x Line-in (3.5mm)
- 1 x Line-out (3.5mm)
- 1 x Yealink Microphone port (RJ-45)
- 1 x USB 2.0 Type-B
- 1 x USB 2.0 Type-A
- 1 x Security lock slot
- 1 x Reset slot
Package Physical Features
- Operating humidity: 10~95%
- Operating temperature: 0~40°C (+32~104°F)
- Storage temperature: -30~70°C (-22~158°F)
- N.W/CTN: 4.9 Kg (CP960-UVC50 Zoom Rooms Kit)
- G.W/CTN: 6.2 Kg (CP960-UVC50 Zoom Rooms Kit)
Yealink CP960-UVC50 Zoom Rooms Kit
The Yealink CP960-UVC50 is deeply integrated with Zoom Rooms controller, you can adjust the volume and mute/unmute the microphone directly on it. For its video quality, the UVC series camera supports 1080P/60FPS video, thus greatly enhancing the fluency of video conferencing, making the presentation more vivid even in details, and delivering a vivid face-to-face video conference experience.
Yealink CP960-UVC50 Key Features
- Yealink UVC50 USB PTZ camera
- Yealink mini-PC Package (including a cable management box)
- Yealink CP960 Conference Phone
Total Device Package Offer
Yealink delivers a complete Zoom Rooms package containing a full hardware suite (mini-PC, camera, audio devices) as well as the requisite software and license, simplifying the purchasing process and deployment while making the after-sales service experience more convenient than ever.
Simple to Deploy, Easy to Use
Yealink one-cable technology eliminates the need for a traditional USB cable from the television area to the conference table area, greatly simplifying deployment. The Yealink CP960 Conference Phone further declutters the conference area by uniting microphones, speaker and meeting console into a single package. When serving as a meeting console, the five-inch multi-touch screen display allows users to join the meeting, add participants, adjust volume and control the PTZ (Pan, Tilt, Zoom) of the camera, making meeting management a snap.
Premium Audio and Video Meeting Experience
Featuring a built-in three-microphone array, the Yealink CP960 Conference Phone ensures a 360-degree voice pickup range with up to a 20-foot (six-meter) radius. Thanks to Yealink Noise Proof Technology, background noise is minimized so that everyone in the room can be heard clearly. By adding the two CPW90 wireless expansion microphones, the CP960 can provide up to a 40-foot (12-meter) voice pickup radius without any additional wiring. Yealink’s UVC optical PTZ camera delivers sharp, smooth and stable video with a deep focus field. The wideangle horizontal field-of-view lens and adjustable camera angle provide a broad view of the conference room.
Manage Your Devices Remotely
Yealink Device Management Platform or cloud service can manage the Yealink CP960-UVC Zoom Rooms Kits, allowing administrators to remotely control devices with ease. The platform supports remote configuration, firmware upgrading, monitoring and diagnosis. Through Windows Update, users can get the latest version of the UVC camera driver and Yealink Plug-in for Zoom Rooms, further enhancing the user’s Zoom Rooms experience.
Yealink CP960-UVC50 Technical Specifications
Target Room Size
- Small-to-medium rooms
Componants
- Mini PC-Package: Yealink mini-PC package, including computer and cable management box
- USB Camera: Yealink UVC50 5x optical PTZ camera
- IP Conference Phone: CP960-Zoom Edition + PoE Adapter
- Carton: 435mm*405mm*388mm
Computer Features
- CPU: Intel® Core™ i5 CPU
- Memory/ Storage: 8GB(2x4GB), 128GB SSD
- Operating System: Windows 10 OS and license
- Preinstalled Software: Zoom Rooms App and Yealink plug-in software
UVC Camera Features
- UVC Protocol: UVC 1.1
- Plug and play
- Zoom: 5x optical
- Resolution/ Frame Rate: 1080P / 60FPS
- Field of View (diagonal): 91°
- Pan/ Tilt Range: 60° / 40°
- Line-in & Line-out Ports
- Yealink VC Hub Port: (to connect to Yealink microphones)
- USB Port: 1 x USB 2.0 TYPE-B port to connect to PC 1 x USB 2.0 TYPE-A port
Conference Phone Features
- Operating System: Android OS integrate with ZR controller App
- Screen Features: 5-inch capacitive touchscreen with 1280x720 resolution
- Microphone: Built-in 3-mic Array 20ft / 6 meters voice pickup range
- Expansion Microphone: Optional
- Speaker
- Mute/ Volume Sync: (with ZR/ZRC/CP960)
- Yealink Noise Proof Technology
Mini-PC Package
- 8 th -gen Intel ® Core™ i5
- Memory: 8GB (2 x 4GB)
- Storage: 128GB SSD1 x HDMI video output
- Bluetooth and Wi-Fi
- 4 x USB3.1 Type-A
- 1 x USB3.1 Type-C
- 1 x 10/100/1000M Ethernet port
- 1 x Security lock slot
- Cable management box
- 1 x Type-C to HDMI adapter
Yealink Conference Phone CP960
- 5” 720x1280 capacitive touch screen
- 1 x RJ45 10/100M Ethernet port
- Power over Ethernet (IEEE 802.3af ), class 4
- 2 x Wired MIC port
- 2 x USB 2.0 port
- 1 x 3.5mm audio-out port
- 1 x USB 2.0 Micro-B device port
- 1 x Security slot
Yealink CPW90 Wireless Microphones (optional)
- DECT technology, up to 50 meters distance
- 10ft (3-meter) voice pickup range of every microphone unit
- Supports up to 4 wireless microphone units
- Built-in Li-battery, 11 days standby, 19 hours talking time
- Charging cradle, charging any time
UVC50 USB PTZ Camera
- 1920 x 1080 video resolution
- 60 frame rate
- 5x optical zoom
- Field of view (diagonal): 91°
- Pan range: 60°
- Tilt range: 40°
- 1 x Line-in (3.5mm)
- 1 x Line-out (3.5mm)
- 1 x Yealink Microphone port (RJ-45)
- 1 x USB 2.0 Type-B
- 1 x USB 2.0 Type-A
- 1 x Security lock slot
- 1 x Reset slot
Package Physical Features
- Operating humidity: 10~95%
- Operating temperature: 0~40°C (+32~104°F)
- Storage temperature: -30~70°C (-22~158°F)
- N.W/CTN: 4.9 Kg (CP960-UVC50 Zoom Rooms Kit)
- G.W/CTN: 6.2 Kg (CP960-UVC50 Zoom Rooms Kit)
