Yealink CP960-UVC30 Zoom Rooms Conference System
Yealink CP960-UVC30 Zoom Rooms Conference System

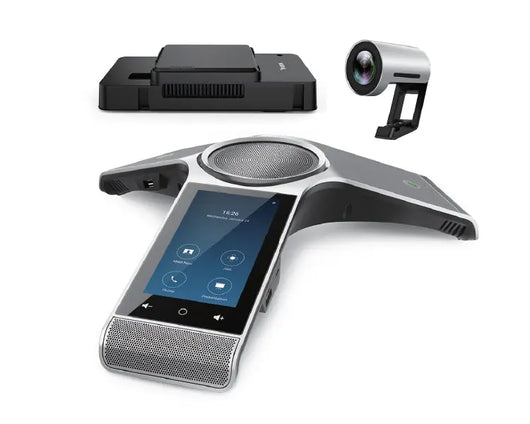

The Yealink CP960-UVC30 kit is a complete video solution that comes fully integrated with Zoom Rooms and includes pre-installed Zoom Rooms software. It delivers premium audio and video quality thanks to the combination of the Yealink CP960 Conference Phone and Yealink’s UVC series of optical PTZ cameras, which work in tandem to
provide users a native Zoom Rooms experience.
Yealink CP960-UVC30 Key Features
- Yealink CP960 conference phone
- UVC30 UHD 4K camera
- Mini-PC and cable management box
Premium Audio and Video Meeting Experience
The UVC30 is Yealink’s new generation ultra HD camera that supports 4K/30FPS video calls to enhance your business discussion as much as possible. Featuring auto framing, UVC30 free users from doing the PTZ control, always provide a best picture during the meeting. For audio experience, featuring a built-in three-microphone array, the Yealink CP960 Conference Phone ensures a 360-degree voice pickup range with up to a 20-foot (six-meter) radius. Thanks to Yealink Noise Proof Technology, background noise is minimized so that everyone in the room can be heard clearly.
Simple to Deploy, Easy to Use
Yealink one-cable technology eliminates the need for a traditional USB cable from the television area to the conference table area, greatly simplifying deployment. The Yealink CP960 Conference Phone further declutters the conference area by uniting microphones, speaker and meeting console into a single package. When serving as a meeting console, the five-inch multitouch screen display allows users to join the meeting, add participants, adjust volume and control the PTZ (Pan, Tilt, Zoom) of the camera, making meeting management a snap.
Yealink CP960-UVC30 Technical Specifications
Package contents
- Mini-PC and cable management box
- Yealink CP960 conference phone
- UVC30 UHD 4K camera
Preload
- Windows 10 IoT Enterprise X64
- Windows 10 IoT Enterprise License
- Zoom Rooms App
- Yealink RoomConnect
Mni PC Package
- 8th-gen Intel® Core™ i5
- Memory: 8GB (2 x 4GB)
- Storage: 128GB SSD
- 1 x HDMI video output
- Bluetooth and Wi-Fi
- 4 x USB3.1 Type-A
- 1 x Thunderbolt 3 Type-C
- 1 x 10/100/1000M Ethernet port
- 1 x Power port
- 1 x Security lock slot
- Cable management box
Yealink Conference Phone CP960
- 5” 720x1280 capacitive touch screen
- 1 x RJ45 10/100M Ethernet port
- Power over Ethernet (IEEE 802.3af ), class 4
- 2 x Wired MIC port
- 2 x USB 2.0 port
- 1 x 3.5mm audio-out port
- 1 x USB 2.0 Micro-B device port
- 1 x Security slot
Yealink UVC30 4K Camera
- 4K video resolution
- Maximum 60FPS
- 3x digital zoom
- Field of view (diagonal): 120°
- Facial recognition and Auto framing
- Camera presets
- 1 x 3m USB 2.0 cable
Package Physical Features
- Operating humidity: 10~95%
- Operating temperature: 0~40°C (+32~104°F)
- Storage temperature: -30~70°C (-22~158°F)
