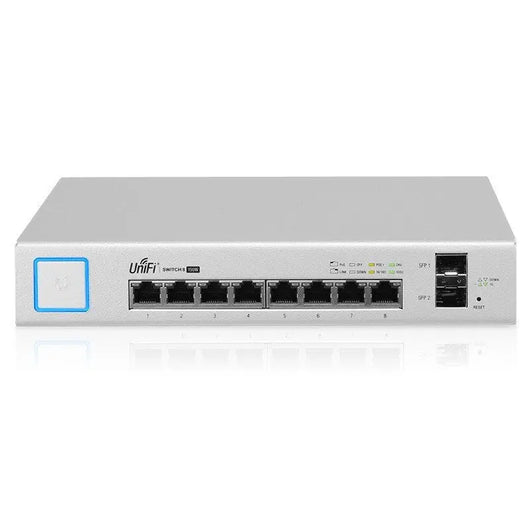

Ubiquiti UniFi US-8-150W Switch
Ubiquiti UniFi US-8-150W Switch
The Ubiquiti UniFi US-8-150W is a fully managed 8 port PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks. The US-8-150W is a fanless UniFi switch which delivers a quiet yet powerful performance.
Ubiquiti UniFi Switch 8 150W Key Features
- (8) Gigabit RJ45 Ports
- (2) SFP Ports
- Non-Blocking Throughput: 10 Gbps
- Switching Capacity: 20 Gbps
- Forwarding Rate: 14.88 Mpps
- Maximum Power Consumption: 150W
- Supports PoE+ IEEE 802.3at/af and 24V Passive PoE
- Quiet, Fanless Operation
- Desktop-Mountable (Do not physically stack the US-8-150W.)
Versatile Port Configuration
Eight Gigabit RJ45 ports offer different power output options: auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE, and two SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.
Wall Mounting
Mounting Accessories support any orientation wall-mount and desk/shelf mounting.
Sleek Design and Management
The compact UniFi Switch can be placed on a desktop and integrates with the UniFi Controller software for centralized management of your UniFi devices.
Advanced Enterprise Switching
The UniFi Switch supports 802.1X authentication, dynamic and static VLAN tagging, port isolation, storm control, and guest control.
Ubiquiti UniFi Switch 8 150W - Technical Specifications
General
- Dimensions: 235 x 43 x 204 mm (9.25 x 1.69 x 8.03")
- Weight: 1.65 kg (3.67 lb)
- Networking Interfaces:
- (8) 10/100/1000 Mbps RJ45 Ethernet Ports
- (2) 1 Gbps SFP Ethernet Ports - Management Interface: Ethernet In-Band
- Total Non-Blocking Throughput: 10 Gbps
- Switching Capacity: 20 Gbps
- Forwarding Rate: 14.88 Mpps
- MAC Address Table: 16384
- Maximum Aggregations: 6
- Monitoring Sessions: 1
- Maximum VLANs: 255
- Power Method: 100-240VAC/50-60 Hz, Universal Input
- Power Supply: AC/DC, Internal, 150W DC
- Max. Power Consumption:
- Including PoE Output: 150W
- Excluding PoE Output: 20W - LEDs Per Port:
- RJ45 Data Ports: PoE, Speed/Link/Activity
- SFP Data Ports: Speed/Link/Activity - Sound Level (Background noise level: 27.5 dBa): 0.5 dBr (Fanless)
- ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
- Shock and Vibration: ETSI300-019-1.4 Standard
- Operating Temperature -5 to 40° C (23 to 104° F)
- Operating Humidity 5 to 95% Noncondensing
- Certifications CE, FCC, IC
PoE+ Per Port
- PoE Interfaces:
- PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
- 24VDC Passive PoE (Pins 4, 5+; 7, 8-) - Max. PoE+ Wattage per Port by PSE: 34.2W
- Voltage Range 802.3at Mode: 50–57V
- Max. Passive PoE Wattage per Port: 17W
- 24V Passive PoE Voltage Range: 20-27V
