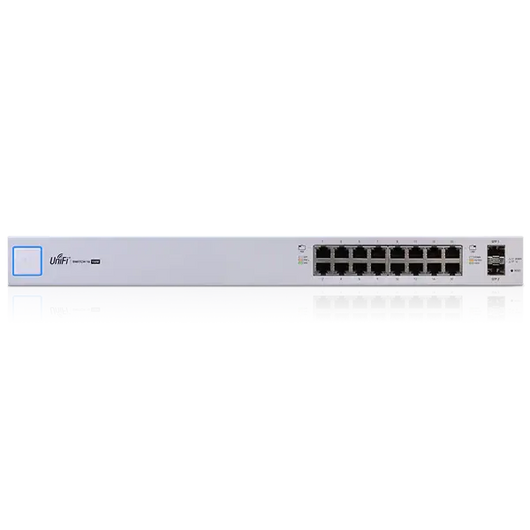

Ubiquiti UniFi US-16-150W Switch
Available:Out of Stock
£309.12
Please Note: Unfortunately due to increasing demand, the Ubiquiti UniFi Switches are facing a global shortage. You can either pre-order today, or check out the Ubiquiti EdgeSwitch Range as an alternative.
Please Note: If you need a storage cabinet for this product, please take a look at our Storage Solutions from All-Rack by clicking here.
Ubiquiti UniFi US-16-150W Switch
The Ubiquiti UniFi US-16-150W delivers robust performance over its 18 independent switching ports. Two SFP ports offer optical connectivity, and 16 Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V passive PoE allow you to simplify your infrastructure.
Ubiquiti UniFi US-16-150W Key Features
16 x Gigabit RJ45 Ports
2 x SFP Ports
1 x Serial Console Port
Non-Blocking Throughput: 18 Gbps
Switching Capacity: 36 Gbps
Forwarding Rate: 26.78 Mpps
Maximum Power Consumption: 150W
Supports PoE+ IEEE 802.3at/af and 24V Passive PoE
Rack-Mountable or Wall-Mountable with Rack-Mount Brackets (Included)
The UniFi US-16-150W delivers robust performance, intelligent switching for growing networks and provides the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
Versatile Mounting Options
The UniFi US-16-150W can be placed either on a desktop, on a wall, or in a rack.
Mounting option for US-16-150W
Versatile Port Configuration
Sixteen Gigabit RJ45 ports offer different power output options: auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE, and two SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.
Image of 16 PoE Gigabit RJ45 Ports and 2 SFP Ports
Integration with UniFi Controller
The UniFi US-16-150W integrates with the UniFi Controller software for centralised management of your UniFi devices.
Photo of how US-16-150W UniFi Controller software works across devices
Ubiquiti UniFi Switch 16 150W - Technical Specifications
General
Dimensions: 443 x 43 x 221 mm (17.44 x 1.69 x 8.70")
Weight:
- Rack-Mount Brackets Excluded - 2.80 kg (6.17 lb)
- Rack-Mount Brackets Included - 2.89 kg (6.37 lb
Networking Interfaces:
- 16 x 10/100/1000 Mbps RJ45 Ethernet Ports
- 2 x 1 Gbps SFP Ethernet Ports
Management Interface: Ethernet In-Band
Total Non-Blocking Throughput: 18 Gbps
Switching Capacity: 36 Gbps
Forwarding Rate: 26.78 Mpps
MAC Address Table: 16384
Maximum Aggregations: 6
Monitoring Sessions: 1
Maximum VLANs: 255
Power Method: 100-240VAC/50-60 Hz, Universal Input
Power Supply: AC/DC, Internal, 150W DC
Max. Power Consumption:
- Including PoE Output: 150W
- Excluding PoE Output: 28W
LEDs Per Port:
- RJ45 Data Ports: PoE, Speed/Link/Activity
- SFP Data Ports: Speed/Link/Activity
Sound Level (Background noise level: 27.5 dBa):
- Fan Level: 0: 1.7 dBr
- Fan Level: 1, 2, 3: 10.8 dBr
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Shock and Vibration: ETSI300-019-1.4 Standard
Operating Temperature: -5 to 40° C (23 to 104° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC
PoE+ Per Port
PoE Interfaces:
- PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
- 24VDC Passive PoE (Pins 4, 5+; 7, 8-)
Max. PoE+ Wattage per Port by PSE: 34.2W
Voltage Range 802.3at Mode: 50–57V
Max. Passive PoE Wattage per Port: 17W
24V Passive PoE Voltage Range: 20-27V
