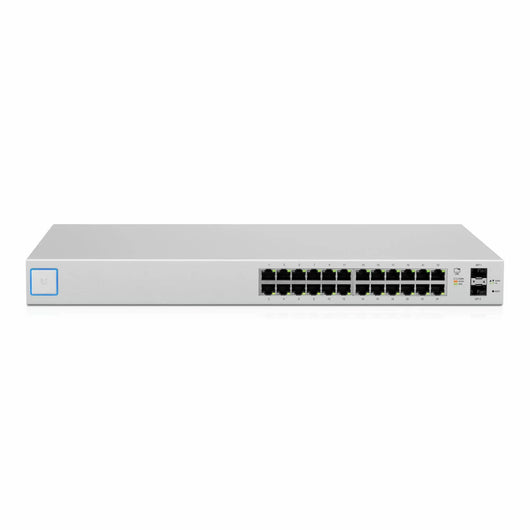

Ubiquiti UniFi Switch 24 US-24 (NON-POE)
Ubiquiti UniFi Switch 24 US-24 (NON-POE)
The Ubiquiti UniFi US-24 (NON-POE) is a fully managed twenty-four port switch that delivers robust performance, intelligent switching for growing networks. The Ubiquiti UniFi US-24 delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
Ubiquiti UniFi US-24 Key Features
- (24) Gigabit RJ45 Ports
- (2) SFP Ports
- (1) Serial Console Port
- Non-Blocking Throughput: 26 Gbps
- Switching Capacity: 52 Gbps
- Forwarding Rate: 38.69 Mpps
- Maximum Power Consumption: 25W
- Rack-Mountable
Powerful Enterprise Switch Models
The UniFi® Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non‐blocking throughput, the US-24 supports up to 26 Gbps, while the 48-port model supports up to 70 Gbps.
Multi-Site Management
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralised interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
Optical Fiber Backhaul
Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.
Non-Blocking Throughput
For its total, non‐blocking throughput, the US-24 supports up to 26 Gbps, while the 48-port model supports up to 70 Gbps.
Switching Capacity
The UniFi US-24 offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
Versatile Mounting Options
The UniFi Switch can be placed on a desktop or mounted on a wall or in a rack.
Seamless Integration
The UniFi US-24 switch integrates seamlessly into the UniFi Software-Defined Networking (SDN) platform to create a highly scalable, end-to-end system of network devices across multiple locations — all controlled from a single interface.
Ubiquiti UniFi US-24 (NON-POE) - Technical Specifications
General
- Dimensions: 443 x 43 x 221 mm (17.44 x 1.69 x 8.70")
- Weight:
- Rack-Mount Brackets Excluded - 2.51 kg (5.53 lb)
- Rack-Mount Brackets Included - 2.60 kg (5.70 lb) - Networking Interfaces:
- (24) 10/100/1000 Mbps RJ45 Ethernet Ports
- (2) 1 Gbps SFP Ethernet Ports - Management Interface: (1) RJ45 Serial Port Out-of-Band, Ethernet In-Band
- Total Non-Blocking Throughput: 26 Gbps
- Switching Capacity: 52 Gbps
- Forwarding Rate: 38.69 Mpps
- Power Method: 100-240VAC/50-60 Hz, Universal Input
- Power Supply: AC/DC, Internal, 25W DC
- Max. Power Consumption: 25W
- LEDs per Port: Speed/Link/Activity
- Sound Level (Background noise level: 27.5 dBa):
- Fan Level: 0: 1.6 dBr
- Fan Level: 1: 9.2 dBr - ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
- Rack Mount: Yes, 1U High
- Shock and Vibration: ETSI300-019-1.4 Standard
- Operating Temperature: -5 to 40° C (23 to 104° F)
- Operating Humidity: 5 to 95% Noncondensing
- Certifications: CE, FCC, IC
