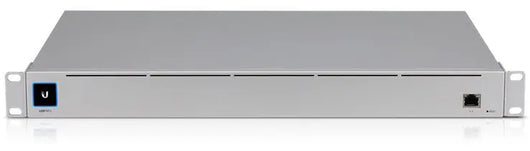

Ubiquiti UniFi SmartPower Redundant Power System (USP-RPS)
Ubiquiti UniFi SmartPower Redundant Power System (USP-RPS)
The Ubiquiti UniFi USP-RPS is a proprietary redundant power system designed to protect up to six UniFi SmartPower supported devices from sudden power supply module failure. The USP-RPS continually monitors all attached devices. In the event of an internal AC/DC power supply failure, failover is automatic so your network continues to operate with no interruption in service. With a 950W DC power budget, the USP-RPS can protect a variety of high-power devices, including UniFi PoE switches. An integrated 1.3" colour touchscreen LCM displays system information for convenient monitoring.
Ubiquiti UniFi USP-RPS; Key Features
- 6x USP DC output ports
- 1x Ethernet port
- 1U Rackmountable (kit included)
- 1.3" Touchscreen display with status information
- Managed by UniFi Network Controller version: 5.12.11 or later
General
- Dimensions: 442.40 x 325.60 x 43.70 mm (17.42 x 12.82 x 1.72")
- Weight: 5.500 kg (12.13 lb)
- Weight With Mount Brackets: 5.590 kg (12.32 lb)
- Interfaces:
- Networking: (1) 10/100/1000 Mbps RJ45 Port
- Management: Ethernet In-Band
- Power Output: (6) RPS DC Ports - Max. Power Consumption: 995W
- Power Method: (1) Universal AC Input, 100 to 240VAC
- Power Supply:
- Internal 350W AC/DC
- Internal 645W AC/DC - Supported Voltage Range: 100 - 240VAC
- Display: 1.3" Colour Touch Panel
- LED:
- System: Status
- RJ45: Link/Activity
- USP RPS: Activity - ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
- Operating Temperature: 5 to 45° C (23 to 113° F)
- Operating Humidity: 10 to 90% Noncondensing
- Certifications: CE, FCC, IC
RPS
- Total Output Power:
- 52VDC: 11.54A (600W)
- 11.5VDC: 30.44A (350W) - Max. Output Power per RPS Port:
- 52VDC: 11.54A (600W)
- 11.5VDC: 30.44A (350W)
Power Buget*
- UDM-Pro:
- 52V: 0
- 12V: 50W - USW-Pro-24:
- 52V: 0
- 12V: 30W - USW-Pro-24-PoE:
- 52V: 400W
- 12V: 30W - USW-Pro-48-PoE:
- 52V: 600W
- 12V: 50W
USP-Cable
- Length: 1.5 m (4.9 ft)
- Conductor Type: Tinned Copper
- Conductor Wire Gauge: (18) 16 AWG, (6) 24 AWG
- Insulation Type: PVC
- Insulation Thickness: 0.35 mm (0.014")
- Insulation Diameter: 2.0 mm (0.079")
- Jacket Material: PVC
- Jacket Outside Diameter: 9.5 × 23.0 mm (0.374 x 0.905")
