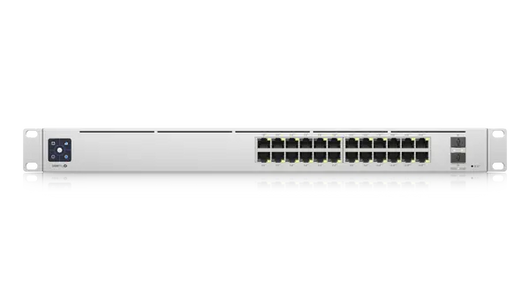

Ubiquiti UniFi 24 Port PoE Pro Switch (USW-Pro-24-POE)
The Ubiquiti UniFi USW Pro 24-POE is a configurable, Gigabit Layer 2 and Layer 3 switch with auto-sensing 802.3at PoE+ and 802.3bt PoE++.
Ubiquiti UniFi USW-24-POE Pro Switch Key Features
- 24x 10/100/1000 RJ45 ports
- (1-16) IEEE 802.3af/at PoE+ ports
- (17-24) 60W IEEE 802.3bt PoE++ ports
- 2 x 1/10G SFP+ Ethernet Ports
- 1.3” touch LCM to provide status information
- Compact, fanless design
16 PoE+ and eight PoE++ RJ45 ethernet ports have total 400W PoE budget, and two SFP+ ports offer 10Gbps uplink options. Near-silent cooling and a 1.3" touch LCM.
Note: Layer3 will be included in later software release
Near silent cooling
Ubiquiti’s new airflow design reduces the need for fan usage.
Powerful hardware and software
Ubiquiti UniFi Gen2 Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities. (*Layer 3 switching will be available in a future software release).
UniFi SmartPower RPS, USP-RPS, is Ubiquiti’s PSU failover system.
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device. One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
Touch screen display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.
Product Specifications
- Dimensions: 442.4 x 285.4 x 43.7 mm (17.42 x 11.24 x 1.72")
- Weight: 4.30 kg
- Weight with Rackmount brackets: 4.39 kg
- Interfaces: (24) 10/100/1000 RJ45 Ports
- Networking: (2) 1/10G SFP+ Ethernet Ports
- Management: Ethernet In-Band
- Power Method:
- Universal Input: 100-240VAC/50-60 Hz
- USP RPS DC Input: 52VDC, 7.69A; 11.5VDC, 2.61A - Power Supply: AC/DC, Internal, 450W
- Supported Voltage Range: 100 to 240VAC
- Max. Power Consumption (Excluding PoE Output): 50W
- LEDs:
- System: Status
- RJ45 Data Ports: PoE; Speed/Link/Activity
- SFP Data Ports: Link/Activity - ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
- Shock and Vibration: ETSI300-019-1.4 Standard
- Operating Temperature: -5 to 40° C (23 to 104° F)
- Operating Humidity: 10 to 90% Noncondensing
- Certifications: CE, FCC, IC
Sound level* (* Background noise level: 27.5 dBa)
- 25% PoE, 25° C: 0.9 dBr
- 50% PoE, 25° C: 7.3 dBr
- 100% PoE, 40° C: 18.8 dBr
PoE
- PoE Interfaces:
- Ports 1-16: POE+ IEEE 802.3af/at, (pins 1, 2+; 3, 6-)
- Ports 17-24: 60W PoE++ IEEE 802.3bt, (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-) - Max. PoE Wattage per Port by PSE:
- 802.3at: 32W
- 802.3bt: 64W - Voltage Range 802.3af Mode: 44-57V
- Voltage Range 802.3at Mode: 50-57V
