Ubiquiti EdgeSwitch ES-8-150W 8 Port 150W
Ubiquiti EdgeSwitch ES-8-150W 8 Port 150W

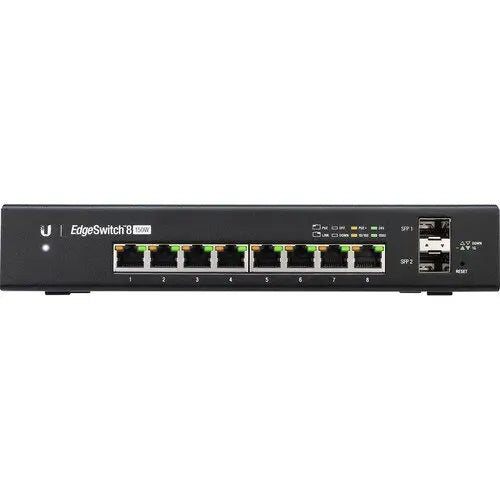

The Ubiquiti EdgeSwitch 8 Port 150W is a fully managed, fanless, high-performance, PoE+ Gigabit switch. It delivers powerful performance and intelligent switching with its 10 independent switching ports. A DC input option is included for flexibility.
Ubiquiti EdgeSwitch 8 150W (ES-8-150W) Key Features
- Total Non-Blocking Throughput 10 Gbps
- Gigabit RJ45 Ports 8
- SFP Ports 2
- Max. Power Consumption 150W
- PoE PoE+ and 24V Passive PoE
Gigabit Connectiviy
The compact EdgeSwitch features a versatile port configuration: eight Gigabit Ethernet ports that support PoE+ and two SFP ports for fiber connectivity. It can be placed on a desktop or mounted on a wall.
Convenient PoE+ Support
Sharing a total of 150W, eight Gigabit Ethernet ports offer auto-sensing IEEE 802.3af/at PoE/PoE+ or 24V passive PoE to simplify your infrastructure.
Optical Fiber Backhaul
The EdgeSwitch provides fiber connectivity options for your growing networks. Two SFP ports provide uplinks of up to 1 Gbps.
Powerful Performance
The EdgeSwitch delivers robust switching performance with its total, non-blocking throughput of up to 10 Gbps.
Advanced UI
The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
General
- Dimensions: 204 x 43 x 235 mm (8.03 x 1.69 x 9.25")
- Weight:
- Without Mount Brackets: 1.72 kg (3.79 lb)
- With Mount Brackets: 1.8 kg (3.96 lb) - Total Non-Blocking Throughput: 10 Gbps
- Switching Capacity: 20 Gbps
- Forwarding Rate: 14.88 Mpps
- Max. Power Consumption:
- Includes PoE Output: 150W
- Excludes PoE Output: 20W - Power Method:
- AC: 100-240VAC/50-60 Hz, AC/DC Integrated PSU, Universal Input
- DC: 42 to 56VDC External, (Self-Correcting Polarity Protection) Terminal Block Input - Power Supply: AC/DC, Internal, 150W DC
- LEDs Per Port:
- RJ45 Data Ports: PoE, Speed/Link/Activity
- SFP Data Ports: Speed/Link/Activity - Networking Interfaces:
- (8) 10/100/1000 Mbps RJ45 Ethernet Ports
- (2) 1 Gbps SFP Ethernet Ports - Management Interface: (1) RJ45 Serial Port, Ethernet In/Out Band
- Certifications:
- CE
- FCC
- IC - Wallmount: Yes
- ESD/EMP Protection: Air: ±24 kV, Contact: ±24 kV
- Operating Temperature:
- Internal AC/DC @ 150W: -25 to 45° C (-13 to 113° F)
- Internal AC/DC @ 100W: -25 to 55° C (-13 to 131° F)
- External DC: -25 to 60° C (-13 to 140° F) - Operating Humidity: 5 to 95% Noncondensing
- Shock and Vibration: ETSI300-019-1.4 Standard
- PoE Interfaces:
- POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
- 24VDC Passive PoE (Pins 4, 5+; 7, 8-) - Max. PoE+ Wattage per Port by PSE: 34.2W
- Voltage Range 802.3at Mode: 50–57V
- Max. Passive PoE Wattage per Port: 17W
- 24V Passive PoE Voltage Range: 20-27V
PoE Per Port
- PoE Interfaces:
- POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
- 24VDC Passive PoE (Pins 4, 5+; 7, 8-) - Max. PoE+ Wattage per Port by PSE: 34.2W
- Voltage Range 802.3at Mode: 50–57V
- Max. Passive PoE Wattage per Port: 17W
- 24V Passive PoE Voltage Range: 20-27V
