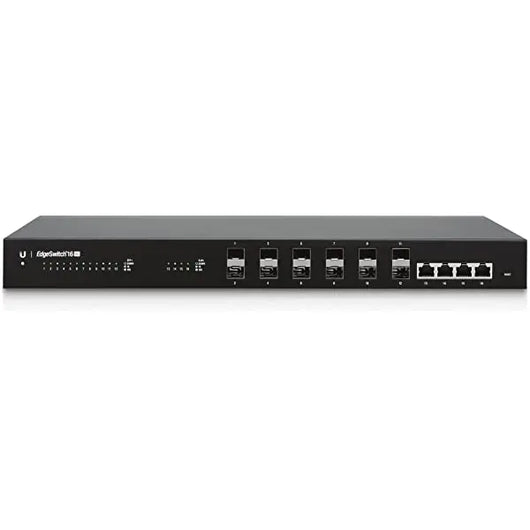

Ubiquiti EdgeSwitch 16 XG - ES-16-XG
![Ubiquiti EdgeSwitch 16 XG - ES-16-XG]()
![Ubiquiti EdgeSwitch 16 XG - ES-16-XG]()
Ubiquiti EdgeSwitch 16 XG - ES-16-XG
Available:Out of Stock
£0.00
Please Note: If you need a storage cabinet for this product, please select from the Available Product Options above. See All-Rack for full details.
Ubiquiti EdgeSwitch 16 XG - ES-16-XG
The Ubiquiti EdgeSwitch 16 XG is a fully managed, 10G fiber switch that enhances network capacity and provides high-bandwidth services to growing networks. The EdgeSwitch XG offers an extensive suite of advanced Layer 2 switching features and protocols, and also provides Layer 3 routing capability.
Ubiquiti EdgeSwitch 16 XG Key Features
- Non-Blocking Throughput Switching
- Maximum Performance and Low Latency
- 12 X 10G Ethernet SFP+ and 4 RJ45 Ports
10G High-Capacity Links
The EdgeSwitch 16 XG also offers maximum performance and low latency as an aggregation switch. For fiber connectivity, it features 12 SFP+ ports. For copper connectivity, the EdgeSwitch XG offers four RJ45 ports that support 10GBASE-T.
Advanced Enterprise Switching
The EdgeSwitch 16 XG uses a sophisticated operating system that provides advanced switching features, including VLAN tagging and link aggregation, and limited Layer 3 features, including static routing and DHCP server functionality.
Switching Performance
The EdgeSwitch 16 XG offers the forwarding capacity to simultaneously process traffic on all ports at line rate
without any packet loss. For its total, non-blocking throughput, the EdgeSwitch 16 XG supports up to 160 Gbps.
The EdgeSwitch 16 XG also offers maximum performance and low latency as an aggregation switch. For fiber connectivity, it features 12 SFP+ ports. For copper connectivity, the EdgeSwitch XG offers four RJ45 ports that support 10GBASE-T.
Advanced Enterprise SwitchingThe EdgeSwitch 16 XG uses a sophisticated operating system that provides advanced switching features, including VLAN tagging and link aggregation, and limited Layer 3 features, including static routing and DHCP server functionality.
Switching PerformanceThe EdgeSwitch 16 XG offers the forwarding capacity to simultaneously process traffic on all ports at line rate
without any packet loss. For its total, non-blocking throughput, the EdgeSwitch 16 XG supports up to 160 Gbps.
Ubiquiti EdgeSwitch ES-16-XG - Technical Specifications
General
- Dimensions: 443 x 221 x 43 mm (17.44 x 8.70 x 1.69")
- Weight:
- Rack-Mount Brackets Included: 2.71 kg (5.97 lb)
- Rack-Mount Brackets Excluded: 2.62 kg (5.78 lb) - Enclosure Characteristics: SGCC Steel
- Total Non-Blocking Throughput: 160 Gbps
- Switching Capacity: 320 Gbps
- Forwarding Rate: 238.10 Mpps
- Max. DC Power Consumption: 36W (Excludes SFP/SFP+ Modules)
- Power Method:
- AC: 100-240VAC/50-60 Hz, Universal Input
- DC: DC 56W, 25 to 16V, with 2.5 mm, DC Power Inline Connector - Supported Voltage Range: 100 to 240VAC 25 to 16VDC
- Power Supply: AC/DC, Internal, 56W DC
- LEDs Per Data Port: Speed/Link/Activity
- Networking Interfaces:
- (12) 1/10 Gbps SFP+ Ethernet Ports
- (4) 1/10 Gbps RJ45 Ethernet Ports - Management Interface: (1) RJ45 Serial Port, Ethernet In/Out Band
- Rackmount: Yes, 1U High
- ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
- Shock and Vibration: ETSI300-019-1.4 Standard
- Operating Temperature: -5 to 40° C (23 to 104° F)
- Operating Humidity: 5 to 95% Noncondensing
- Certifications:
- CE
- FCC
- IC
Please Note: If you need a storage cabinet for this product, please select from the Available Product Options above. See All-Rack for full details.
The EdgeSwitch 16 XG also offers maximum performance and low latency as an aggregation switch. For fiber connectivity, it features 12 SFP+ ports. For copper connectivity, the EdgeSwitch XG offers four RJ45 ports that support 10GBASE-T.
Advanced Enterprise Switching
The EdgeSwitch 16 XG uses a sophisticated operating system that provides advanced switching features, including VLAN tagging and link aggregation, and limited Layer 3 features, including static routing and DHCP server functionality.
Switching Performance
The EdgeSwitch 16 XG offers the forwarding capacity to simultaneously process traffic on all ports at line rate
without any packet loss. For its total, non-blocking throughput, the EdgeSwitch 16 XG supports up to 160 Gbps.
Ubiquiti EdgeSwitch 16 XG - ES-16-XG
The Ubiquiti EdgeSwitch 16 XG is a fully managed, 10G fiber switch that enhances network capacity and provides high-bandwidth services to growing networks. The EdgeSwitch XG offers an extensive suite of advanced Layer 2 switching features and protocols, and also provides Layer 3 routing capability.
Ubiquiti EdgeSwitch 16 XG Key Features
- Non-Blocking Throughput Switching
- Maximum Performance and Low Latency
- 12 X 10G Ethernet SFP+ and 4 RJ45 Ports
The EdgeSwitch 16 XG also offers maximum performance and low latency as an aggregation switch. For fiber connectivity, it features 12 SFP+ ports. For copper connectivity, the EdgeSwitch XG offers four RJ45 ports that support 10GBASE-T.
Advanced Enterprise SwitchingThe EdgeSwitch 16 XG uses a sophisticated operating system that provides advanced switching features, including VLAN tagging and link aggregation, and limited Layer 3 features, including static routing and DHCP server functionality.
Switching PerformanceThe EdgeSwitch 16 XG offers the forwarding capacity to simultaneously process traffic on all ports at line rate
without any packet loss. For its total, non-blocking throughput, the EdgeSwitch 16 XG supports up to 160 Gbps.
Ubiquiti EdgeSwitch ES-16-XG - Technical Specifications
General
- Dimensions: 443 x 221 x 43 mm (17.44 x 8.70 x 1.69")
- Weight:
- Rack-Mount Brackets Included: 2.71 kg (5.97 lb)
- Rack-Mount Brackets Excluded: 2.62 kg (5.78 lb) - Enclosure Characteristics: SGCC Steel
- Total Non-Blocking Throughput: 160 Gbps
- Switching Capacity: 320 Gbps
- Forwarding Rate: 238.10 Mpps
- Max. DC Power Consumption: 36W (Excludes SFP/SFP+ Modules)
- Power Method:
- AC: 100-240VAC/50-60 Hz, Universal Input
- DC: DC 56W, 25 to 16V, with 2.5 mm, DC Power Inline Connector - Supported Voltage Range: 100 to 240VAC 25 to 16VDC
- Power Supply: AC/DC, Internal, 56W DC
- LEDs Per Data Port: Speed/Link/Activity
- Networking Interfaces:
- (12) 1/10 Gbps SFP+ Ethernet Ports
- (4) 1/10 Gbps RJ45 Ethernet Ports - Management Interface: (1) RJ45 Serial Port, Ethernet In/Out Band
- Rackmount: Yes, 1U High
- ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
- Shock and Vibration: ETSI300-019-1.4 Standard
- Operating Temperature: -5 to 40° C (23 to 104° F)
- Operating Humidity: 5 to 95% Noncondensing
- Certifications:
- CE
- FCC
- IC
