Snom D865 VoIP phone

Available:In Stock
£203.85

Snom D865 Datasheet (PDF)

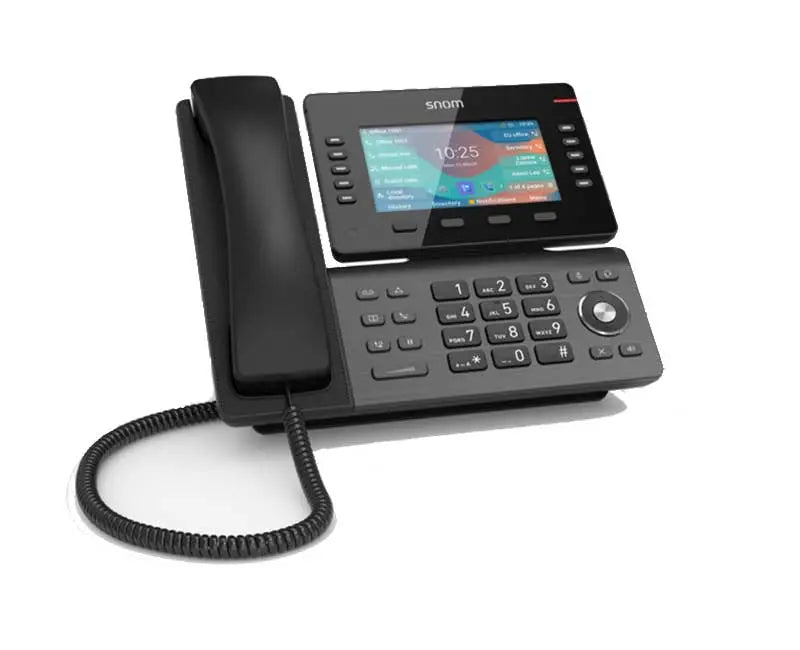

Snom D865 VoIP phone

The Snom D865 is particularly versatile and offers the right solution for most tasks in everyday office life. Equipped with WiFi, Bluetooth and 2 USB ports as well as 10 freely programmable function keys, the Snom D865 fulfils every wish.

In addition, it comes with a high-quality, 40° continuously adjustable 5" LCD screen, which always ensures an optimal display, regardless of the lighting situation at the workplace. The voice quality is, as usual with Snom, simply outstanding. Based on HD audio, it also works with advanced noise reduction. It is also hearing aid compatible.

The Snom D865 combines versatile technologies, excellent voice quality and an optimal design in one device.

snom D865 Key Features

  • Large tiltable 5 inch IPS color display
  • USB 2.0 high speed connection
  • 8 programmable function keys
  • Optimised noise reduction

Elegant & Tidy Design

The very high-quality design in gunmetal look and the consistently elegant as well as particularly clear design make the desk telephones of the D8xx series an eye-catcher on every desk.

High Res Colour Display

The tiltable 5-inch TFT colour display with a resolution of 1280 x 720 pixels guarantees optimum visibility of the display contents in any light.

Self-Labelling Function Keys

Thanks to the 10 programmable function keys, you can customise your Snom desk phone to suit your needs, allowing you to start calls or perform other important functions quickly and easily at the touch of a button.

    Snom D865 Desk Phone - Technical Specifications

    Basics

      • Operating system: Linux

      • 3-year warranty

      • Wall mountable

      • Part number/s: D865 | PN 00004536

    Dimensions and Weight

      • Dimensions (D x W x H, approx.)

      • - 45mm x 243mm x 210mm w/o footstand

      • - 165mm x 243mm x 193mm with footstand

      • Weight (approx.)

      • - 1,12kg with footstand

    Display and Indicators

      • Display

      • - TFT liquid crystal display (LCD), tiltable, truecolour, backlit

      • - Display size (W x H) 110 mm x 62 mm

      • - 5" (127 mm) display size (diagonal)

      • - Resolution 1280 x 720 Pixel

      • 15 LED indicators

      • - Call indication (1 x red LED)

      • - Message waiting indication (MWI) (1 x red LED message key)

      • - Function key indication (10 x multicolour LEDs)

      • - Audio key indication (1 x red LED, 2 x green LED)

    Keypad and Function Keys

      • 43 hard keys in total

      • Standard ITU telephone keypad: 12 keys with star and pound/hash key

      • 5-way navigation key

      • 14 function keys

      • - 4 context-sensitive function keys

      • - 10 freely programmable line / function keys (maximum 28 on 4 sides) with multicolor LEDs

      • 5 dedicated audio keys

      • - Mute key (1 x red LED), speakerphone key (1 x green LED), headset key (1 x green LED), volume control key

      • 7 dedicated function keys

      • - Cancel key, message key, transfer key, hold key, redial key, directory, conference

      • Keyboard lock

    Directory support and call features

      • 12 SIP identities / accounts

      • - Up to 12 simultaneous calls

      • Directory support

      • - LDAP (server-based directory)

      • - Local directory with up to 10,000 entries

      • - Import/export phone book (CSV, XML)

      • - XML phonebook support

      • Outgoing call features

      • - Speed dialling via function keys

      • - Speed dialling via keypad: 10 numbers

      • - URL dialling Local dial plan

      • - Redial (via dialed calls list)

      • - Automatic redial on busy

      • - Caller identification (CLIP)

      • - Calling Line Identification Restriction (CLIR)

      • - Call completion (busy/unreachable)

      • - Intercom

      • - Multicast paging

      • Incoming call features

      • - Call waiting/swapping

      • - Call blocking (deny list)

      • - Dynamic central blacklist check

      • - Blocking of anonymous calls

      • - Auto answer

      • - Call forwarding

      • - Call deflection

      • - Do Not Disturb (DND) mode

      • Active calls

      • - Mute microphone

      • - Hold

      • - Music on hold

      • - Blind call transfer

      • - Attended call transfer

      • - 4 + 1 local conferencing

      • - Call park / unpark

      • - Client Matter Code (CMC)

      • Related features

      • - Call history lists of missed, received, dialed, rejected, and deflected calls

      • - Extension monitoring, call pickup

    Audio devices, codecs, and features

      • Casing speaker

      • - Wideband audio

      • - Hearing aid compatible (HAC)

      • - Frequency range 150 Hz - 8 kHz

      • - Noise cancellation

      • Speakerphone mode

      • - Wideband audio

      • - Frequency range 100 Hz - 8 kHz

      • - Full duplex

      • - 2 x dedicated microphones

      • Audio Codecs

      • - G.711 (A-law, μ-law), G.722, G.723.1, G.726, G.729, Opus

      • Dual-tone multi-frequency signalling (DTMF)

      • - In-band, out-of-band, SIP-INFO

      • - Related features

      • - Comfort noise generator (CNG)

      • - Voice activity detection (VAD)

      • - Audio response time

      • - Adaptive jitter buffer

      • - Packet loss concealment (PLC)

    Interfaces and Connections

      • D865 Power Options

      • - Power over Ethernet (PoE), IEEE 802.3af, class 3

      • - Power adapter 100 - 240 V AC / 50 - 60 Hz | 5 V DC (SELV) / 2 A / 10 W 1

      • Wired Interfaces

      • - 1 x coaxial power adapter connector

      • - 2 x 1 Gbit RJ45-8P8C Ethernet port

      • - 1 x USB 2.0 Typ A

      • - 1 x RJ9-4P4C standard receiver connector

      • - 1 x RJ9-4P4C standard connector or USB port for wired headset connection

      • - 1 x RJ12-6P6C proprietary EHS connector

      • - 1 x RJ12-6P6C proprietary EHS connector

      • Wireless Interfaces

      • - Bluetooth 5.0

      • - WLAN  IEEE 802.11 n/ac

      • - DECT optional via Snom USB DECT Dongle

      • Sensors

      • - Ambient light sensor

      • - Hook switch sensor

    Technologies and Protocols

      • Network Technologies

      • - OpenVPN, VLAN (IEEE 802.1Q)

      • VoIP related protocols and techniques

      • - SIP (RFC 3261), SDP (RFC 3261), RTP (RFC 8866), RTCP (RFC 3550), RTCP-XR, SIP REFER method (RFC 3515), rport (RFC 3581), ENUM, ICE, STUN (RFC 5389)

      • Secure VoIP protocols

      • - SIPS (SIP over TLS), SRTP (RFC 3711), SRTCP

      • Network protocols

      • - IPv4 / IPv6 (Dual Stack), DHCP, NTP, LDAP, LLDP-MED, HTTP, TFTP, L2TP

      • Secure network protocols - TLS V1.3 incl. ciphers (forward secret & authenticated), HTTPS, IEEE 802.1X (EAP-TLS - RFC 5216)

      • Remote management protocols

      • - TR-069, TR-069 Annex G (formerly TR-111), TR-369 (USP)

    Environmental Conditions

      • - Operating ambient temperature: 0 ° C bis 35 ° C

      • - Nonoperating temperature: - 10 ° C bis 45 ° C

      • - Humidity (non-condensing): 5% - 95%

    Package Contents

      • - 1 x desk phone unit

      • - 1 x footstand

      • - 1 x corded receiver

      • - 1 x 1,5 m (5 ft) Ethernet cable

      • - 1 x Quick Installation Guide

    Accessories

      • - 00004544 | Wall mount kit (D8XX)

      • - 00004561 | Corded wideband receiver (D8XX)

      • - 00004570 | 10 W Power adapter

      • - 00004341 | A100M | Monaural Headset

      • - 00004342 | A100D | Binaural Headset

      • - 00004388 | A150 | DECT-Headset

      • - 00004387 | A170 | DECT-Headset

      • - 00002362 | EHS Advanced 2.0

    • - 00004386 | A230 | USB DECT dongle
