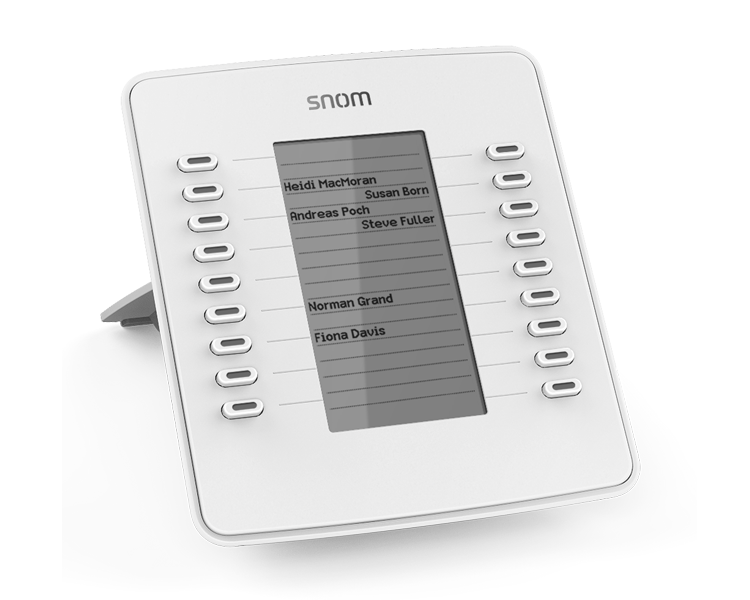

Snom D7 Expansion Module White
![Snom D7 Expansion Module White]()
![Snom D7 Expansion Module White]()
Snom D7 Expansion Module White Technical Specifications
Three D7 expansion modules can be daisy-chained to add up to 54 function keys to your phone. The D7 is the perfect addition to any Snom 7-series desk phone.
Snom D7 Expansion Module White Technical Specifications
Snom D7 Expansion Module White
Available:In Stock
£106.44
Snom D7 Expansion Module White
The Snom D7 Expansion Module White features 18 multi-color LED keys which can be programmed with all functions available known from snom phones. The high-resolution display provides a perfect visual interface which can be easily configured and labelled via the phone’s web interface or directly on the phone itself.
Key Features
- 18 highly configurable self-labeling LED keys
- High-resolution black & white display with backlight
- Daisy chain up to 3 modules
- Plug and play
- Power supplied by phone via USB port
Using the D7 could not be easier: simply connect the USB cable and it’s ready to use.
Three D7 expansion modules can be daisy-chained to add up to 54 function keys to your phone. The D7 is the perfect addition to any Snom 7-series desk phone.
Three D7 expansion modules can be daisy-chained to add up to 54 function keys to your phone. The D7 is the perfect addition to any Snom 7-series desk phone.
Snom D7 Expansion Module White Technical Specifications
Benefits
- High-resolution graphical display with backlight
- 18 freely programmable multi-color LED function keys
- Dual-angle footstand: 46° and 28°
- Daisy chainable
- Fully configurable via host phone
- Powered by host phone (1)
Type Approval
- CE Mark
- FCC Class B
- Safety IEC 60950, CB
Compatible with
- The D7 Expansion Module is compatible with all
snom 7-series phones with USB port
Installation
- Plug and Play
- Completely configurable via host phone
Features
- Dimensions in millimeters (approx.):
· 158 x 140 x 40 (LxWxD) w/o foot stand
· 158 x 140 x 200/220 mm (LxWxD) with foot stand - Weight (approx.): device 400g, footstand 120g
- Input voltage: 5Vdc (SELV)
- Power supply: USB or 5Vdc power adapter (3), 10 Watts
- USB 2.0 cable with angled type A plug
- USB 2.0 port, type A
- Environmental conditions:
·Ambient temperature: 0°C to 35°C (32°F to 95°F)
· Non-operation: -10°C to 45°C (14°F to 113°F)
· Humidity: 5% to 95% (non-condensing) - · Included in delivery:
· Base unit
· Foot stand
· Quick Start Guide - · Color: Anthracite gray or black
- Warranty: 2 Years
- Part Number:
00003924 (gray - all markets)
00004011 (black - all markets) - · Warranty: 2 Years
· Part Number: 00003924 (gray - all markets)
00004011 (black - all markets)
