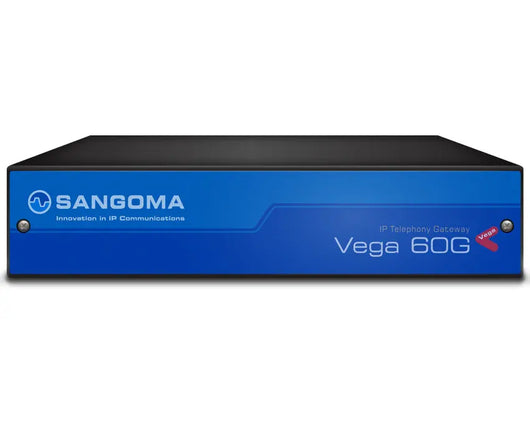

Sangoma Vega 60G V2 Gateway 4 FXO
![Sangoma Vega 60G V2 Gateway 4 FXO]()
![Sangoma Vega 60G V2 Gateway 4 FXO]()
Sangoma Vega 60G V2 Gateway 4 FXO
Available:In Stock
£369.96
Sangoma Vega 60G V2 Gateway 4 FXO
The Sangoma VEGA-60GV2-0004 is designed to simplify the integration of analog phonesystems or Basic Rate ISDN (BRI) devices to a VoIP network. It supports 4 FXO ports.
Sangoma VEGA-60GV2-0004 Key Features
- 4 FXO Ports
- Flexible Call Routing
- Emergency Backup with Enhanced Network Proxy
- Interoperability with a Wide Range of Legacy & IP Equipment
- Voice, FA, and Modem Support
- Automated Configuration with TR-069
Sangoma VEGA-60GV2-0004 - Technical Specifications
VoIP Interfaces
- SIP V1, V2
- Fax support – up to G3 FAX, T.38
- Modem support – up to V.90, G.711
- 8 VoIP channels for FXO / FXS
- 8 VoIP channels for BRI
- Audio Codecs: G.711 (a-law/μ-law), G.729a (8kbps), G.723.1 (5.3/6.4 kbps), G.726, T.38
Telephony Interfaces
- ETSI BRI:
- 2x or 4x S/T interfaces presented on RJ-45
- Point to point or point to multipoint
- Each interface configured NT or TE- High precision clock optional - Analog:
- All FXS and FXO ports presented on RJ-11
- 600R, 900R or CTR-21 line impedance
LAN Interfaces
- 1x RJ-45 Gigabit Ethernet 1000BaseT / 100BaseTx / 10BaseT, full / half duplex
- PoE option available on some models
- Dual LAN port option available
Additional Interfaces
- 1x USB port for storage
- 1x Serial console (RJ45) port (Serial cable provided)
Local Survivability
- Standalone proxy
- IP device survivability
- IP device call routing
- Emergency call routing
Telephony Features
- Call waiting
- Call forward – unconditional, busy, no-answer
- Call transfer – blind, consultative
- 3-way conference
- Do not disturb
- Message waiting indicator – audible, visual
- Music on hold
- Executive barge
- Caller ID presentation & screening
- SIP registration & digest authentication
Operations, Maintenance & Billing
- HTTP(S) web server
- RADIUS accounting & login
- Remote firmware upgrade
- Auto configuration upgrade
- SNMP V1, V2 & V3
- Syslog
- TR-069 / TFTP / FTP support
- VT100 – RS232 / Telnet / SSH
- Voice readback of IP parameters
Routing & Numbering
- Direct Dialing In (DDI)
- SIP registration to multiple proxies
- Dial planner – sophisticated call routing capabilities, standalone or gatekeeper / proxy integration
- FXS ports support call waiting & call transfer (blind & consultative)
- NAT traversal
Security & Encryption
- Media – SRTP
- Management – HTTPS, SSH Telnet
- SIP – TLS
- Configurable user login passwords
Call Quality
- Adaptive jitter removal
- Silence suppression
- Type of Service (ToS)
- Differentiated Services (DiffServ)
- Comfort noise generation
- 802.1p / Q VLAN tagging
- QoS statistics reporting
- Echo cancellation (G.168 up to128ms tail)
Certification
- EMC (CLASS B): EN55022, EN55024 & FCC Part 15
- Safety: EN60950, IEC60950 & UL60950
Environmental
- 0° .. 40°C
- 0% .. 90% humidity (non-condensing)
FXS Line Length
- 2000ohm, up to 8km (depending on environment)
LED Indicators
- LAN: Speed/Activity
Dimensions
- 1U: 200 x 127 x 43mm (WxDxH)
- Weight: .8kgs (1.7lbs)
Power Supply
- External 12V 24W AC/DC adapter
