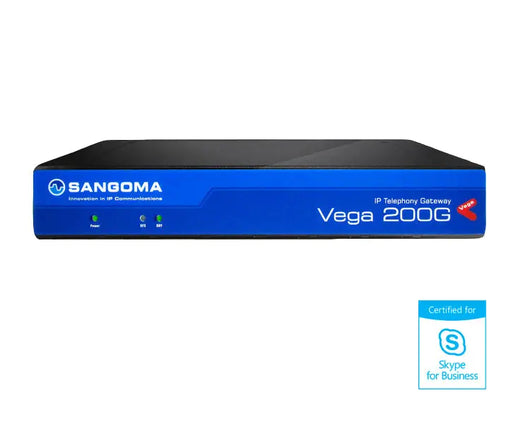

Sangoma Vega 200G Dual E1/T1 Digital Gateway
Sangoma Vega 200G Dual E1/T1 Digital Gateway
The Sangoma Vega 200G VoIP gateway connects digital telephony equipment to IP networks. Each unit purchased is factory configured with capacity for 60 simultaneous calls. This unit cannot be expanded beyond 60 simultaneous calls.
The available Sangoma Resiliency Enablement Suite (SRES) makes the Vega 200G the most resilient gateway in it is class. In the event of a WAN failure, IP phones behind the Vega gateway can continue to call each other, be routed to a backup switch or connected directly to the PSTN. In addition, the use of the Sangoma Network Appliance Provisioning (SNAP) tool makes the Vega 200G the easiest to provision gateway on the market.
Sangoma Vega 200G Key Features
- Fixed Configuration of 60 VoIP Calls
- Supports dual gigabit Ethernet connections
- Local Survivability
- Available SRES and SNAP Support
- Voice FAX and Modem Support
- Flexible Call Routing for Fallback and Least Cost Routing
- Emergency PSTN Backup
- Interoperability with a Wide Range of Legacy and IP Equipment
Each E1/T1 interface can be independently configured as network side or terminal side. The Vega 200G gateway can therefore be connected to a PBX or the PSTN. This configuration provides:
- No disruption to the configuration of existing equipment
- Flexibility & choice for call routing
VoIP Interfaces
- SIP
- Audio codecs:
• G.711 (a-law/μ-law) (64 kbps)
• G.729a (8kbps)
• G.723.1 (5.3/6.4 kbps)
• G.726 - FAX Support – up to G3 FAX, using T.38
- Modem Support – up to V.90, using G.711
- Up to 60 VoIP channels
Telephony Interfaces E1
- Euro-ISDN
- ISO QSIG
- VN4
- CAS R2MFC
Telephony Interfaces T1
- NI1/NI2
- AT&T 5ESS
- DMS100
- CAS (RBS)
- ISO QSIG
LAN Interfaces
- 2 RJ-45s, 1000BaseT / 100 BaseTX / 10 BaseT, full / half duplex
Identification
- Caller ID presentation
Caller ID screening allows connections to be accepted only from
selected call sources
SIP Registration & Digest Authentication
Operations, Maintenance and Billing
- HTTP(S) web server
RADIUS Accounting & Login
Remote firmware upgrade:
• Auto code upgrade • Auto configuration upgrade
SNMP V1, V2 & V3
TFTP/FTP support
VT100 – RS232/Telnet/SSH
Routing and Numbering
- Dial Planner – sophisticated call routing capabilities, standalone or
gatekeeper/proxy integration
Direct Dialing In (DDI)
SIP registration to multiple proxies
NAT traversal
Call Quality
- Adaptive jitter removal
Comfort noise generation
Silence suppression
802.1p/Q VLAN tagging
Differentiated Services (DiffServ)
Type of Service (ToS)
QoS statistics reporting
Echo cancellation (G.168 up to 128ms)
Security and Encryption
- Management – HTTPS, SSH Telnet
Configurable user login passwords
SIP/TLS and SRTP
Certification
- EN55022
- EN55024
- FCC Part 15
- AS/NZS3548
- EN60950
- IEC60950
- UL60950
- AS/NZS60950
- E1: TBR4
- T1: FCC Part 68
- T1: CS-03
- VCC
Environmental
- 0° .. 40°C
- 0% .. 90% humidity (non-condensing)
Indicators
- ISDN: NT/TE & Link up
- LAN: speed / activity
Dimensions
- 270mm(W) x 155mm(D) x 43mm(H)
- Weight: 1.2kgs
- Rackmount ears supplied: 107mm (2-pieces)
External Power Supply
- 100..240 VAC, 47..63 Hz, 1..0.5 A
Program Storage
- Code and configuration data are stored in FLASH and executed
from RAM
