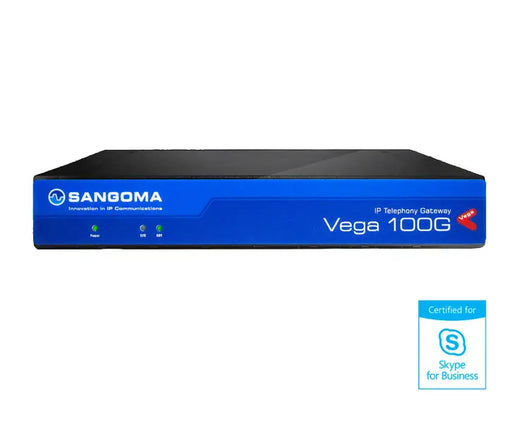

Sangoma Vega 100G Single E1/T1 Digital Gateway VS0164
Sangoma Vega 100G Single E1/T1 Digital Gateway VS0164
The Sangoma Vega 100G VoIP gateway connects digital telephony equipment to IP networks. Each unit purchased is factory onfigured with capacity for 30 simultaneous calls. This unit cannot be expanded beyond 30 simultaneous calls.
Sangoma Vega 100G Key Features
- ETSI, VN4, ISDN
- NI1, NI2, AT&T 5ESS, DMS100
- ISO QSIG Basic Call & QSIG feature transparency
- Channel Associated Signalling (CAS)
- R2 MFC
The available Sangoma Resiliency Enablement Suite (SRES) makes the Vega 100G the most resilient gateway in it is class. In the event of a WAN failure, IP phones behind the Vega gateway can continue to call each other, be routed to a backup switch or connected directly to the PSTN. In addition, the use of the Sangoma Network Appliance Provisioning (SNAP) tool makes the VS0164 the easiest to provision gateway on the market.
VoIP Interfaces (SIP)
- Audio codecs:
• G.711 (a-law/μ-law) (64 kbps)
• G.729a (8kbps)
• G.723.1 (5.3/6.4 kbps)
• G.726 - FAX Support – up to G3 FAX, using T.38
- Modem Support – up to V.90, using G.711
- Up to 30 VoIP channels
Telephony Interfaces
- Primary Rate ISDN (User configurable NT/TE):
- E1
• Euro-ISDN
• ISO QSIG
• VN4
• CAS R2MFC - T1
• NI1/NI2
• AT&T 5ESS
• DMS100
• CAS (RBS)
• ISO QSIG
LAN Interfaces
- 2 RJ-45s, 1000BaseT / 100 BaseTX / 10 BaseT, full / half duplex
Identification
- Caller ID presentation
- Caller ID screening allows connections to be accepted only from
selected call sources - SIP Registration & Digest Authentication
Operations, Maintenance and Billing
- HTTP(S) web server
- RADIUS Accounting & Login
- Remote firmware upgrade:
• Auto code upgrade • Auto configuration upgrade - SNMP V1, V2 & V3
- TFTP/FTP support
- VT100 – RS232/Telnet/SSH
Routing and Numbering
- Dial Planner – sophisticated call routing capabilities, standalone or
gatekeeper/proxy integration - Direct Dialing In (DDI)
- SIP registration to multiple proxies
- NAT traversal
Call Quality
- Adaptive jitter removal
- Comfort noise generation
- Silence suppression
- 802.1p/Q VLAN tagging
- Differentiated Services (DiffServ)
- Type of Service (ToS)
- QoS statistics reporting
- Echo cancellation (G.168 up to 128ms)
Security and Encryption
- Management – HTTPS, SSH Telnet
- Configurable user login passwords
- SIP/TLS and SRTP
Certification
- EMC (CLASS B) SAFETY TELECOMS (ISDN)
EN55022
EN55024
FCC Part 15
AS/NZS3548
EN60950
IEC60950
UL60950
AS/NZS60950
E1: TBR4
T1: FCC Part 68
T1: CS-03
VCCI
Environmental
- 0° .. 40°C
- 0% .. 90% humidity (non-condensing)
Indicators (LED)
- Power
- ISDN: NT/TE & Link up
- LAN: speed / activity
Dimensions
- 270mm(W) x 155mm(D) x 43mm(H)
- Weight: 1.2kgs
- Rackmount ears supplied: 107mm (2-pieces)
External Power Supply
- 100..240 VAC, 47..63 Hz, 1..0.5 A
Program Storage
- Code and configuration data are stored in FLASH and executed
from RAM
