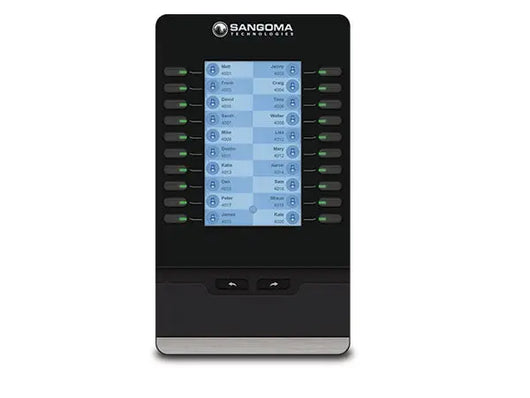

Sangoma EXP100 Expansion Module
![Sangoma EXP100 Expansion Module]()
![Sangoma EXP100 Expansion Module]()
Sangoma EXP100 Expansion Module - Technical Specifications
Physical Features
The Sangoma EXP100 features a large 160x320 graphic LCD displaywith 2 pages of 20 programmable hard keys delivering upto 40 programmable features. Dual-color LED and 2 controlkeys for fast page switching make the EXP100 simplify communications.
Expandability
Extend your investment by daisy-chaining up to 6 expansion modules for up to 240 programmable keys.
(Phone Not included)
Sangoma EXP100 Expansion Module - Technical Specifications
Sangoma EXP100 Expansion Module
Available:In Stock
£134.04
Sangoma EXP100 Expansion Module Datasheet (PDF)
Sangoma EXP100 Expansion Module
The Sangoma EXP100 Expansion Module is designed specifically for users who manage high call volumes, the Sangoma EXP100 expansion module delivers single-button access to contacts / extensions and maximizes productivity of the telephone attendant by efficiently dispatching inbound calls.
Sangoma EXP100 Key Features
- Large 160x320 Graphic LCD Display
- 20 Programmable Hard Keys for Up to 40
- Programmable Features
- 2 x Control Keys for Quickly Switching Pages
- Daisy-chain Up to 6 Modules for Up to 240
- Programmable Keys *Up to 50 BLFs
- Compatible with Sangoma s500 & s700 IP Phones
- Wall Mountable
- 2x RJ45 Ports (1x Uplink & 1x Downlink)
The EXP100 is compatible with the Sangoma s500 and s700 series.
Physical Features
The Sangoma EXP100 features a large 160x320 graphic LCD displaywith 2 pages of 20 programmable hard keys delivering upto 40 programmable features. Dual-color LED and 2 controlkeys for fast page switching make the EXP100 simplify communications.
Expandability
Extend your investment by daisy-chaining up to 6 expansion modules for up to 240 programmable keys.
(Phone Not included)
Physical Features
The Sangoma EXP100 features a large 160x320 graphic LCD displaywith 2 pages of 20 programmable hard keys delivering upto 40 programmable features. Dual-color LED and 2 controlkeys for fast page switching make the EXP100 simplify communications.
Expandability
Extend your investment by daisy-chaining up to 6 expansion modules for up to 240 programmable keys.
(Phone Not included)
Sangoma EXP100 Expansion Module - Technical Specifications
PSTN Protocols
- 160x320 graphic LCD with 16-level grayscales
- LCD backlight
- Two page views are possible
- Different icons for each function shown on the LCD
- Local GUI controlled by host Sangoma s500 / s700 phone
Feature Keys
- 20x physical keys each with a dual-color LED
- 20x additional keys through page switch
- 2x independent control keys
- 20x additional keys through page switch
- Daisy-chain up to 6 modules for up to 240
- programmable keys *Up to 50 BLFs
Certication
- EMC: FCC Part 15 Class B, EN 55022, EN 55024,EN 61000
- Safety: EN 60950
Connectivity
- 2x RJ45 ports (1x uplink and 1x downlink)
Environmental
- Operating humidity: 10~95%
- Operating temperature: -10~50°C
Dimensions
- Box Size: 140mm (W) x 251mm (D) x 91mm (H)
- Shipping Weight: 1.18kgs (2.6lbs)
Power
- Power provided by host phone via EHS port when using
up to 1 expansion module - External universal AC adapter *Optional
AC 100~240V input
DC 5V/1.2A output
Sangoma EXP100 Expansion Module Datasheet (PDF)
Sangoma EXP100 Expansion Module
The Sangoma EXP100 Expansion Module is designed specifically for users who manage high call volumes, the Sangoma EXP100 expansion module delivers single-button access to contacts / extensions and maximizes productivity of the telephone attendant by efficiently dispatching inbound calls.
Sangoma EXP100 Key Features
- Large 160x320 Graphic LCD Display
- 20 Programmable Hard Keys for Up to 40
- Programmable Features
- 2 x Control Keys for Quickly Switching Pages
- Daisy-chain Up to 6 Modules for Up to 240
- Programmable Keys *Up to 50 BLFs
- Compatible with Sangoma s500 & s700 IP Phones
- Wall Mountable
- 2x RJ45 Ports (1x Uplink & 1x Downlink)
Physical Features
The Sangoma EXP100 features a large 160x320 graphic LCD displaywith 2 pages of 20 programmable hard keys delivering upto 40 programmable features. Dual-color LED and 2 controlkeys for fast page switching make the EXP100 simplify communications.
Expandability
Extend your investment by daisy-chaining up to 6 expansion modules for up to 240 programmable keys.
(Phone Not included)
Sangoma EXP100 Expansion Module - Technical Specifications
PSTN Protocols
- 160x320 graphic LCD with 16-level grayscales
- LCD backlight
- Two page views are possible
- Different icons for each function shown on the LCD
- Local GUI controlled by host Sangoma s500 / s700 phone
Feature Keys
- 20x physical keys each with a dual-color LED
- 20x additional keys through page switch
- 2x independent control keys
- 20x additional keys through page switch
- Daisy-chain up to 6 modules for up to 240
- programmable keys *Up to 50 BLFs
Certication
- EMC: FCC Part 15 Class B, EN 55022, EN 55024,EN 61000
- Safety: EN 60950
Connectivity
- 2x RJ45 ports (1x uplink and 1x downlink)
Environmental
- Operating humidity: 10~95%
- Operating temperature: -10~50°C
Dimensions
- Box Size: 140mm (W) x 251mm (D) x 91mm (H)
- Shipping Weight: 1.18kgs (2.6lbs)
Power
- Power provided by host phone via EHS port when using
up to 1 expansion module - External universal AC adapter *Optional
AC 100~240V input
DC 5V/1.2A output
