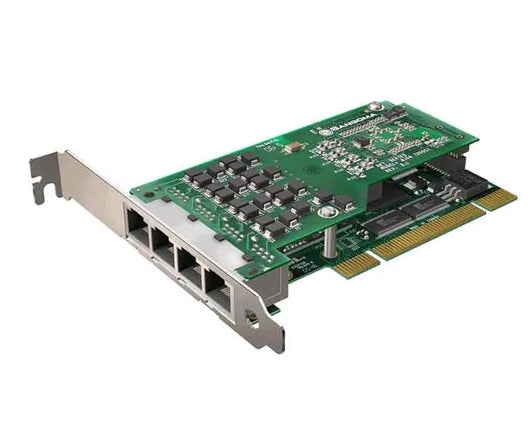

Sangoma A104D PCI PRI ISDN Card
Sangoma A104D PCI PRI ISDN Card
Please Note: This is a PCI Card. Please make sure your motherboard/server is compatible with this product.
The A104D PCIx has hardware based echo cancellation across 120 channels The sandwich DSP card on the "d" model features Octasic's certified carrier-grade algorithms providing carrier grade echo cancellation and Voice Quality Enhancement (VQE) functions. Supporting 32-672 channels G.168-2002 echo cancellation, a minimum of 1024 taps for a 128ms tail/channel on all channel densities, the system also supports Octasic music protection, acoustic echo control and adaptive noise reduction. The "d" model also features on-board DTMF decoding and tone recognition.
The A104 is the, quad port version of Sangoma's range of Advanced, Flexible Telecommunications (AFT) hardware designed for optimum support of voice and data over T1, E1 and J1. The A104 provides full speed 132 Mbps PCI bus transfer with FPGA and DSP based processing to unload the host CPU in demanding environments such as soft PBX/IVR voice applications. Compatible with both the 3.3v and 5v PCI bus, A104 cards operate in all commercially available motherboards sharing IRQs properly with themselves and all other PCI compatible devices, so you never have to worry about hardware compatibility issues. Like all the Sangoma AFT Series, the A104 is field upgradeable to take advantage of the hardware and software improvements as they become available. Optional Modes The A104 and drivers fully support TDM voice gateways for the Asterisk® , Yate® , OPAL® PBX/IVR projects, as well as other Open Source and proprietary PBX/Switch/IVR/VoIP gateway applications.
Full channelized mode to act as major network hub for sub-DS1 remotes. The A104 can support any configuration of up to 124 remote 64kbps connections carrying Frame Relay, PPP or HDLC data. Timeslots can be concatenated to support remote fractional T1/E1/J1 sites in any combination. Raw bitstream interfaces can be used to support arbitrary non standard line protocols such as non-byte aligned monosynch or bisynch. Mixed Voice/Data mode:
Sangoma A104D - Technical Specifications
General Features
T1/E1 Status alarms
Line protocols
Operating systems
Higher level protocols
Warranty
Certification
Diagnostic Tools
Production quality
|
