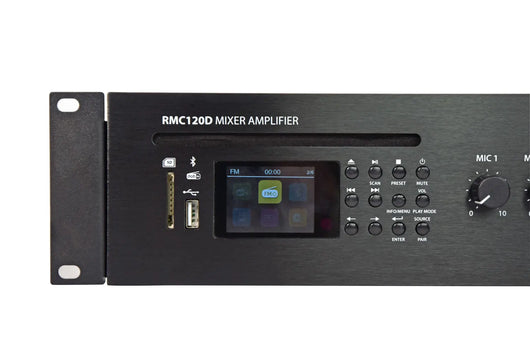

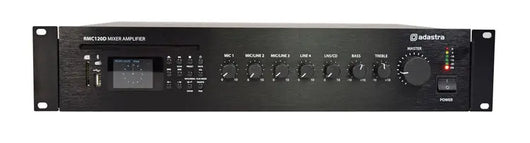

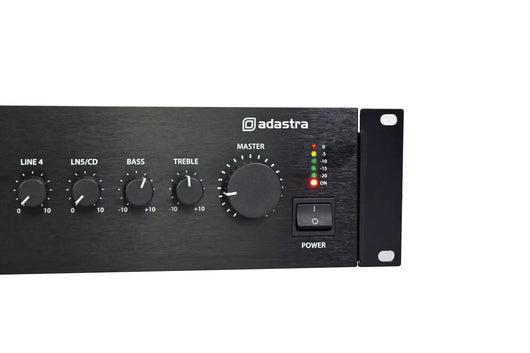

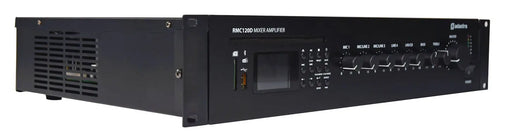

RMC120D Mixer-Amp 100V with CD, DAB+, BT and mp3 Player
RMC120D Mixer-Amp 100V with CD, DAB+, BT and mp3 Player
100V line mixer-amplifier with built-in multi-format media player. 5 input channels include a balanced XLR microphone input with switchable phantom power and Vox override, 2 mic/line jack inputs and 2 RCA line inputs. A powerful class AB amplifier section is paired with a digital switch-mode power supply and 100V transformer for reliable power delivery from an energy efficient power section. A built-in CD player provides audio playback alongside a USB/SD media player with an integral DAB+ and FM radio tuner. Additional Bluetooth® receiver enables pairing to a smartphone for wireless playback of stored tracks. Bass & Treble EQ and Master volume control the overall output, which can power either low impedance or 100V line speakers. A comprehensive solution for commercial sound installations.
- 5 input channels
- DAB+ and FM radio tuner
- Slot feed CD player
- Bluetooth connectivity
- USB/SD mp3 player
- 100V or 4-16 Ohms output
- Supplied with 19" rack-mount ears
- Optional remote control available SPR000708
- Power supply170-264Vac, 50Hz (IEC)
- FuseT3.15A
- DC power24Vdc (screw terminals)
- Power : rms120Wrms (100V or 4 Ohms)
- InputsMic XLR, 2 x mic/line jack, 2 x RCA line
- Input sensitivity : mic 1 (balanced)-53dBV
- Input impedance : mic 15k Ohms
- Input sensitivity : line (unbalanced)-15dBV (-18.5dBV line 5)
- Input impedance : inputs 2-51k Ohms
- Line outputRCA
- Speaker outputs100V / 4-16 Ohms / COM terminals
- Bluetooth version5.0
- ControlsMic1, mic/line2+3, line4+5 (USB), bass, treble, master volume
- Equaliser : bass100Hz ±10dB
- Equaliser : treble10kHz ±10dB
- Rear panel switchesMic/Line (2 + 3), Phantom, Vox
- Phantom power+20V (MIC 1 input)
- THD<1.0%
- Dimensions433 x 320 x 89mm
- Weight7kg
Trade Information
- SKU953.142UK
- Barcode EAN5015972231166
- Tariff code8518500090
- Country of originChina (CN)
- Packaging typeBox Label
- Package dims123 x 410 x 535mm
- Package quantity1 unit
- Nett weight7.3800kg
- Gross weight9.0000kg
- Carton dims291 x 405 x 550mm
- Carton quantity2 units
- Carton weight19.30kg
