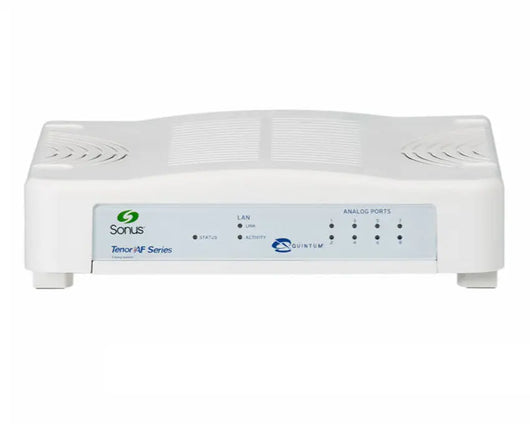

Ribbon Communications Tenor AFT200 2FXO VoIP Gateway
![Ribbon Communications Tenor AFT200 2FXO VoIP Gateway]()
![Ribbon Communications Tenor AFT200 2FXO VoIP Gateway]()
Hardware Specifications
Ribbon Communications Tenor AFT200 2FXO VoIP Gateway
Available:In Stock
- Category:Best selling products,New products
£582.00
Ribbon Communications (Formally Sonus Quintum) Tenor AFT200 2FXO VoIP Gateway
The Ribbon Communications AFT200 2FXO VoIP Gateway allows small businesses, SOHOs, and branch offices with analog telephony infrastructures the ability to utilise the VoIP network to reduce costs.
Key Features
- Telephony Interfaces: 2 x FXO
- Auxiliary Ports: 10/100 Ethernet, RS-232, DIAG
- Concurrent Calls: up to 2
- Protocol Support: DHCP, DNS, H.323, SIP, SNMP, TCP, UDP
- SIP Endpoints: up to 40
- Chassis Type: 1U form factor
- Echo Cancellation: yes
- Manageable: yes
The Ribbon Communications AFT200 2FXO VoIP Gateway is the simplest path to smarter, better communications for small offices and branch offices: superior Voice over IP sound quality, reliable security, cost-saving features and full integration with your existing PBXs and analog phones.
The Ribbon Communications AFT200 2FXO VoIP Gateway supports any-to-any connectivity between analog, H.323 and SIP devices, enabling branch offices to rapidly migrate analog phones onto SIP-based networks and communicate seamlessly with Sonus session border controllers (SBCs). Each AF Series switch supports up to 40 unique endpoints and 900 calls per hour, making it the right choice for multi-protocol communications in small but busy locations.
Ribbon Communications AFT200 2FXO VoIP Gateway - Technical Specifications
Hardware Specifications
System Capabilities (per Switch)
- Sessions
- Up to eight simultaneous VoIP calls
- Maximum call rate: 900 calls per hour
- Business Continuity/Survivability
(for AFM and AFT Series only)
- SIP outbound proxy
- Supports up to 40 SIP endpoints
- AFT200 = 2 VoIP calls = 2 FXO
Management Capabilities
- Operations, Administration & Management
- Auto-provisionable
- GUI-based Configuration Manager for multiple, remote switches
- GUI-based alarm monitoring, call monitoring and CDR (call detail record) monitoring
- Remote management via external
- Remote Management Session Server
- SNMPv2 Agent
- Command Line Interface (CLI) configuration via Telnet or RS-232 connection
- Call Detail Record (CDR) generation
- Authentication
- IVR/RADIUS server support for AAA with integrated multilingual IVR+
- ANI authentication (Types 1 and 2)
Media Services
- Auto codec negotiation: G.711, G.723.1, G.726, G.729a/b
- Modem support with G.711
- G.168 Echo Cancellation with standard 128 ms tail length
- Adaptive Voice Activity Detection (VAD)
- Comfort Noise Generation (CNG)
- Fax support: Group III at 2.4, 4.8, 7.2, 9.6 and 14.4 Kbps using industry standard T.38 (Super G3 compatible up to 33.6 Kbps)
- Automatic call type detection – voice, fax or modem
Signaling
- Any-to-any connectivity: SIP<->SIP,
SIP<->H.323, H.323<->H.323, TDM<->TDM,
SIP<->TDM, H.323<->TDM - Tandem/TDM switching
- Support for multiple SIP User Agents
(RFC 3261) - SIP supplementary services
- DTMF signaling via RFC 2833 or SIP Info
- SIP header manipulation: automatic appending and stripping of digits to dialed numbers
- Loop Start, Reverse Battery and Battery Disconnect
- Coding: A law, I law
Protocol Support
- DHCP
- DNS
- H.323
- SIP
- SNMP
- TCP
- UDP
Routing/Policy
- Transparent MultiPath Call Routing
- Least Cost Routing (via Sonus PSX™ Centralized Routing and Policy Server)
- Forced IP routing and IP port mapping
- Four types of configurable routing databases: Bypass Directory Numbers, Hunt Local Directory Numbers, Hop-Off Directory Numbers and Static Routes
- Multiple dial plan options: public/private dial plan, user-programmable dial plan
- Answer and disconnect supervision
- Pass-through support for calls to tollfree, local and special service numbers (e.g., emergency services)
- Type 1 Caller ID/Name Support
(Telcordia, ETSI, NTT and DTMF) - SIP REFER method
Security
- NATAccess™ network address translation firewall protection
- IP packet filtering
- G.168 Echo Cancellation with standard 128 ms tail length
- Adaptive Voice Activity Detection (VAD)
- Comfort Noise Generation (CNG)
- Fax support: Group III at 2.4, 4.8, 7.2, 9.6 and 14.4 Kbps using industry standard T.38 (Super G3 compatible up to 33.6 Kbps)
- Automatic call type detection – voice, fax or modem
Quality of Service
- Adaptive jitter buffer
- Packet loss concealment
- IP Type of Service (TOS) and DiffServ support
- PacketSaver™ multiplexing technology: Reduces bandwidth consumption up to 57% by combining voice packets from multiple calls into a single packet
Package Features
- Qty/CTN: 5 PCS
- N.W/CTN: 6.3kg
- G.W/CTN: 7.0kg
- Giftbox size: 246mm*223mm*120mm
- Carton Meas: 627mm*256mm*235mm
Hardware Specifications
Front Panel
- Status Indicators Front Panel LEDs
- Operational Status
- LAN Link
- LAN Activity
- Port(s) In Use
Rear Panel
- Standard RJ-45 LAN Interface (IEEE 802.3) for 10 BASE-T or 100 BASE-TX connections
- Two, four, six or eight standard RJ-11 connectors for analog line/trunk interfaces
- RS-232 connector for PC console
- DIAG connector for software diagnostics
Chassis
- 1U, rack mount
- Inches: 8.25 Wide x 2.0 High x 7.0 Deep
- Centimeters: 21.0 Wide x 5.1 High x 18.73 Deep
AC Power Option
- 100-240 VAC, 50-60 Hz
- Max power consumption: 22W
Operating Altitude
- 10,000 ft. (3,000 m.)
Weight Maximum Fully Populated
- 1.3 lbs. (0.6 kg)
Environmental
- 5˚ to 40˚ C operating
- -10˚ to 60˚ storage
- 20 to 80% non-condensing operating humidity
Industry Standards Support
- Telco: FCC Part 68, AS/ACIF S003,
CS03, JATE AS/ACIF S002:2001 - EMC: FCC Part 15 Class B, EN55022,
EN55024, EN61000-2-3, EN61000-3-3,
AS/NZS3260 - Safety: UL60950, EN60950, AS/
NZS60950
Ribbon Communications (Formally Sonus Quintum) Tenor AFT200 2FXO VoIP Gateway
The Ribbon Communications AFT200 2FXO VoIP Gateway allows small businesses, SOHOs, and branch offices with analog telephony infrastructures the ability to utilise the VoIP network to reduce costs.
Key Features
- Telephony Interfaces: 2 x FXO
- Auxiliary Ports: 10/100 Ethernet, RS-232, DIAG
- Concurrent Calls: up to 2
- Protocol Support: DHCP, DNS, H.323, SIP, SNMP, TCP, UDP
- SIP Endpoints: up to 40
- Chassis Type: 1U form factor
- Echo Cancellation: yes
- Manageable: yes
The Ribbon Communications AFT200 2FXO VoIP Gateway is the simplest path to smarter, better communications for small offices and branch offices: superior Voice over IP sound quality, reliable security, cost-saving features and full integration with your existing PBXs and analog phones.
The Ribbon Communications AFT200 2FXO VoIP Gateway supports any-to-any connectivity between analog, H.323 and SIP devices, enabling branch offices to rapidly migrate analog phones onto SIP-based networks and communicate seamlessly with Sonus session border controllers (SBCs). Each AF Series switch supports up to 40 unique endpoints and 900 calls per hour, making it the right choice for multi-protocol communications in small but busy locations.
System Capabilities (per Switch)
- Sessions
- Up to eight simultaneous VoIP calls
- Maximum call rate: 900 calls per hour
- Business Continuity/Survivability
(for AFM and AFT Series only)
- SIP outbound proxy
- Supports up to 40 SIP endpoints
- AFT200 = 2 VoIP calls = 2 FXO
Management Capabilities
- Operations, Administration & Management
- Auto-provisionable
- GUI-based Configuration Manager for multiple, remote switches
- GUI-based alarm monitoring, call monitoring and CDR (call detail record) monitoring
- Remote management via external
- Remote Management Session Server
- SNMPv2 Agent
- Command Line Interface (CLI) configuration via Telnet or RS-232 connection
- Call Detail Record (CDR) generation
- Authentication
- IVR/RADIUS server support for AAA with integrated multilingual IVR+
- ANI authentication (Types 1 and 2)
Media Services
- Auto codec negotiation: G.711, G.723.1, G.726, G.729a/b
- Modem support with G.711
- G.168 Echo Cancellation with standard 128 ms tail length
- Adaptive Voice Activity Detection (VAD)
- Comfort Noise Generation (CNG)
- Fax support: Group III at 2.4, 4.8, 7.2, 9.6 and 14.4 Kbps using industry standard T.38 (Super G3 compatible up to 33.6 Kbps)
- Automatic call type detection – voice, fax or modem
Signaling
- Any-to-any connectivity: SIP<->SIP,
SIP<->H.323, H.323<->H.323, TDM<->TDM,
SIP<->TDM, H.323<->TDM - Tandem/TDM switching
- Support for multiple SIP User Agents
(RFC 3261) - SIP supplementary services
- DTMF signaling via RFC 2833 or SIP Info
- SIP header manipulation: automatic appending and stripping of digits to dialed numbers
- Loop Start, Reverse Battery and Battery Disconnect
- Coding: A law, I law
Protocol Support
- DHCP
- DNS
- H.323
- SIP
- SNMP
- TCP
- UDP
Routing/Policy
- Transparent MultiPath Call Routing
- Least Cost Routing (via Sonus PSX™ Centralized Routing and Policy Server)
- Forced IP routing and IP port mapping
- Four types of configurable routing databases: Bypass Directory Numbers, Hunt Local Directory Numbers, Hop-Off Directory Numbers and Static Routes
- Multiple dial plan options: public/private dial plan, user-programmable dial plan
- Answer and disconnect supervision
- Pass-through support for calls to tollfree, local and special service numbers (e.g., emergency services)
- Type 1 Caller ID/Name Support
(Telcordia, ETSI, NTT and DTMF) - SIP REFER method
Security
- NATAccess™ network address translation firewall protection
- IP packet filtering
- G.168 Echo Cancellation with standard 128 ms tail length
- Adaptive Voice Activity Detection (VAD)
- Comfort Noise Generation (CNG)
- Fax support: Group III at 2.4, 4.8, 7.2, 9.6 and 14.4 Kbps using industry standard T.38 (Super G3 compatible up to 33.6 Kbps)
- Automatic call type detection – voice, fax or modem
Quality of Service
- Adaptive jitter buffer
- Packet loss concealment
- IP Type of Service (TOS) and DiffServ support
- PacketSaver™ multiplexing technology: Reduces bandwidth consumption up to 57% by combining voice packets from multiple calls into a single packet
Package Features
- Qty/CTN: 5 PCS
- N.W/CTN: 6.3kg
- G.W/CTN: 7.0kg
- Giftbox size: 246mm*223mm*120mm
- Carton Meas: 627mm*256mm*235mm
Hardware Specifications
Front Panel
- Status Indicators Front Panel LEDs
- Operational Status
- LAN Link
- LAN Activity
- Port(s) In Use
Rear Panel
- Standard RJ-45 LAN Interface (IEEE 802.3) for 10 BASE-T or 100 BASE-TX connections
- Two, four, six or eight standard RJ-11 connectors for analog line/trunk interfaces
- RS-232 connector for PC console
- DIAG connector for software diagnostics
Chassis
- 1U, rack mount
- Inches: 8.25 Wide x 2.0 High x 7.0 Deep
- Centimeters: 21.0 Wide x 5.1 High x 18.73 Deep
AC Power Option
- 100-240 VAC, 50-60 Hz
- Max power consumption: 22W
Operating Altitude
- 10,000 ft. (3,000 m.)
Weight Maximum Fully Populated
- 1.3 lbs. (0.6 kg)
Environmental
- 5˚ to 40˚ C operating
- -10˚ to 60˚ storage
- 20 to 80% non-condensing operating humidity
Industry Standards Support
- Telco: FCC Part 68, AS/ACIF S003,
CS03, JATE AS/ACIF S002:2001 - EMC: FCC Part 15 Class B, EN55022,
EN55024, EN61000-2-3, EN61000-3-3,
AS/NZS3260 - Safety: UL60950, EN60950, AS/
NZS60950
