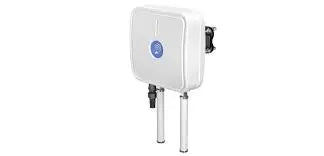

QuWireless QuMax for RUT955 Integrated Multi-band LTE Directional, WiFi + GPS Antenna All In One (A955M)
![QuWireless QuMax for RUT955 Integrated Multi-band LTE Directional, WiFi + GPS Antenna All In One (A955M)]()
![QuWireless QuMax for RUT955 Integrated Multi-band LTE Directional, WiFi + GPS Antenna All In One (A955M)]()
QuWireless QuMax for RUT955 Integrated Multi-band LTE Directional, WiFi + GPS Antenna All In One (A955M)
Available:In Stock
£125.64
QuWireless QuMax for RUT955 Integrated Multi-band LTE Directional, WiFi + GPS Antenna All In One (A955M)
The QuWireless A955M offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT955 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also GPS antenna and outdoor Wi-Fi omni antennas.
QuWireless A955M Key Features
All antennas and router integrated into one enclosure
Outdoor use - works in any weather condition IP67
Passive PoE support
Maximise signal
Easy to install
Dual SIM - significantly reduce roaming costs
QuSpot Diagram
QuWireless A955M Technical Specifications
LTE Specification
Frequency:
- 0.694-0.96 GHz
- 1.7 - 2.2 GHz
- 2.2 - 2.7 GHz
Gain:
- 4 dBi
- 5 dBi
- 6 dBi
VSWR:
- <1.50, max <2.00
- <1.30, max <1.60
- <1.30, max <1.60
Beamwidth:
- 90°/90° +/- 30°
- 90°/90° +/- 30°
- 90°/90° +/- 30°
Polarisation: Vertical
Impedance: 50 Ω
WiFi Specification
Frequency:
- 2.40-2.50 GHz
- 4.70 - 6.00 GHz
Gain:
- 6 dBi
- 7 dBi
VSWR:
- <1.70, max <2.00
- <1.70, max <2.00
Beamwidth:
- 360°/25° +/- 5°
- 360°/25° +/- 5°
Polarisation: Vertical
Impedance: 50 Ω
Mechanical Specification
Materials: ABS, aluminum, PTFE, Fiberglass
Ingress Protection: IP67
Dimensions:
- 272 x 276 x 96 mm
- 10.71 x 10.87 x 3.78 inch
Weight:
- 1.8 kg
- 3.97 lbs
Operating Temperature:
- From -40°C to 75°C
- From -40°F to 167°F
The QuWireless A955M offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT955 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also GPS antenna and outdoor Wi-Fi omni antennas.
