Premium KV-series Ceiling Speakers
Premium KV-series Ceiling Speakers

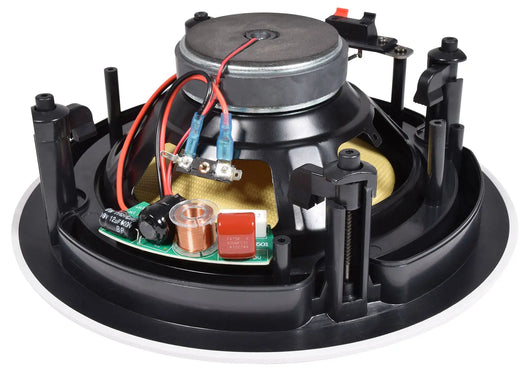

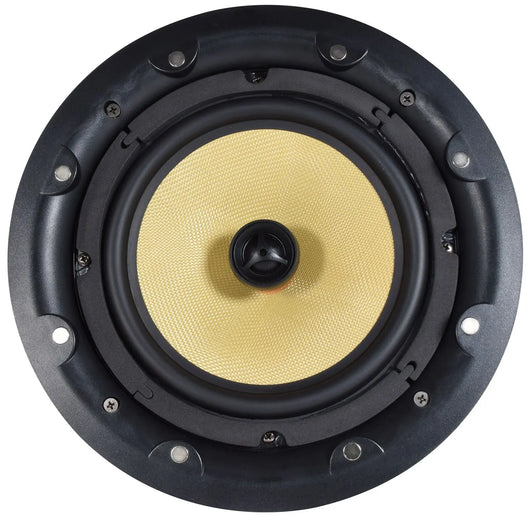

Premium quality ABS 2-way ceiling speakers with magnetic frameless grille for high quality music reproduction in a sleek design. High energy glass-aramid main drivers are combined with a coaxial dome tweeter and coupled to a wave guide baffle for optimum sound dispersion. Each KV speaker is served by a full 2-way passive crossover network, providing an accurate and efficient frequency balance. Designed without compromise to deliver maximum power and quality from this class of ceiling speaker.
- Full 2-way passive crossover

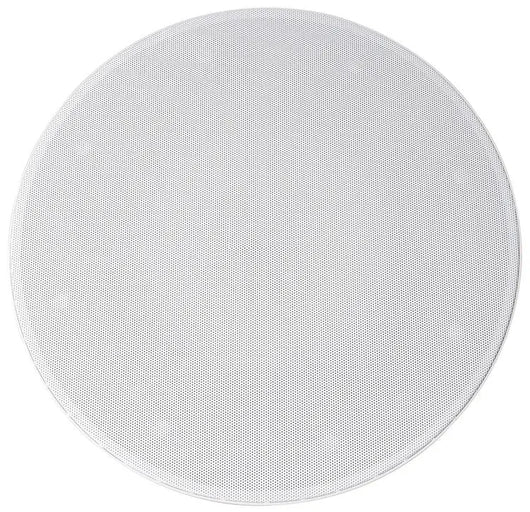

- Magnetic low profile steel grille
- Heavy duty glass-aramid cone
- Braced ABS basket with integral wave guide
- Supplied individually
- Weight1.543kg
- Dimensions110 x 281mmØ
- Mounting depth110mm
- Cutout255mmØ
- Max. SPL105dB
- SPL @ 1W/1m90dB
- Frequency response50Hz - 20kHz
- Power handling : rms40W
- Magnet weight465g
- Main driver200mmØ (8") glass-aramid diaphragm
- Power handling : max80W
- ConstructionABS basket & powder coated steel grille
- Impedance8 Ohms
- Dispersion angle120°
- HF driver25mmØ (1") ASV diaphragm
Trade Information
- SKU125.108UK
- Barcode EAN5015972230992
- Tariff code8518210000
- Country of originChina (CN)
- Packaging typeBox Label
- Package dims150 x 310 x 310mm
- Package quantity1 unit
- Nett weight1.5430kg
- Gross weight1.8900kg
- Carton dims620 x 320 x 320mm
- Carton quantity8 units
- Carton weight16.80kg
