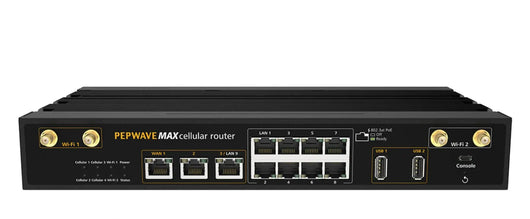

Pepwave MAX HD4 Quad 4G LTE Mobile Router (MAX-HD4-LTEA-W-T)
Pepwave MAX HD4 Quad 4G LTE Mobile Router (MAX-HD4-LTEA-W-T)
The Pepwave MAX-HD4-LTEA-W-T delivers outstanding performance from all your connections with the help of SpeedFusion bandwidth bonding and intelligent load balancing.
Pepwave MAX-HD4-LTEA-W-T Key Features
- Quad Embedded Cellular and Redundant SIM Slots
- Fleet Tracking and Management
- Terminal Block for Secure Power Supply
- SpeedFusion Bandwidth Bonding and Seamless Failover
- Customise Captive Portal
- Certified Toughness
- WAN
- LAN
- Advanced QoS
- Load Balancing
- Complete VPN Solution
- Captive Portal Support
- Device Management
Quad Embedded Cellular and Redundant SIM Slots
The Quad Cellular and Redundant SIM slots allow you to use up to four different cellular providers for bandwidth bonding, data overage protection or eliminating blind spots.
Fleet Tracking and Management
With built-in GPS fleet tracking and InControl 2 cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device.
Terminal Block for Secure Power Supply
MAX HD4 is equipped with a terminal block for secure installation in vehicles and other locations.
SpeedFusion Bandwidth Bonding and Seamless Failover
SpeedFusion bandwidth bonding technology bonds all connected bandwidth into a single superfast stream, using the same or different cellular providers.
General
- WAN Interface:
- 1x USB Interface
- 2x GE
- 4x Embedded LTE Modems with Redundant SIM Slots - LAN Interface: 8x GE
- Wi-Fi Interface: 802.11a/b/g/n 300Mbps 2x2 MIMO Wi-Fi WAN and/or AP
- Router Throughput: 300Mbps
- Cellular and GPS Antenna Connector:
- 8x SMA Antenna Connectors
- 1x SMA GPS Antenna Connector
- 4x Dual Band Wi-Fi Antennas - Power Input: DC Jack/Terminal Block: 12V - 48V, 4A
- Power Output: Up to Eight 802.3af PoE Outputs
- Power Consumption: 38W (max.)
- Dimensions: 1.9 x 11.5 x 6.9 inches / 50 x 292 x 177 mm
- Weight: 4.20 pounds / 1.9 kg
- Operating Temperature: -40° – 149°F / -40° – 65°C
- Humidity: 15% – 95% (non-condensing)
- Certifications:
- FCC, CE, RoHS, E-Mark
- EN 61373:1999 IEC 61373:1999 : Shock and Vibration Resistance:
- EN 50155: Railway Applications
- EN 61000: Electromagnetic Compatibility - Warranty: 1-Year Limited Warranty
Features
- WAN:
- Support for PPPoE, Static IP, DHCP
- WAN Link Health Check
- Bandwidth Allowance Monitor
- USB 4G/3G Modem Support
- Support for Dynamic DNS services
- WAN Port Convertible into LAN Port - LAN:
- DHCP Server for LAN Clients
- Extended DHCP Options
- DHCP Reservation
- DNS Proxy for LAN Clients
- VLAN on LAN Support - Advanced QoS:
- Individual Bandwidth Limit
- Application Prioritisation
- SIP, HTTPS, VPN QoS
- Custom Application QoS - Load Balancing:
- Intelligent Failover
- Session Persistence
- Per-Service Load Distribution
- Multiple Algorithms - Complete VPN Solution:
- PepVPN/SpeedFusion Bandwidth Bonding
- Site-to-Site VPN
- Bandwidth Aggregation
- Hot Failover
- 256-bit AES Encryption
- Pre-shared Key Authentication
- Dynamic Routing
- IPsec VPN (Network-to-Network) - Security:
- Stateful Firewall
- DoS Prevention
- Web Blocking - Networking:
- NAT and IP Forwarding
- Static Routes
- Port Forwarding
- Many to One, One to One NAT
- NAT Pool
- SIP ALG, H.323 ALG
- UPnP, NAT-PMP - Captive Portal Support:
- Support for Wired and Wireless LAN Clients
- Support for RADIUS Authentication Time and Usage Quotas on Open Access Mode
- Built-in Customisation Splash Page - Device Management:
- Web Administrative Interface
- Command Line Interface
- InControl Cloud Management
- Email Notification
- Active Client & Session Lists
- Bandwidth Usage Statistics
- Syslog Service
- SNMP v1, v2c and v3 - Package Content:
- MAX HD4
- 12V4.2A Power Supply
- 4x Dual Band Wi-Fi Antennas
- 1x GPS Active Antenna
- 8x 2dBi 4G LTE Antennas
- 1 Pair of Mounting Brackets
