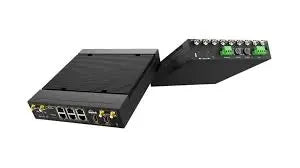

Peplink MBX Mini 5G Router (MAX-MBX-MINI-5GD-T)
Peplink MBX Mini 5G Router (MAX-MBX-MINI-5GD-T)
Bring your deployments to life with the versatility of the MBX Mini. It’s just as brilliant as any other MBX device Peplink have to offer. So connect your devices to the PoE enabled LAN ports to provide network simplicity as well as IEEE 802.1X port authentication. This MBX Mini has the power to achieve it all.
Keep your connection flowing in whatever deployment that you’re immersed in and deliver more power and redundancy with THREE power input options: AC, DC, and USB-C.
One, Two, Three, Four
Peplink know fast connections are critical to achieving great things. Its dual-band Wi-Fi and 5G capabilities ensure you experience the fastest available network. If the dual embedded cellular WANs are not enough, the MBX Mini can be expanded to FOUR cellular WANs by simply connecting it to our MAX Adapters via the dual USB ports.
Making hard to manage feel like hardly managing
With this FusionSIM-ready router, you can say goodbye to switching and managing multiple SIMs via the router. FusionSIM offers remote provisioning of SIM profiles from anywhere in the world. Managing made easy, ready when you are!
Peplink MBX Mini Key Features
- All 4 LAN Ports include PoE functionality
- Double the performance with 2 Cellular, Ethernet and USB WANs
- 3 power inputs
- Achieve up to 4 cellular WANs by connecting 2 MAX Adapters (sold separately)
Peplink MBX Mini - Technical Specifications
General
- WAN Interface: 2x Embedded Cellular Models with Redundant SIM Slots, 2x GE, 2x USB 2.0
- LAN Interface: 4x GE
- WiFi Interface: 802.11ac/a/b/g/n, 1166 Mbps 2x2MIMO, Wi-Fi WAN and/or AP, Simultaneous Dual-Band
- Router Throughput: 2.5Gbps
- Dimensions: 186 x 204.5 x 41 mm
- Weight: 1.9kg
- Certifications: FCC, CE, RoHS, E-Mark, PTCRB, Shock and Vibration Resistance: EN, 61373:1999 IEC 61373:1999, Railway Applications: EN 50155, Electromagnetic Compatibility: EN 61000
WAN
- Support for PPPoE, Static IP, DHCP
- WAN Link Health Check
- PING
- IPv6 Support
- DNS Lookup
- HTTP
- Bandwidth Allowance Monitor
- USB 4G/3G Modem Support
- Intelligent Failover
- Support for Dynamic DNS services
- changeip.com
- dyndns.org
- no-ip.org
- tzo.com
- DNS-O-Matic
LAN
- DHCP Server for LAN Clients
- Extended DHCP Option
- DHCP Reservation
- DNS Proxy for LAN Clients
- VLAN on LAN Support
- Per-Port VLAN Support
Load Balancing
- Intelligent Failover
- Session Persistence
- Per-Service Load Distribution
- Multiple Algorithms
- Weighted
- Enforced
- Persistence
- Priority
- Overflow
- Least Used
- Lowest Latency
- Fastest Response Time
Complete VPN Solution
- PepVPN
- Site-to-Site VPN
- Bandwidth Bonding
- Hot Failover
- 256-bit AES Encryption
- Pre-shared Key Authentication
- Dynamic Routing
- PPTP VPN Server
- RADIUS, LDAP Authentication
- IPsec VPN (Network-to-Network)
- X.509 Certificate Support
Advanced QoS
- User Groups
- Bandwidth Reservation
- Individual Bandwidth Limit
- Application Prioritization
- By User Groups
- SIP, HTTPS, VPN QoS
- Custom Application QoS
Networking
- NAT and IP Forwarding
- Static Routes
- Port Forwarding
- Many to One, One to One NAT
- NAT Pool
- SIP ALG, H.323 ALG
- UPnP, NAT-PMP
- WINS Server
- VRRP HA Support
- BGP, OSPFv2 and RIPv2 Support
AP Controller
- Auto AP Discovery
- Auto AP Firmware Management
- AP Profile Configuration
- Wi-Fi Usage Statistics
Security
- DoS Prevention
- Stateful Firewall
- Web Blocking
- Web Filtering Blacklist
Captive Portal
- Support for Wired and Wireless LAN Clients
- Support RADIUS Authentication
- Time and Usage Quotas on Open Access Mode
- Built-in Customizable Splash Page
Device Management
- Web Administrative Interface
- Command Line Interface
- InControl Cloud Management
- Email Notification
- Active Client & Session Lists
- Bandwidth Usage Statistics
- Syslog Service
- SNMP v1, v2c and v3
Package Contents
- MBX Mini, PSU 180W (ACW-630)
- 4x Dual-Band Wi-Fi Antennas (ACW-341)
- 1x QMA to SMA Adapter (for GPS)
- 1x GPS Antenna (ACW-232)
- Power Cord
- 1 Pair of Ear L-Mounts kit (ACW-731)
- Screw set of Ear L-Mounts kit
- 3pin Terminal Block Connector (Ignition Sense)
- 4pin Terminal Block Connector (Power Supply)
- Rubber Foot Pad set
