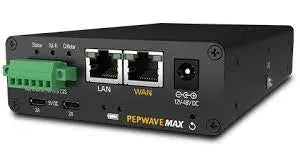

Peplink MAX Transit LTEA Global CAT-12 Router (MAX-TST-LTEA-K-T)
![Peplink MAX Transit LTEA Global CAT-12 Router (MAX-TST-LTEA-K-T)]()
![Peplink MAX Transit LTEA Global CAT-12 Router (MAX-TST-LTEA-K-T)]()
Peplink MAX Transit LTEA Global CAT-12 Router (MAX-TST-LTEA-K-T)
Available:Out of Stock
- Category:Peplink Transit Routers
£0.00
Peplink MAX Transit LTEA Global CAT-12 Router (MAX-TST-LTEA-K-T)
The Peplink MAX-TST-LTEA-K-T is an LTEA Global CAT-12 Router built for transportation deployments. With a compact form factor, simultaneous dual-band 11ac WiFi, the MAX Transit is ready to deliver fast, reliable WiFi to your passengers.
Peplink MAX-TST-LTEA-K-T Key Features
Dual Embedded Cellular and Redundant SIM Slots
Simultaneous Dual-Band WiFi
Captive Portal with Social WiFi
External Captive Portal for Advertising Servers
Install it Anywhere
Certified Toughness
Shock and vibration resistance
Railway Applications
Electromagnetic Compatibility
Fleet Tracking
Dual Embedded Cellular and Redundant SIM Slots
Up to two cellular modems and redundant SIM slots allow you to use up to four different cellular providers for bandwidth bonding, data overage protection or eliminating blind spots.
Simultaneous Dual-Band WiFi
Reduce WiFi congestion and interference. Simultaneous dual-band WiFi gives you two independent networks that also work together, maximising the throughput that your passengers can enjoy.
Install it Anywhere
With mounting ears that can be installed from many angles and optional DIN rail mounts, the MAX Transit is ready to fit into just about any space you have available.
FirstNet Ready
FirstNet (band 14) provides first responders with a specialised LTE network with more priority and network capacity. The MAX Transit supports band 14, providing additional coverage as the situation demands.
Peplink MAX-TST-LTEA-K-T - Technical Specifications
General
Cellular WAN Interfaces: Single LTE Modem
SpeedFusion Hot Failover: Yes
SpeedFusion WAN Smoothing: No
SpeedFusion Bandwidth Bonding: No
Number of PepVPN SpeedFusion Peers: 2 / 5 ^
WAN Interface: 1x GE+
LAN Interface: 1x GE
Load Balancing/Failover: Yes
Router Throughput: 400Mbps
SpeedFusion Throughput (No Encryption): 100Mbps
SpeedFusion Throughput (256-bit AES): 60Mbps
Recommended Users: 150
Downlink/Uplink Datarate:
- 100Mbps/50Mbps (LTE Modem)
- 300Mbps/50Mbps (LTE-A Modem)
- 600Mbps/150Mbps (LTE-A Pro Modem)
WiFi Standard: 802.11ac/a/b/g/n 2x2 MIMO
Transmit Power (2.4GHz / 5GHz ): 19dBm / 21dBm
Simultaneous Dual-Band WiFi AP: Yes
Antenna Connectors: 2x SMA Cellular*, 1x SMA GPS, 2x RP-SMA WiFi
Power Input:
- Device: 12V – 48V DC
- AC Adapter: AC Input 100V – 240V / DC Output 12V
- Terminal Block: 12V – 48V DC
Power Consumption: 18W (max.)
Dimensions (L x W x H): 6.3 x 3.8 x 1.3 inches, 160 x 97 x 33.5 mm
Weight: 1.3 pounds, 590 grams
Operating Temperature:
- -40° – 149°F
- -40° – 65°C
Humidity: 15% – 95% (non-condensing)
Warranty: 1-Year Limited Warranty
# Available as a license add-on.
^ 2 PepVPN Peers are enabled by default. 5 PepVPN Peers are enabled for PrimeCare models which requires PrimeCare Subscription, complementary for the first year.
+ The WAN port can act as a LAN port if needed.
* the MAX-TST-DUO has 4x SMA cellular antenna connectors
Other
Product Code: MAX-TST-LTEA-K-T
Embedded Modems: 1
Carrier/Region: Global*/CAT-12
Cellular Standard: LTE Advanced Pro
4G Bands: B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66
3G Bands: HSPA+: B1, B2, B4, B5, B6, B8, B9, B19
* China & HK TD LTE are excluded
