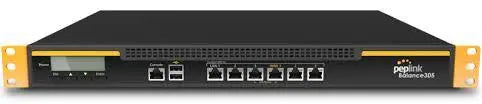

Peplink Balance 305 Load Balancing Router

The Peplink Balance 305 has a user-friendly Web Admin and Reporting Service that helps you to manage your network easily. With Load Balancing between three WAN connections (cable/DSL/T-1/satellite), the 305 reduces the cost of having expensive leased lines.

Peplink Balance 305 Key Features

  • Recommended users: 50-500
  • LAN ports: 3 (GbE)
  • WAN ports: 3 (GbE)
  • USB WAN modem port: 1
  • Throughput: 1Gbps
  • Inbound load balancing
  • Built-in WLAN controller
  • PPTP VPN server
  • Drop-in Mode
Peplink Balance 305 - Technical Specifications

Hardware

  • LAN ports: 3 (GbE)
  • WAN ports: 3 (GbE)
  • USB WAN modem port: 1
  • Dimensions: 1.72" x 16.8" x 10.7"
  • Weight: 7.7 lbs
  • Power Requirements: Universal Input 100V to 240V AC
  • Power Consumption: 50W
  • 1U Rackmount
  • High Availability

Capacity

  • Recommended users: 50-500
  • Router throughput: 1Gbps

Wan

  • Support for PPPoE, Static IP, DHCP
  • WAN Link Health Check
  • PING
  • DNS Lookup
  • HTTP
  • Bandwidth Allowance Monitor
  • IPv6 Support
  • USB 4G/3G Modem Support

Lan

  • Extended DHCP Option
  • DHCP Reservation
  • Support for Dynamic DNS services
    • changeip.com
    • dyndns.org
    • no-ip.org
    • tzo.com
    • DNS-O-Matic
  • DNS Proxy for LAN Clients

Load Balancing

  • Intelligent Failover
  • Session Persistence
  • Per-Service Load Distribution
  • Multiple Algorithms:
    • Weighted
    • Enforced
    • Persistence
    • Priority
    • Overflow
    • Least Used
    • Lowest Latency

Complete VPN Solution

  • PPTP VPN Server
    • Recommended PPTP VPN Users: 50
  • RADIUS, LDAP Authentication
  • IPsec VPN (Network-to-Network)
    • Number of IPsec Tunnels: 20
    • IPsec only supports connection with Cisco, Juniper, Peplink or Pepwave devices

Advanced QoS

  • User Groups
    • Bandwidth Reservation
    • Individual Bandwidth Limit
  • Application Prioritisation
    • By User Groups
    • SIP, HTTPS, VPN QoS
    • Custom Application QoS

Networking

  • NAT and IP Forwarding
  • Static Routes
  • Port Forwarding
  • Many to One, One to One NAT
  • NAP Pool
  • SIP ALG, H.323 ALG
  • UPnP, NAT-PMP
  • WINS Server

WLAN Controller

  • Support for Pepwave AP Series
  • Customisable Captive Portal
  • Auto AP Discovery
  • Auto AP Firmware Management
  • AP Profile Configuration

DNS

  • Built-in Authoritative DNS 7
    • Support for A, CNAME, NS, MX, PTR, SOA, SRV, TXT records

Security

  • DoS Prevention
  • Stateful Firewall
  • Web blocking

Device Management

  • Web Administrative Interface
  • Command Line Interface
  • InControl Cloud Management
  • Email Notfication
  • Active Client & Session Lists
  • Bandwidth Usage Statistics
  • Syslog
  • SNMP v1, v2c and v3

Support and Warranty

  • 1-Year Standard Warranty
  • 1-Year Firmware Upgrade

Certifications

  • CE
  • RoHS
  • FCC
