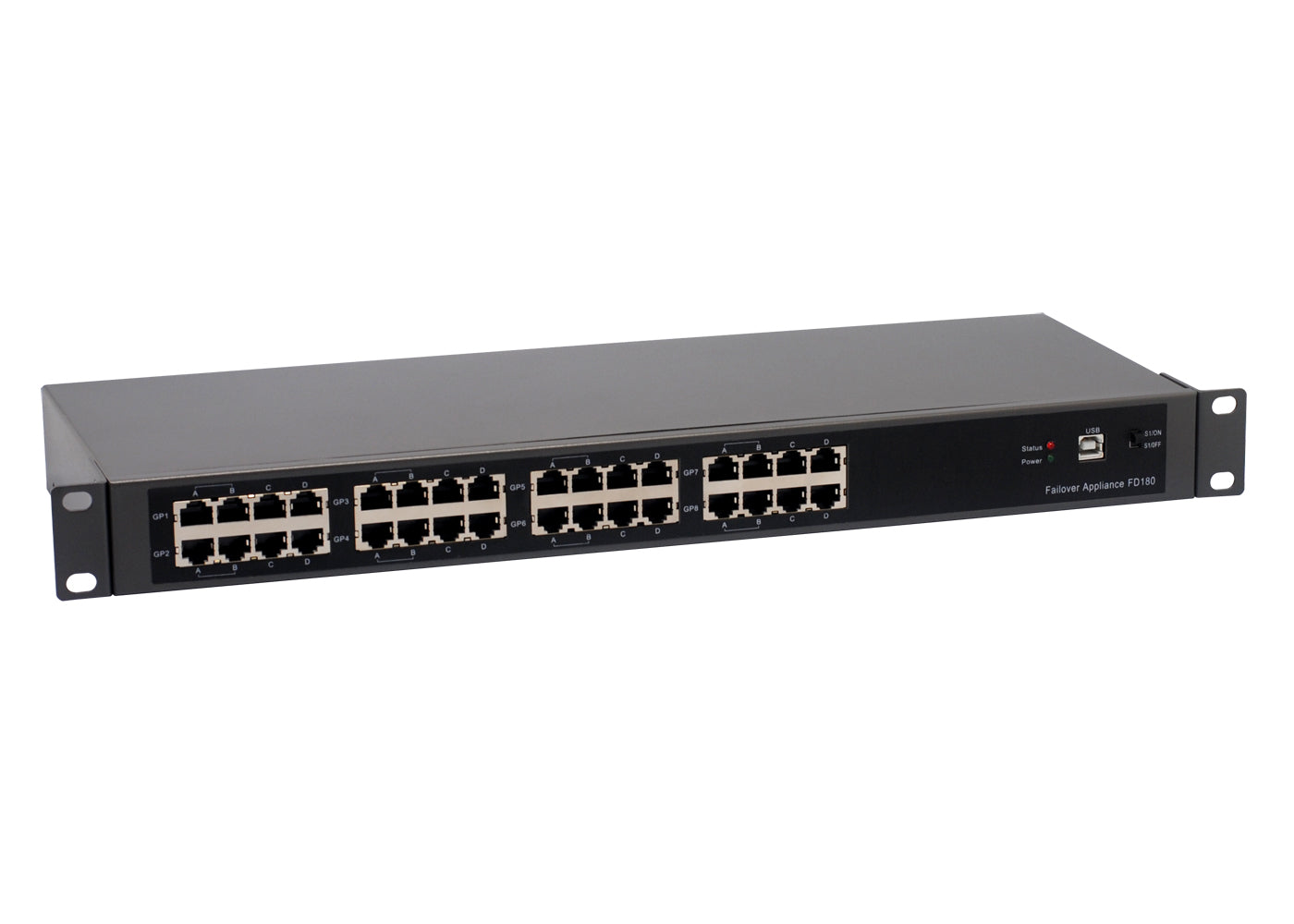

OpenVox FD180 8-port E1/T1/BRI interface failover appliance
OpenVox FD180 8-port E1/T1/BRI interface failover appliance
The OpenVox FD180 is a 8-port E1/T1/BRI interface failover appliance. It can better protect the unpredictable problems happen to the Asterisk PBX. It will provide an effective way to backup the Asterisk PBX when undesirable changes are detected (often when Asterisk fails or power-off of the system).
OpenVox FD180 Features
- Support up to 8 Port Digital T1/E1/PRI/BRI Failover Appliance
- Support multiple FD180 devices in one system
- Support all compatible PRI and BRI interface cards
- Unique highlight：1 USB power supply
- Five Year Warranty
FD180 provides a reliable and flexible solution to Asterisk PBX. The OpenVox FD180 is controlled through an Asterisk loadable module res_failover.so. This module keeps sending “running” signal to redundant server when Asterisk is running. Once Asterisk is down or system power is cut off, the module will not be able to send out the “running” signal to FD180 and thus FD180 will automatically switch to the redundant server.
Features
- 8 E1 / T1 / BRI ports
- Easy installation; use USB to connect computer or server
- Industry standard USB type B connector
- USB 2.0 and 1.1 compliant
- Two power supply indicator lights
- Support the BRI or PRI circuit connection
- Support multiple FD180 devices in one system
- Support hardware watchdogLow power consumption, take power from USB bus
- Fully support Asterisk (Version1.2/1.4/1.6)
- Dimension: 44cm*6.6cm*4.5cm
- Weight: 1658g
OpenVox FD180 8-port E1/T1/BRI interface failover appliance
The OpenVox FD180 is a 8-port E1/T1/BRI interface failover appliance. It can better protect the unpredictable problems happen to the Asterisk PBX. It will provide an effective way to backup the Asterisk PBX when undesirable changes are detected (often when Asterisk fails or power-off of the system).
OpenVox FD180 Features
- Support up to 8 Port Digital T1/E1/PRI/BRI Failover Appliance
- Support multiple FD180 devices in one system
- Support all compatible PRI and BRI interface cards
- Unique highlight：1 USB power supply
- Five Year Warranty
FD180 provides a reliable and flexible solution to Asterisk PBX. The OpenVox FD180 is controlled through an Asterisk loadable module res_failover.so. This module keeps sending “running” signal to redundant server when Asterisk is running. Once Asterisk is down or system power is cut off, the module will not be able to send out the “running” signal to FD180 and thus FD180 will automatically switch to the redundant server.
OpenVox FD180 8-port E1/T1/BRI interface failover appliance - Technical SpecificationsFeatures
- 8 E1 / T1 / BRI ports
- Easy installation; use USB to connect computer or server
- Industry standard USB type B connector
- USB 2.0 and 1.1 compliant
- Two power supply indicator lights
- Support the BRI or PRI circuit connection
- Support multiple FD180 devices in one system
- Support hardware watchdogLow power consumption, take power from USB bus
- Fully support Asterisk (Version1.2/1.4/1.6)
- Dimension: 44cm*6.6cm*4.5cm
- Weight: 1658g
