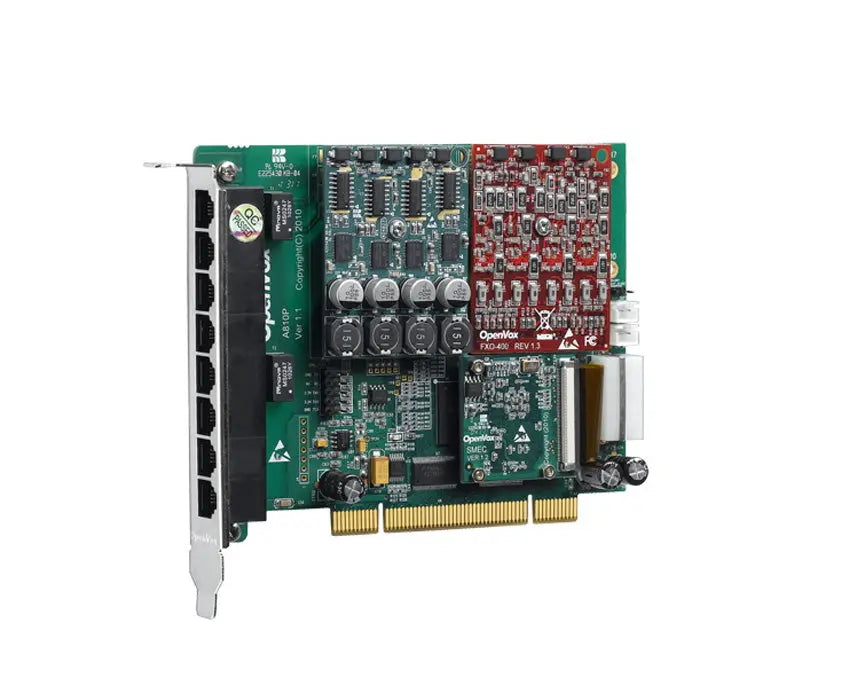

OpenVox AE810P PCI Asterisk Analog Card - Echo Cancellation
The OpenVox AE810P PCI Asterisk Card can be used for connecting analog telephones and analog POTS lines through a PC. It takes full advantage of Octasic® Hardware Echo Cancellation Module to deliver the superior voice quality on both FXO and FXS interfaces in all 8 ports. AE810P is a new generation analog card with Octasic® Hardware Echo Cancellation Module on board. With the interchangeable quad-FXS and quad-FXO modules, AE810P can eliminate the requirement for separate channel banks or access gateways.
Key Features and benefits of the OpenVox AE810P
- Caller ID and Call Waiting Caller ID
- ADSI Telephones
- With Octasic® Hardware Echo Cancellation Module
- Loopstart Signaling Support
- Up to 8 Simultaneous PSTN Calls (Per PCIe Slot)
- Interchangeable FXS and FXO modules
- Scalable: Just add additional cards to extend the system.
The AE810P contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.
The AE810P works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.
- Up to 8 ports through a combination of FXS400 and FXO400 modules
- Full-length/Half-length analog card
- Up to 2 quad FXS or FXO modules
- RJ11 Port
- FPGA design, upgradeable firmware onsite
Power
- 7.83W Minimum, 30.43W Maximum at 3.3 V or 5 V
Operating temperature
- 0°C to 50°C
Storage temperature
- -40°C to 125°C
Interface
- PCI
Dimension
- 136mm*112mm*18mm
Minimum Hardware Requirement
- 800-Mhz Pentium III
- 128MB RAM
- Available PCI-E/PCI Slot
Target Applications
- Channel Bank Replacement / Alternative
- Small Office Home Office (SOHO) applications
- Small and Medium Business (SMB) applications
- Gateway Termination to analog telephones/lines
Optional Octasic® DSP Echo Cancellation Module — EC2032
- 1024 taps/128 ms tail/channel (on all channel densities)
- Octasic® music protection
- Automatic level control (G.169)
- Field upgradeable algorithm
- V.25 / V.8 answer tone
- DTMF as per Q.24
- No CPU load as a result of echo cancellation.
- Does not increase the physical size of the card, and no additional slot is required
- EC2032 (SMEC V1.1) power: 3.83W
Operating Systems
- Linux (all versions, releases and distributions from 1.0 up)
Certifications
- RoHS Compliant
- Certificates: FCC, CE and CS-03
Weight
- 88g
