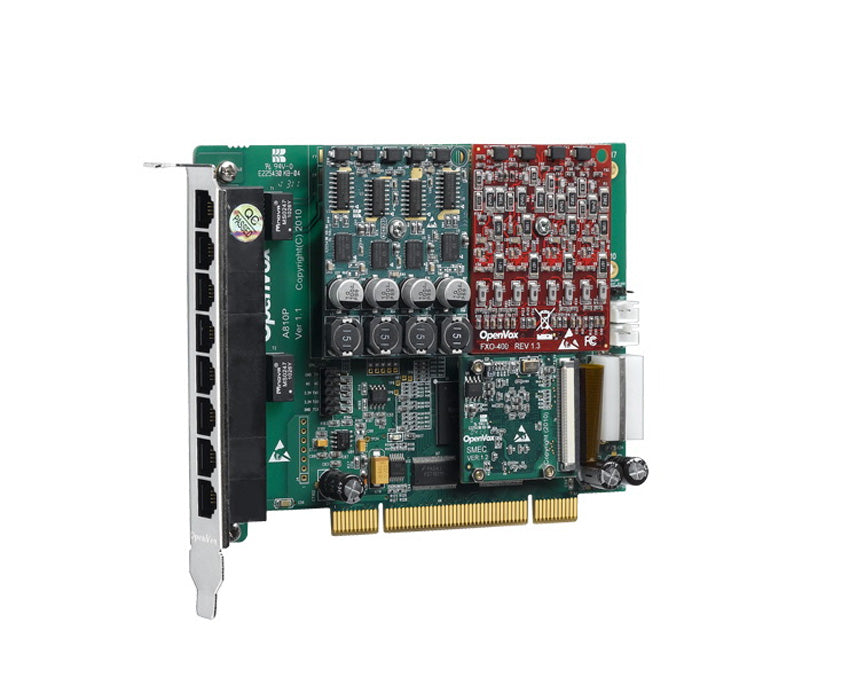

OpenVox A810P PCI Asterisk Analog Card
OpenVox A810P PCI Asterisk Analog Card
The OpenVox A810P PCI Asterisk Card can be used for connecting analog telephones and analog POTS lines through a PC. It takes full advantage of Octasic® Hardware Echo Cancellation Module to deliver the superior voice quality on both FXO and FXS interfaces in all 8 ports.
Key Features and benefits of the OpenVox A810P
- Caller ID and Call Waiting Caller ID
- ADSI Telephones
- Loopstart Signaling Support
- Up to 8 Simultaneous PSTN Calls (Per PCIe Slot)
- Interchangeable FXS and FXO modules
- Scalable: Just add additional cards to extend the system.
The A810P contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.
The A810P works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.
- Up to 8 ports through a combination of FXS400 and FXO400 modules
- Full-length/Half-length analog card
- Up to 2 quad FXS or FXO modules
- RJ11 Port
- FPGA design, upgradeable firmware onsite
Power
- 7.83W Minimum, 30.43W Maximum at 3.3 V or 5 V
Operating temperature
- 0°C to 50°C
Storage temperature
- -40°C to 125°C
Interface
- PCI
Dimension
- 136.3mm*106.7mm*16mm
Minimum Hardware Requirement
- 800-Mhz Pentium III
- 128MB RAM
- Available PCI-E/PCI Slot
Target Applications
- Channel Bank Replacement / Alternative
- Small Office Home Office (SOHO) applications
- Small and Medium Business (SMB) applications
- Gateway Termination to analog telephones/lines
Optional Octasic® DSP Echo Cancellation Module — EC2032
- 1024 taps/128 ms tail/channel (on all channel densities)
- Octasic® music protection
- Automatic level control (G.169)
- Field upgradeable algorithm
- V.25 / V.8 answer tone
- DTMF as per Q.24
- No CPU load as a result of echo cancellation.
- Does not increase the physical size of the card, and no additional slot is required
- EC2032 (SMEC V1.1) power: 3.83W
Operating Systems
- Linux (all versions, releases and distributions from 1.0 up)
Certifications
- RoHS Compliant
- Certificates: FCC, CE and CS-03
Weight
- 88g
OpenVox A810P PCI Asterisk Analog Card
Please Note: The OpenVox A810P contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 FXO or FXS modules enabling the creation of any combination of ports. Please select your required modules above.The OpenVox A810P PCI Asterisk Card can be used for connecting analog telephones and analog POTS lines through a PC. It takes full advantage of Octasic® Hardware Echo Cancellation Module to deliver the superior voice quality on both FXO and FXS interfaces in all 8 ports.
Key Features and benefits of the OpenVox A810P
- Caller ID and Call Waiting Caller ID
- ADSI Telephones
- Loopstart Signaling Support
- Up to 8 Simultaneous PSTN Calls (Per PCIe Slot)
- Interchangeable FXS and FXO modules
- Scalable: Just add additional cards to extend the system.
The A810P contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.
The A810P works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.
- Up to 8 ports through a combination of FXS400 and FXO400 modules
- Full-length/Half-length analog card
- Up to 2 quad FXS or FXO modules
- RJ11 Port
- FPGA design, upgradeable firmware onsite
Power
- 7.83W Minimum, 30.43W Maximum at 3.3 V or 5 V
Operating temperature
- 0°C to 50°C
Storage temperature
- -40°C to 125°C
Interface
- PCI
Dimension
- 136.3mm*106.7mm*16mm
Minimum Hardware Requirement
- 800-Mhz Pentium III
- 128MB RAM
- Available PCI-E/PCI Slot
Target Applications
- Channel Bank Replacement / Alternative
- Small Office Home Office (SOHO) applications
- Small and Medium Business (SMB) applications
- Gateway Termination to analog telephones/lines
Optional Octasic® DSP Echo Cancellation Module — EC2032
- 1024 taps/128 ms tail/channel (on all channel densities)
- Octasic® music protection
- Automatic level control (G.169)
- Field upgradeable algorithm
- V.25 / V.8 answer tone
- DTMF as per Q.24
- No CPU load as a result of echo cancellation.
- Does not increase the physical size of the card, and no additional slot is required
- EC2032 (SMEC V1.1) power: 3.83W
Operating Systems
- Linux (all versions, releases and distributions from 1.0 up)
Certifications
- RoHS Compliant
- Certificates: FCC, CE and CS-03
Weight
- 88g
