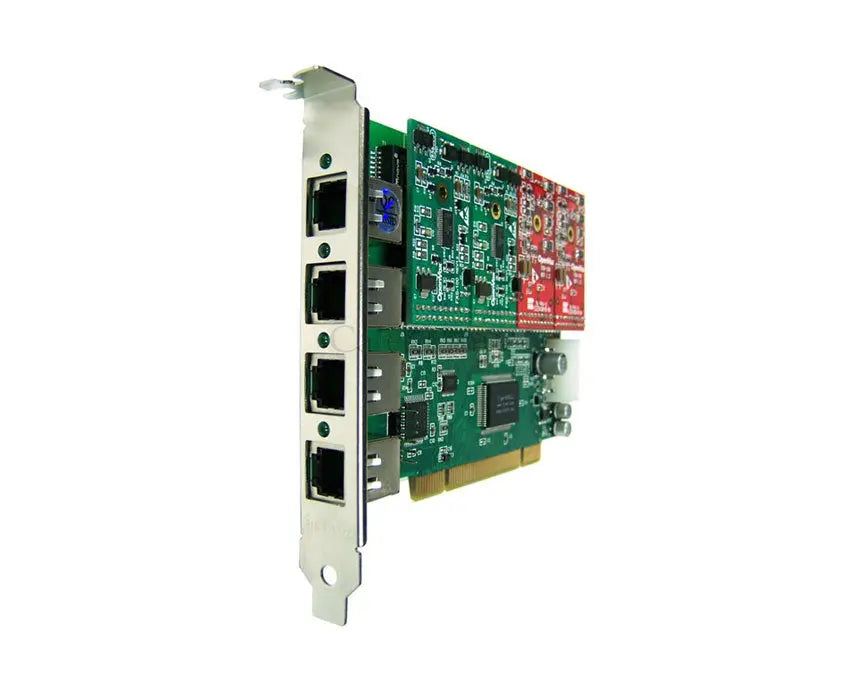

OpenVox A400P Analog Asterisk Card
![OpenVox A400P Analog Asterisk Card]()
![OpenVox A400P Analog Asterisk Card]()
The OpenVox A400P contains 4 module banks. Each bank supports one analog interface. The module banks may be filled with up to 4 FXO or FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.
Technical Specifications
OpenVox A400P Analog Asterisk Card
Available:In Stock
- Category:Best selling products,New products
£76.32
OpenVox A400P PCI Analog Asterisk Card
Please Note: The OpenVox A400P contains 4 module banks. Each bank supports one analog interface. The module banks may be filled with up to 4 FXO or FXS modules enabling the creation of any combination of ports. Please select your required modules above.
The OpenVox A400P can be used for connecting analog telephones and analog POTS lines through a PC. It supports combinations of FXS and/or FXO modules for a total of 4 lines.
Key Features and benefits of the OpenVox A400P
- Up to 4 ports through a combination of FXS and FXO modules
- 4 RJ-11 interfaces on a single PCI bracket
- Firmware accelerate I/O access to achieve high stability
- Channel Bank Replacement / Alternative
- Small Office Home Office (SOHO) applications
- Both 3.3v or 5v PCI slots can be used with this card.
The OpenVox A400P delivers great voice quality in the telephony systems. With interchangeable FXS/FXO modules, it can eliminate the requirement for separate channel banks or access gateways.
The OpenVox A400P contains 4 module banks. Each bank supports one analog interface. The module banks may be filled with up to 4 FXO or FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.
The OpenVox A400P contains 4 module banks. Each bank supports one analog interface. The module banks may be filled with up to 4 FXO or FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.
Technical Specifications
- Up to 4 ports through a combination of FXS and FXO modules
- 4 RJ-11 interfaces on a single PCI bracket
- 32 bit 33MHz PCI and fully PCI 2.2 compliant
- 32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
- Autosense compatibility with 5 V and 3.3 V PCI busses compatible
- Firmware accelerate I/O access to achieve high stability
- Application ready: Use Asterisk to build your IP-PBX system.
- RoHS Compliant.
- Certificates: CE, FCC
Power
- 2.77W Minimum, 11.6W Maximum at 3.3 V or 5 V.
Operation temperature
- 0°C to 50°C
Storage temperature
- -40°C to 125°C
Dimension
- 136.3mm*101mm*16mm
Weight
- 82g
OpenVox A400P PCI Analog Asterisk Card
Please Note: The OpenVox A400P contains 4 module banks. Each bank supports one analog interface. The module banks may be filled with up to 4 FXO or FXS modules enabling the creation of any combination of ports. Please select your required modules above.The OpenVox A400P can be used for connecting analog telephones and analog POTS lines through a PC. It supports combinations of FXS and/or FXO modules for a total of 4 lines.
Key Features and benefits of the OpenVox A400P
- Up to 4 ports through a combination of FXS and FXO modules
- 4 RJ-11 interfaces on a single PCI bracket
- Firmware accelerate I/O access to achieve high stability
- Channel Bank Replacement / Alternative
- Small Office Home Office (SOHO) applications
- Both 3.3v or 5v PCI slots can be used with this card.
The OpenVox A400P contains 4 module banks. Each bank supports one analog interface. The module banks may be filled with up to 4 FXO or FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.
Technical Specifications
- Up to 4 ports through a combination of FXS and FXO modules
- 4 RJ-11 interfaces on a single PCI bracket
- 32 bit 33MHz PCI and fully PCI 2.2 compliant
- 32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
- Autosense compatibility with 5 V and 3.3 V PCI busses compatible
- Firmware accelerate I/O access to achieve high stability
- Application ready: Use Asterisk to build your IP-PBX system.
- RoHS Compliant.
- Certificates: CE, FCC
Power
- 2.77W Minimum, 11.6W Maximum at 3.3 V or 5 V.
Operation temperature
- 0°C to 50°C
Storage temperature
- -40°C to 125°C
Dimension
- 136.3mm*101mm*16mm
Weight
- 82g
