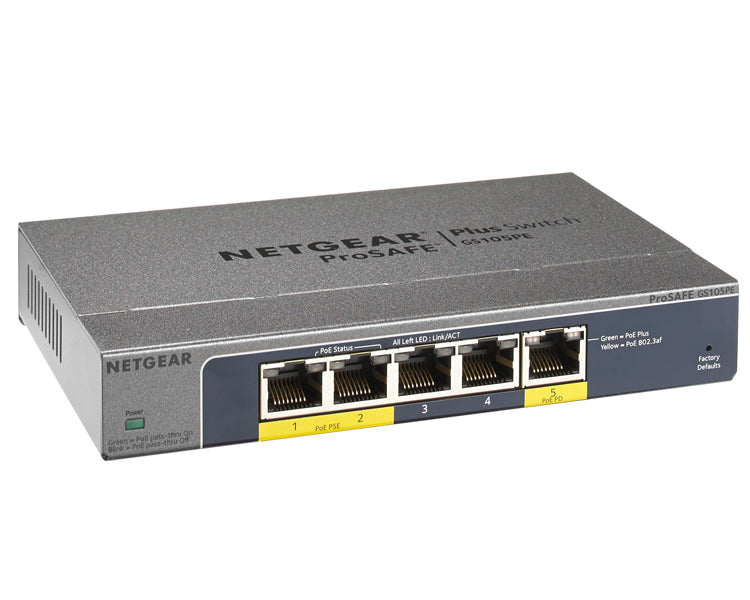

Netgear GS105PE ProSAFE Plus 5-Port Gigabit PoE Pass-Through Switch
![Netgear GS105PE ProSAFE Plus 5-Port Gigabit PoE Pass-Through Switch]()
![Netgear GS105PE ProSAFE Plus 5-Port Gigabit PoE Pass-Through Switch]()
Netgear GS105PE ProSAFE Plus 5-Port Gigabit PoE Pass-Through Switch
Available:In Stock
- Category:Best selling products,New products
£68.40
Netgear GS105PE ProSAFE Plus 5-Port Gigabit PoE Pass-Through Switch
The Netgear GS105PE provides fundamental network features such as VLANs, QoS, and IGMP Snooping that will help optimise the performance of business networks.
Netgear GS105PE Key Features
- Smart Managed Plus Switch delivers network monitoring, traffic prioritisation and VLAN
- 5 Ports
- Simple, yet useful network set-up on top of plug-and-play connectivity
- Gigabit speed with QoS, VLAN and network monitoring
- VLAN support for traffic segmentation
- Quality of Service (QoS) for traffic prioritisation
- Auto “denial-of-service” (DoS) prevention
- Troubleshoot connection issues via cable test
- Loop prevention and broadcast storm controls
- IGMP snooping v1, v2 and v3 support for multicast optimisation
- Rate limiting for better bandwidth allocation
- Port mirroring for network monitoring
- Jumbo frame support
- Port Trunking to increase bandwidth and provide redundant links
Netgear GS105PE Technical Specification
Product Specifications
- Gigabit ports: 5
- Fiber ports: 0
- # of PoE ports: 2
- Total PoE power budget (watts): PoE pass-thru: 19W with 802.3at/7.9W with 802.3af input power
- Max MAC entries: 2K
- Buffer size: 128KB
- Energy Efficient Ethernet (IEEE 802.3az) compliant: Yes
Performance Specification
- Forwarding modes: Store-and-forward
- Bandwidth: 10Gbps
- Priority queuing: Weighted Round Robin (WRR)
- Jumbo frame support: Up to 9K packet size
- Acoustic noise (dB) (ANSI-S10.12): 0
- Mean Time Between Failures (MTBF) (hrs): 1,685,972
L2 Services - VLANS
- VLAN (# Supported): 64
- IEEE 802.1Q VLAN Tagging: Yes
- Port-based VLAN: Yes
L2 Services - Availability
- Link Aggregation/Port Trunking2: No
- Number of Static Manual LAGs and # of members: N/A
L2 Services - Multicast Filtering
- IGMP Snooping (v1, v2 and v3): Yes
- Block unknown Multicast: Yes
- Supported Mulitcast groups: 128
L3 Services - DHCP
- DHCP client: Yes
Quality of Service (QOS)
- Rate limiting: Yes
- DSCP: Yes
- IEEE 802.1p COS: Yes
- Port-based VLAN: Yes
- TOS: Yes
- WRR (Weighted Round Robin): Yes
- Strict Priority Queue Technology: No
IEEE Network Protocols
- IEEE 802.3 Ethernet
- IEEE 802.3ab 1000BASE-T
- IEEE 802.1Q VLAN Tagging
- IEEE 802.3i 10BASE-T
- IEEE 802.1p Class of Service
- IEEE 802.3x Full-duplex Flow Control
- IEEE 802.3u 100BASE-T
- IEEE 802.3af (PoE)
Management
- System Password: Yes
- Web browser based management GUI: Yes
- PC Utility: Yes
- Port Mirroring: Yes
- Multiple Language GUI: No
- Max number of source ports allowed (many to 1): 4
- Many-to-One Port Mirroring: Yes
- Cable Test utility: Yes
- FW upgrade thru Plus Utility (TFTP): Yes
- Config download (to Switch) thru Plus Utility: Yes
- Config upload (to Server): Yes
Miscallaneous Features
- Loop Detection: Yes
- DoS Prevention: Yes
- Broadcast Storm Control: Yes
- Energy Efficient Ethernet (EEE): Yes
LEDs
- Per port: Speed, Link, Activity
Per device: Power, Fan and PoE Power Status
Physical Specifications
- Dimensions: 158x100x27mm
- Weight: 0.47kg
- Fan: 0
Power Consumption (when all ports used, line-rate traffic and max PoE)
- Worst case, all ports used, line-rate traffic, max PoE (W): 22.0
- Heat Dissipation Max/Standby (BTU/hr): Max: 6.7 Min: 1.2
Environmental Specifications2
- Operating temperature: 32° to 122°F (0° to 50°C)
- Operating Humidity: 90% maximum relative humidity, non-condensing
- Operating Altitude: 10,000ft (3,000m) maximum
- Storage temperature: –4° to 158°F (–20° to 70°C)
- Storage Humidity: 95% maximum relative humidity, non-condensing
- Storage Altitude: 10,000ft (3,000m) maximum
- Electromagnetic Emissions and Immunity Certifications Class: B
- Safety Certifications: CE LVD, EAC
Package Contents
- Smart Managed Plus Switch
- Quick Install Guide
Netgear GS105PE ProSAFE Plus 5-Port Gigabit PoE Pass-Through Switch
The Netgear GS105PE provides fundamental network features such as VLANs, QoS, and IGMP Snooping that will help optimise the performance of business networks.
Netgear GS105PE Key Features
- Smart Managed Plus Switch delivers network monitoring, traffic prioritisation and VLAN
- 5 Ports
- Simple, yet useful network set-up on top of plug-and-play connectivity
- Gigabit speed with QoS, VLAN and network monitoring
- VLAN support for traffic segmentation
- Quality of Service (QoS) for traffic prioritisation
- Auto “denial-of-service” (DoS) prevention
- Troubleshoot connection issues via cable test
- Loop prevention and broadcast storm controls
- IGMP snooping v1, v2 and v3 support for multicast optimisation
- Rate limiting for better bandwidth allocation
- Port mirroring for network monitoring
- Jumbo frame support
- Port Trunking to increase bandwidth and provide redundant links
Product Specifications
- Gigabit ports: 5
- Fiber ports: 0
- # of PoE ports: 2
- Total PoE power budget (watts): PoE pass-thru: 19W with 802.3at/7.9W with 802.3af input power
- Max MAC entries: 2K
- Buffer size: 128KB
- Energy Efficient Ethernet (IEEE 802.3az) compliant: Yes
Performance Specification
- Forwarding modes: Store-and-forward
- Bandwidth: 10Gbps
- Priority queuing: Weighted Round Robin (WRR)
- Jumbo frame support: Up to 9K packet size
- Acoustic noise (dB) (ANSI-S10.12): 0
- Mean Time Between Failures (MTBF) (hrs): 1,685,972
L2 Services - VLANS
- VLAN (# Supported): 64
- IEEE 802.1Q VLAN Tagging: Yes
- Port-based VLAN: Yes
L2 Services - Availability
- Link Aggregation/Port Trunking2: No
- Number of Static Manual LAGs and # of members: N/A
L2 Services - Multicast Filtering
- IGMP Snooping (v1, v2 and v3): Yes
- Block unknown Multicast: Yes
- Supported Mulitcast groups: 128
L3 Services - DHCP
- DHCP client: Yes
Quality of Service (QOS)
- Rate limiting: Yes
- DSCP: Yes
- IEEE 802.1p COS: Yes
- Port-based VLAN: Yes
- TOS: Yes
- WRR (Weighted Round Robin): Yes
- Strict Priority Queue Technology: No
IEEE Network Protocols
- IEEE 802.3 Ethernet
- IEEE 802.3ab 1000BASE-T
- IEEE 802.1Q VLAN Tagging
- IEEE 802.3i 10BASE-T
- IEEE 802.1p Class of Service
- IEEE 802.3x Full-duplex Flow Control
- IEEE 802.3u 100BASE-T
- IEEE 802.3af (PoE)
Management
- System Password: Yes
- Web browser based management GUI: Yes
- PC Utility: Yes
- Port Mirroring: Yes
- Multiple Language GUI: No
- Max number of source ports allowed (many to 1): 4
- Many-to-One Port Mirroring: Yes
- Cable Test utility: Yes
- FW upgrade thru Plus Utility (TFTP): Yes
- Config download (to Switch) thru Plus Utility: Yes
- Config upload (to Server): Yes
Miscallaneous Features
- Loop Detection: Yes
- DoS Prevention: Yes
- Broadcast Storm Control: Yes
- Energy Efficient Ethernet (EEE): Yes
LEDs
- Per port: Speed, Link, Activity
Per device: Power, Fan and PoE Power Status
Physical Specifications
- Dimensions: 158x100x27mm
- Weight: 0.47kg
- Fan: 0
Power Consumption (when all ports used, line-rate traffic and max PoE)
- Worst case, all ports used, line-rate traffic, max PoE (W): 22.0
- Heat Dissipation Max/Standby (BTU/hr): Max: 6.7 Min: 1.2
Environmental Specifications2
- Operating temperature: 32° to 122°F (0° to 50°C)
- Operating Humidity: 90% maximum relative humidity, non-condensing
- Operating Altitude: 10,000ft (3,000m) maximum
- Storage temperature: –4° to 158°F (–20° to 70°C)
- Storage Humidity: 95% maximum relative humidity, non-condensing
- Storage Altitude: 10,000ft (3,000m) maximum
- Electromagnetic Emissions and Immunity Certifications Class: B
- Safety Certifications: CE LVD, EAC
Package Contents
- Smart Managed Plus Switch
- Quick Install Guide
