MikroTik RouterBoard RB5009UG+S+IN: 4-core 1.4GHz CPU, 1GB RAM, 2.5Gbit LAN

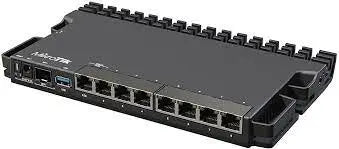

MikroTik RouterBoard RB5009UG+S+IN
The MikroTik RouterBoard RB5009UG+S+IN is the ultimate compact home lab router, the RB5009, boasting exceptional power and versatility. Equipped with USB 3.0, 1G and 2.5G Ethernet ports, along with a 10G SFP+ cage, this router offers unprecedented performance within a small form factor. Responding to user feedback, we've crafted a router with remarkable processing capabilities, multiple powering options, and efficient cooling, perfectly suited for home labs.
MikroTik RouterBoard RB5009UG+S+IN Key Features:
- High-Performance Networking
- Versatile Connectivity
- Compact and Efficient Design
- Flexible Powering Options
The board features 9 wired ports, including 7 Gigabit Ethernet, 1 2.5 Gigabit Ethernet, and a 10G SFP+ cage, all linked to a robust Marvell Amethyst switch-chip and a Marvell Armada Quad-core ARMv8 1.4 GHz CPU, benefiting from the case's heat-dissipating design. The RB5009UG+S+IN can be powered through PoE, DC Jack, or a 2-pin terminal. With 1GB DDR4 RAM and 1GB NAND storage, this configuration delivers nearly double the performance of similar-sized alternatives under intense CPU loads. Moreover, the router's mounting accessories allow effortless installation of up to four units in a single 1U rack space, streamlining productivity without the server room puzzle.
MikroTik RouterBoard RB5009UG+S+IN Technical Specifications
General
- Product code: RB5009UG+S+IN
- CPU: 88F7040 1.4 GHz
- CPU architecture: ARM 64bit
- CPU core count: 4
- Size of RAM: 1 GB
- RAM type: DDR4
- Storage: 1 GB, NAND
- Number of 1G Ethernet ports: 7
- Number of 2.5G Ethernet ports: 1
- Number of 10G SFP+ ports: 1
- USB port: 1 (3.0 type A)
- Operating system: RouterOS v7 only
- Switch chip model: 88E6393
- Dimensions: 220 x 125 x 22 mm
- Operating temperature: -40°C to +60°C
Powering
- PoE-in: 802.3af/at
- Number of DC inputs: 3
- Supported input voltage: 24-57 V (PoE in), 24-57 V (DC jack), 24-57 (2-pin terminal)
- Power adapter nominal voltage: 24 V
- Power adapter nominal current: 1.5 A
- Max power consumption (without attachments): 14 W
- Max power consumption: 20 W
Certifications and Approvals
- Certification: CE, FCC, IC
