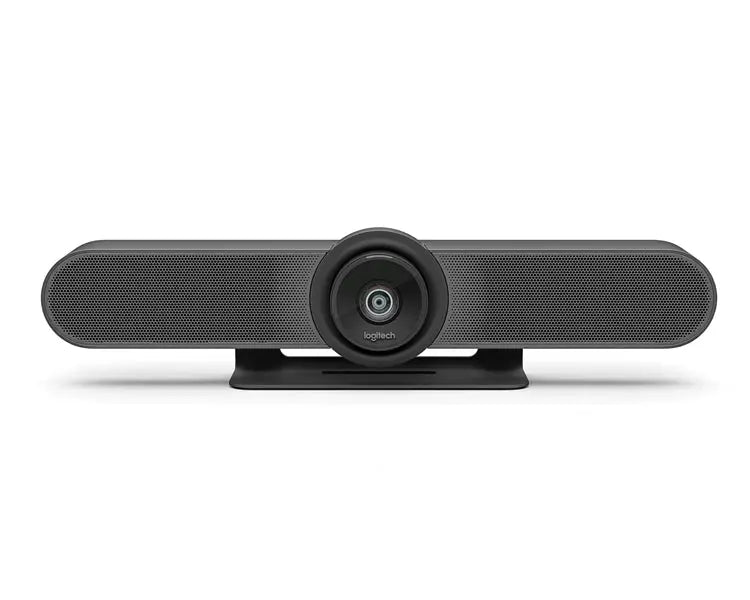

Logitech MeetUp 4K USB Mini Soundbar Camera (960-001102)
Logitech MeetUp 4K USB Mini Soundbar Camera (960-001102)
The Logitech MeetUp is a premier ConferenceCam designed for small conference rooms and huddle rooms. With a room capturing, superwide 120° field of view, MeetUp makes every seat at the table clearly visible. Motorised pan/tilt widens FOV even further: up to 170°. A low-distortion Logitech-engineered lens, Ultra HD 4K optics, and three camera presets deliver remarkable video quality and further enhance face-to-face collaboration.
Logitech MEETUP Key Features
- Super-wide 120° field of view
- Ultra HD 4K image sensor
- 3-microphones and custom-tuned speaker
- Razor-sharp optics
- 5x HD zoom
- Motorised pan/tilt
- 3 camera presets
- Bluetooth® wireless technology
- Expansion microphone-ready
- All-in-one design
- RF remote control
- Certified for Business
- Plug-and-play USB connectivity
- Works with most video conferencing applications
- Multiple mounting options
- Kensington® security slot
MeetUp’s integrated audio is optimised for huddle room acoustics and delivers an exceptional sound experience. Three horizontally-aimed beamforming mics and a custom-tuned speaker help ensure your meetings sound as great as they look. Humans have evolved to associate human voices with their visible images. MeetUp’s front-of-room audio provides an intuitive and coherent listening experience.
With a compact all-in-one design that minimises cable clutter, MeetUp is USB plugand-play and simply works right out of the box with any video conferencing software application and cloud service—including the ones you already use.
Camera
- Custom Logitech lens with 5x HD zoom and motorized pan (+/- 25°) and tilt (+/- 15°)
- Field of view: Diagonal: 120°, Horizontal: 113°, Vertical: 80.7°
- Total Room Coverage (field of view + pan and tilt): 163° wide x 110° tall
- 3 camera position presets
- RightSight auto-framing (requires Windows 10 64-bit or macOS 10.14 or higher)
- Video Performance:
- 4K Ultra HD video calling (up to 3840 x 2160 pixels @ 30 fps with customer-supplied USB 3.0 cable)
- 1080p Full HD video calling (up to 1920 x 1080 pixels @ 30 fps)
- 720p HD video calling (up to 1280 x 720 pixels @ 30 fps)
Microphone
- Integrated microphone with 3 beamforming elements
- Pickup Range:
- MeetUp: 4 meters
- With optional Expansion Mic: 5 meters - Sensitivity: -27dB
- Microphone frequency response: 90Hz - 16kHz for full voice reproduction and high intelligibility without noise
- Beamforming performance: Factory-paired, very low distortion broadside beamforming algorithm steers the microphones directly at the talker for the best voice pickup and noise reduction
- AEC (Acoustic echo cancellation)
- VAD (Voice activity detector)
- Microphone background noise suppression
- Microphone date rate: 32 kHz sampling rate
- Recommended # of participants: 6
- Recommended # of participants with expansion mic: 8
Speaker
- Volume adjustable to 95 dB SPL at 1/2 meter peak
- Speaker sensitivity 86.5+/-3dB SPL at 1/2 meter
- Distortion: 200 Hz -300Hz < 3%, 3000 Hz -10KHz < 1%
- Patent-pending anti-vibration enclosure improves voice clarity while limiting sound transmission to adjacent spaces
General
- Bluetooth® wireless technology
- RF remote control
- Integrated table/wall mount; optional TV mount available
- Kensington security slot
Dimensions and Weight
- Camera:
- 400 x 104 x 85 mm
- 15.75 x 4.1 x 3.35”
- 1.04 kg / 2.3 lbs - Remote:
- 83 x 10 x 83 mm
- 3.25 x 0.375 x 3.25”
- 72 g / 2.5 oz
System Requirements
- Windows® 7, Windows 8.1, or Windows 10
macOS 10.10 or higher - USB 2.0 port (USB 3.0 port and cable required for 4K video)
Rightsense Technologies
- RightLight:
- Low-light compensation
- Video noise reduction
- Low-light saturation optimisation - RightSight:
- Human figure detection
- Auto-frame participants at meeting start
- Auto-frame participants on-demand
- Auto-reframe when participants enter, leave, or change positions - RightSound:
- Machine learning AI trained to distinguish human speech from other sounds
- AEC (Acoustic Echo Cancellation)
- VAD (Voice Activity Detector)
- Background noise suppression
- Auto-level loud and soft voices
- Peak-limiting algorithm eliminates even momentary speaker clipping to prevent distortion
- Anti-vibration enclosure
Compatibility and Integrations
- Plug-and-play USB connectivity
- Certified for Skype™ for Business and Microsoft Teams
- Zoom™ Certified
- Fuze™ Certified
- Certified for Google Hangouts Meet Hardware
- Microsoft Cortana®
- Cisco Jabber®
- Compatible with BlueJeans, BroadSoft™, GoToMeeting™, Vidyo™, and other video conferencing, recording, and broadcasting applications that support USB cameras
Package Contents
- MeetUp ConferenceCam
- Remote control
- USB 2.0 cable: 5 m
- Power supply
- Wall mount and hardware
- User documentation
Warranty
- 2-Year Limited Hardware Warranty
