Logitech Connect ConferenceCam (LT-CCCONNECT)
- Category:Best selling products,Logitech Conference flor teams and SBF,Logitevch Conference for Zoom,New products

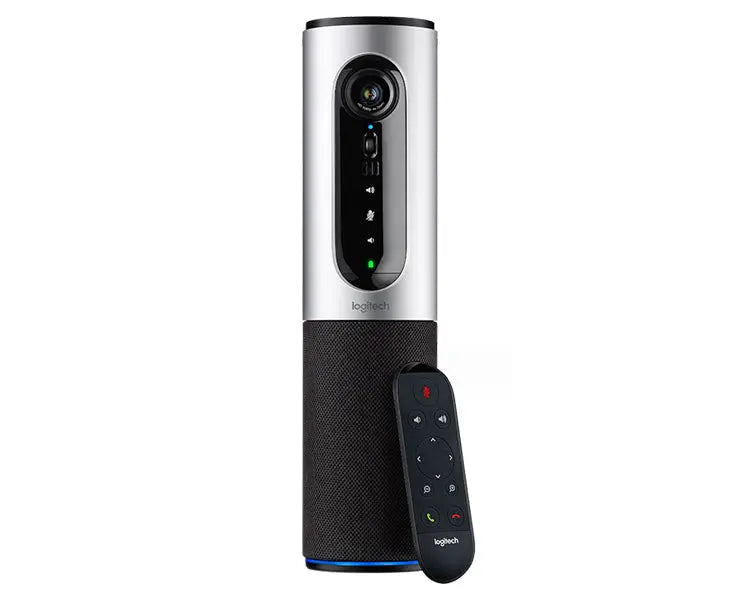

Logitech Connect ConferenceCam (LT-CCCONNECT)
The Logitech LT-CCCONNECT goes beyond its award winning design — video conferencing so simple to use that anyone can set it up and so affordable you can enable every meeting room with video. Designed for small groups of up to six people, this video conference solution offers a generous 90o field of view with digital pan and mechanical tilt, 4x digital HD zoom, and razor-sharp optics making it easy to see everyone in the room. An all-in-one design, built-in battery, and optional travel case make it easy to take Connect on the road. And with a compact footprint just 2.95” (75mm) in diameter, Connect is a perfect fit for both home office and huddle room.
Logitech LT-CCCONNECT Key Features
- Portable All-in-One Design
- Perfect for Small Workgroups
- Multi-Device Connectivity
- 90o field of view with digital pan and tilt
- 4x digital zoom in Full HD
- Acoustic echo and noise-cancelling technology
- Compact, 76 mm footprint
- USB Plug-and-Play Connectivity
- Bluetooth Wireless Connectivity
- Dockable Remote Control
- Far-End Camera Control
- Kensington Lock-Enabled
- Rechargeable Battery
With Connect, you can also use the USB and Bluetooth mobile speakerphone for great sounding audio calls. With true 360o sound, users can hear and be heard within a 12-foot diameter range while acoustic echo and noise-cancelling technology delivers life-like sound.
Camera
- Full HD 1080p video calling (up to 1920 x 1080 pixels);720p HD video calling (up to 1280 x 720 pixels)with supported clients
- H.264 UVC 1.5 with Scalable Video Coding (SVC)
- Supports H.264 SVC 1080p for Skype for Business, along with optimisations for best call performance in single or multiparty HD video
- Field of view:
- Diagonal: 90°
- Horizontal: 82.1°
- Vertical: 52.2° - 4X digital zoom in Full HD
- Rightlight™ 2 Technology for clear image in various lighting environments (even low light)
- Digital Pan, Tilt and Zoom from remote controlor optional downloadable app
- Mechanical tilt
- Camera LED for active streaming indication
Speakerphone
- Integrated full duplex speakerphone with echo and noise cancellation
- 360° wideband audio
- Bluetooth® and NFC enabled
- LEDs for speakerphone streaming, mute, hold, and Bluetooth pairing
- Controls for call answer/end, volume and mute
- Microphones (Tx):
- Two omni-directional microphones supporting 3.6 m diameter range
- Frequency response: 100Hz – 16KHz
- Sensitivity: -34dB +/-3dB
- Distortion: <1% @ 1KHz at 65dB - Speakers (Rx):
- Frequency response: 140Hz – 16KHz
- Sensitivity: 89dBSPL +/-3dB at 1W/0.5M
- Max output: 91.5dBSPL at 0.5M
- Distortion: <5% from 200Hz
Remote Control
- Docks on device and functions as a lens cover
- IR 3 m range
- CR2032 battery (included)
Cables/Power
- AC Power adapter with regional plugs
- USB cable 1.8 m
- Integrated rechargeable battery
Mount
- Designed for tabletop use
- Kensington security slot
Compatibility and Certifications
- Plug-and-play USB connectivity
- Certified for Skype for Business and ready for Teams
- Zoom Certified
- Fuze Certified
- Compatible with Google Meet
- Cisco Jabber® and WebEx compatible
- Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras
Dimensions
- Main Unit:
- HxWxD: 304.2 mm x 75 mm x 75 mm
- Weight: 766 g - Remote:
- HxWxD: 128 mm x 41 mm x 9 mm
- Weight: 32 g
Package Content
- Logitech Connect device
- Remote control
- 1.8 meter USB cable
- Power adapter with regional plugs
- Documentation
System Requirements
- Windows® 7, Windows 8.1 or 10
- macOS X 10.10 or higher
Warranty
- 2-Year Limited Hardware Warranty
Logitech Connect ConferenceCam (LT-CCCONNECT)
The Logitech LT-CCCONNECT goes beyond its award winning design — video conferencing so simple to use that anyone can set it up and so affordable you can enable every meeting room with video. Designed for small groups of up to six people, this video conference solution offers a generous 90o field of view with digital pan and mechanical tilt, 4x digital HD zoom, and razor-sharp optics making it easy to see everyone in the room. An all-in-one design, built-in battery, and optional travel case make it easy to take Connect on the road. And with a compact footprint just 2.95” (75mm) in diameter, Connect is a perfect fit for both home office and huddle room.
Logitech LT-CCCONNECT Key Features
- Portable All-in-One Design
- Perfect for Small Workgroups
- Multi-Device Connectivity
- 90o field of view with digital pan and tilt
- 4x digital zoom in Full HD
- Acoustic echo and noise-cancelling technology
- Compact, 76 mm footprint
- USB Plug-and-Play Connectivity
- Bluetooth Wireless Connectivity
- Dockable Remote Control
- Far-End Camera Control
- Kensington Lock-Enabled
- Rechargeable Battery
With Connect, you can also use the USB and Bluetooth mobile speakerphone for great sounding audio calls. With true 360o sound, users can hear and be heard within a 12-foot diameter range while acoustic echo and noise-cancelling technology delivers life-like sound.
Logitech LT-CCCONNECT Technical SpecificationsCamera
- Full HD 1080p video calling (up to 1920 x 1080 pixels);720p HD video calling (up to 1280 x 720 pixels)with supported clients
- H.264 UVC 1.5 with Scalable Video Coding (SVC)
- Supports H.264 SVC 1080p for Skype for Business, along with optimisations for best call performance in single or multiparty HD video
- Field of view:
- Diagonal: 90°
- Horizontal: 82.1°
- Vertical: 52.2° - 4X digital zoom in Full HD
- Rightlight™ 2 Technology for clear image in various lighting environments (even low light)
- Digital Pan, Tilt and Zoom from remote controlor optional downloadable app
- Mechanical tilt
- Camera LED for active streaming indication
Speakerphone
- Integrated full duplex speakerphone with echo and noise cancellation
- 360° wideband audio
- Bluetooth® and NFC enabled
- LEDs for speakerphone streaming, mute, hold, and Bluetooth pairing
- Controls for call answer/end, volume and mute
- Microphones (Tx):
- Two omni-directional microphones supporting 3.6 m diameter range
- Frequency response: 100Hz – 16KHz
- Sensitivity: -34dB +/-3dB
- Distortion: <1% @ 1KHz at 65dB - Speakers (Rx):
- Frequency response: 140Hz – 16KHz
- Sensitivity: 89dBSPL +/-3dB at 1W/0.5M
- Max output: 91.5dBSPL at 0.5M
- Distortion: <5% from 200Hz
Remote Control
- Docks on device and functions as a lens cover
- IR 3 m range
- CR2032 battery (included)
Cables/Power
- AC Power adapter with regional plugs
- USB cable 1.8 m
- Integrated rechargeable battery
Mount
- Designed for tabletop use
- Kensington security slot
Compatibility and Certifications
- Plug-and-play USB connectivity
- Certified for Skype for Business and ready for Teams
- Zoom Certified
- Fuze Certified
- Compatible with Google Meet
- Cisco Jabber® and WebEx compatible
- Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras
Dimensions
- Main Unit:
- HxWxD: 304.2 mm x 75 mm x 75 mm
- Weight: 766 g - Remote:
- HxWxD: 128 mm x 41 mm x 9 mm
- Weight: 32 g
Package Content
- Logitech Connect device
- Remote control
- 1.8 meter USB cable
- Power adapter with regional plugs
- Documentation
System Requirements
- Windows® 7, Windows 8.1 or 10
- macOS X 10.10 or higher
Warranty
- 2-Year Limited Hardware Warranty
