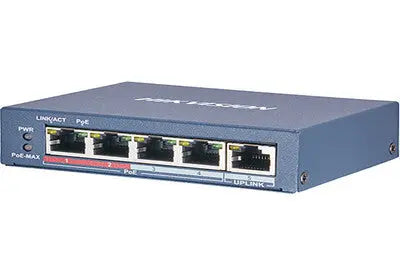

Hikvision DS-3E1105P-EI 4 Port Fast Ethernet Smart POE Switch
![Hikvision DS-3E1105P-EI 4 Port Fast Ethernet Smart POE Switch]()
![Hikvision DS-3E1105P-EI 4 Port Fast Ethernet Smart POE Switch]()
Hikvision DS-3E1105P-EI 4 Port Fast Ethernet Smart POE Switch
Available:Out of Stock
- Category:ALL PRODUCTS
£0.00
Hikvision DS-3E1105P-EI 4 Port Fast Ethernet Smart POE Switch
The Hikvision DS-3E1105P-EI is a Smart Managed 4-Port 100 Mbps PoE Switch.
Hikvision DS-3E1105P-EI Key Features
- 4 x 100 Mbps PoE RJ45 ports, 1 x 100 Mbps network RJ45 port.
- IEEE 802.3at/af standard for PoE ports.
- Network topology management, alarm push, network health monitor.
- 6 KV surge protection for PoE ports.
- AF/AT camera can reach up to 300 m in extend mode.
Hikvision DS-3E1105P-EI Technical Specification
Network Parameters
- Port number: 4 x 100 Mbps PoE RJ45 ports, and 1 x 100 Mbps network RJ45 port
- Port type: RJ45 port, full duplex, MDI/MDI-X adaptive
- Standard: IEEE 802.3, IEEE 802.3u, and IEEE 802.3x
- Forwarding mode: Store-and-forward switching
- Working mode: Standard mode (default), Extend mode
- High priority ports: Ports 1 to 2
- Ports for long-distance transmission: Ports 1 to 4
- MAC address table: 2 K
- Switching capacity: 1 Gbps
- Packet forwarding rate: 0.744 Mpps
- Internal cache: 768 Kbits
PoE Power Supply
- PoE standard: Ports 1 to 4: IEEE 802.3af, IEEE 802.3at
- PoE power pin: Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
- PoE port: Ports 1 to 4
- Max. port power: 30 W
- PoE power budget: 60 W
Software Function
- Device maintenance: Support remote upgrade, recovering default parameters, viewing logs,configuring basic network parameters.
- Typology display: Support typology display.
- Port configuration: Support rate, flow control, and switch configuration
- PoE function: IEEE 802.3at/af device provides power supply.
- Device status alarm: Support the device status, PoE_MAX and PoE status alarm.
- Network management: Support client management.
- Port statistics: Support port transmitting/receiving real-time rate statistics, 7-daytransmitting/receiving peak rate statistics
General
- Shell: Metal material, fan-free design
- Net Weight: 0.22 kg (0.49 lb)
- Dimension (L x H x D): 105 mm x 27.6 mm x 83.1 mm (4.76” x 3.47” x 1.09”)
- Operating temperature: 0°C to 40°C (32°F to 104°F)
- Storage temperature: -40°C to 85°C (-40°F to 185°F)
- Operating humidity: 5% to 95% (no condensation)
- Storage humidity: 5% to 95% (no condensation)
- Power supply: 48 VDC, 1.35 A
- Max. power consumption: 65 W
- Power source: 65 W
