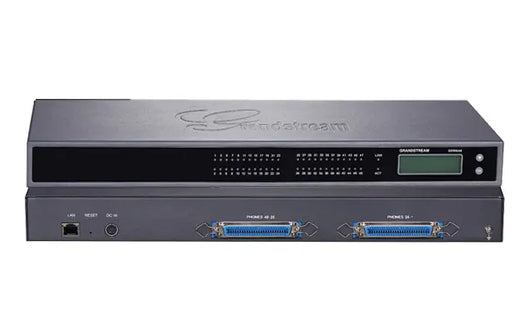

Grandstream GXW4232 FXS Analog VoIP Gateway
The Grandstream GXW4232 is a next generation analog VoIP gateway featuring high-density and performance. The gateway is fully compliant with SIP standards and interoperable with various VoIP systems, analog PBX and phones on the the market. The GXW4232 features multiple FXS analog telephone ports, superb voice quality, rich telephony functionalities, easy provisioning, flexible dialing plans, advanced security protection, and strong performance in handling high volume voice calls.
Grandstream GXW4232 FXS Analog VoIP Gateway Key Features
- 32 FXS ports
- 1 Gigabit network port
- 132x48 backlit graphic display with support for multiples languages
- 4 SIP server profiles per system, independent SIP account per port
The GXW4232 offers both small and medium businesses a cost-effective hybrid IP and analog telephone system that allows users to enjoy the benefits of VoIP communications while still preserving investment on existing analog phones, Fax machines and legacy PBX systems.
Telephone Interfaces
- GXW4216/4224/4232: 16/24/32 x RJ11 & 1/1/2 50-pin Telco connectors
- GXW4248: 2 50-pin Telco connectors
Network Interfaces
- 1 x 10M/100M/1000Mbps auto-sensing RJ45 port
LED indicators
- LAN Link, LAN Activity, Connection Per Telephone Port
LCD display
- Backlit 128x32 graphic LCD display with support for multiple languages
Voice-over-Packet Capabilities
- Window based carrier grade line echo cancellation, dynamic jitter buffer, modern detection & auto-switch to G.711
Voice Compression
- G.711, G.723.1, G.726 (40/32/24/16), G.729 A/B, iLBC
Fax over IP
- T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through, Fax data pump V.17, V.21, V.27ter, V.29 for T.38 fax relay
Telephony Feature
- Caller ID display or block, call waiting, blind or attended call transfer, call forward, do not disturb, 3-way conference, last call return, paging, message waiting indicator LED (NEON LED) support and stutter tone, auto dial
QoS
- DiffServ, TOS, 802.1P/Q VLAN tagging
Network Protocols
- TCP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, PPPoE, STUN, LLDP
DTMF Method
- Flexible DTMF transmission methods including in-audio, RFC2833, and/or SIP INFO
Signaling
- SIP (RFC 3261) over UDP/TCP/TLS
SIP Server Profiles & Accounts Per System
- 4 distinct SIP server profiles per system and independent SIP account per telephone port
Provisioning
- TFTP, HTTP, HTTTPS, TR069
Security
- SRTP, TLS/SIPS, HTTPS, 802.1x
Management
- Syslog, HTTPS, Web browser, voice prompt, TR-069
Universal Power Supply
- GXW4232/4224/4216: Output: 12VDC, 5A; Input: 100 ~ 240VAC, 50 ~ 60Hz
- GXW4248: Output: 24VDC, 6.25A; Inpu: 100 ~ 240VAC, 50~ 60Hz
Environmental
- Operating: 0 °C ~ 40C; Storage: -20°C ~ 60°C; Humidity: 10% ~90% (non-condensing)
Electrical Protection
- Over-voltage and over-current protection (ITU-T Reccomendation K.21, Basic Test Level)
Physical
- Unit dimension:
- 440mm (L) x 255mm (W) x 44mm (H) (1U) (GXW4248)
- 440mm (L) x 185mm (W) x 44mm (H) (1U) (GXW4216/4224/4232) - Unit Weight:
- 3.21KG (GXW4248)
- 2.63KG (GXW4224)
- 2.57KG (GXW4224)
- 2.39KG (GXW4216) - Package weight:
- 4.31KG (GXW4248)
- 3.68KG (GXW4224)
- 3.62KG (GXW4224)
- 3.48KG (GXW4216)
Mounting
- Desktop and rack mount with front brackets
LED Indicators
- Power, LAN Link/Activity, Hard Drive Activity
Short & Long Haul
- 2 REN, up to 2km on 24 AWG wire
Caller ID
- Bellcore Type 1&2, ETSI, BT, NTT, and DTMF-based CID
Disconnect Methods
- Busy Tone, Polarity Reversal/Wink, Loop Current
Compliance
- FCC: Part 15 (CFR 47) Class B
- CE: EN55022 Class B, EN55024, EN61000-3-2, EN16000-3-3, EN60950-1, RoHS
- C-TICK; AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, AN/NZS 60950
- ITU-T K.21 (Basic Test Level); UL 60950 (power adapter)
Grandstream GXW4232 FXS Analog VoIP Gateway
The Grandstream GXW4232 is a next generation analog VoIP gateway featuring high-density and performance. The gateway is fully compliant with SIP standards and interoperable with various VoIP systems, analog PBX and phones on the the market. The GXW4232 features multiple FXS analog telephone ports, superb voice quality, rich telephony functionalities, easy provisioning, flexible dialing plans, advanced security protection, and strong performance in handling high volume voice calls.
Grandstream GXW4232 FXS Analog VoIP Gateway Key Features
- 32 FXS ports
- 1 Gigabit network port
- 132x48 backlit graphic display with support for multiples languages
- 4 SIP server profiles per system, independent SIP account per port
The GXW4232 offers both small and medium businesses a cost-effective hybrid IP and analog telephone system that allows users to enjoy the benefits of VoIP communications while still preserving investment on existing analog phones, Fax machines and legacy PBX systems.
Grandstream GXW4232 - Technical SpecificationsTelephone Interfaces
- GXW4216/4224/4232: 16/24/32 x RJ11 & 1/1/2 50-pin Telco connectors
- GXW4248: 2 50-pin Telco connectors
Network Interfaces
- 1 x 10M/100M/1000Mbps auto-sensing RJ45 port
LED indicators
- LAN Link, LAN Activity, Connection Per Telephone Port
LCD display
- Backlit 128x32 graphic LCD display with support for multiple languages
Voice-over-Packet Capabilities
- Window based carrier grade line echo cancellation, dynamic jitter buffer, modern detection & auto-switch to G.711
Voice Compression
- G.711, G.723.1, G.726 (40/32/24/16), G.729 A/B, iLBC
Fax over IP
- T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through, Fax data pump V.17, V.21, V.27ter, V.29 for T.38 fax relay
Telephony Feature
- Caller ID display or block, call waiting, blind or attended call transfer, call forward, do not disturb, 3-way conference, last call return, paging, message waiting indicator LED (NEON LED) support and stutter tone, auto dial
QoS
- DiffServ, TOS, 802.1P/Q VLAN tagging
Network Protocols
- TCP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, PPPoE, STUN, LLDP
DTMF Method
- Flexible DTMF transmission methods including in-audio, RFC2833, and/or SIP INFO
Signaling
- SIP (RFC 3261) over UDP/TCP/TLS
SIP Server Profiles & Accounts Per System
- 4 distinct SIP server profiles per system and independent SIP account per telephone port
Provisioning
- TFTP, HTTP, HTTTPS, TR069
Security
- SRTP, TLS/SIPS, HTTPS, 802.1x
Management
- Syslog, HTTPS, Web browser, voice prompt, TR-069
Universal Power Supply
- GXW4232/4224/4216: Output: 12VDC, 5A; Input: 100 ~ 240VAC, 50 ~ 60Hz
- GXW4248: Output: 24VDC, 6.25A; Inpu: 100 ~ 240VAC, 50~ 60Hz
Environmental
- Operating: 0 °C ~ 40C; Storage: -20°C ~ 60°C; Humidity: 10% ~90% (non-condensing)
Electrical Protection
- Over-voltage and over-current protection (ITU-T Reccomendation K.21, Basic Test Level)
Physical
- Unit dimension:
- 440mm (L) x 255mm (W) x 44mm (H) (1U) (GXW4248)
- 440mm (L) x 185mm (W) x 44mm (H) (1U) (GXW4216/4224/4232) - Unit Weight:
- 3.21KG (GXW4248)
- 2.63KG (GXW4224)
- 2.57KG (GXW4224)
- 2.39KG (GXW4216) - Package weight:
- 4.31KG (GXW4248)
- 3.68KG (GXW4224)
- 3.62KG (GXW4224)
- 3.48KG (GXW4216)
Mounting
- Desktop and rack mount with front brackets
LED Indicators
- Power, LAN Link/Activity, Hard Drive Activity
Short & Long Haul
- 2 REN, up to 2km on 24 AWG wire
Caller ID
- Bellcore Type 1&2, ETSI, BT, NTT, and DTMF-based CID
Disconnect Methods
- Busy Tone, Polarity Reversal/Wink, Loop Current
Compliance
- FCC: Part 15 (CFR 47) Class B
- CE: EN55022 Class B, EN55024, EN61000-3-2, EN16000-3-3, EN60950-1, RoHS
- C-TICK; AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, AN/NZS 60950
- ITU-T K.21 (Basic Test Level); UL 60950 (power adapter)
