Grandstream GXP2130 v2 HD IP Phone (GXP2130-V2)
Please Note: This is the updated Grandstream GXP2130 v2 now featuring Bluetooth connectivity.

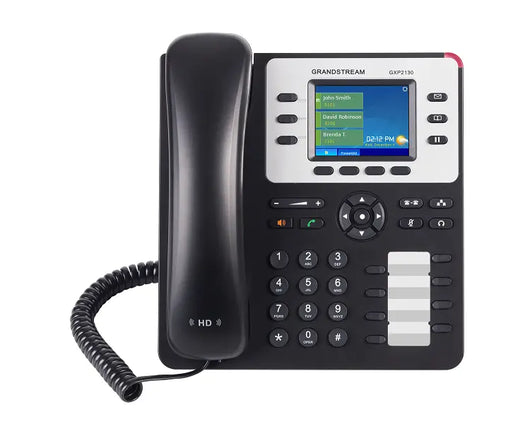

The Grandstream GXP2130 v2 is a standard enterprise-grade IP phone that boasts HD audio on speakerphone and handset, 2.8-inch colour LCD screen and 4-way audio conferencing. This handset is ideal for professionals and office workers who require a simple to use IP phone that is still feature rich, with the benefit of Bluetooth, Electronic Hook Switch (EHS) support for Plantronics headsets to allow for flexibility.
Grandstream GXP2130 Key Features
- Supports 3 lines, 3 SIP accounts and 4-way voice conferencing
- 2.8 inch (320x240) colour-screen LCD
- Dual Gigabit ports, integrated PoE
- 8 dual-coloured BLF/speed-dial keys
- HD audio on speakerphone and handset
Grandstream GXP2130 - Technical Specifications
Protocols/Standards
- SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6, CDP/SNMP/RTCP-XR
Network Interfaces
- Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
Graphic Display
- 2.8 inch (320x240) TFT colour LCD
Bluetooth
- Yes, Bluetooth V2.1
Feature Keys
- 3 line keys with up to 3 SIP accounts, 8 speed-dial/BLF extension keys with dual-color LED, 4 programmable context sensitive softkeys, 5 navigation/menu keys, 11 dedicated function keys for: MESSAGE (with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL
Voice Codecs
- Support for G.729A/B, G.711µ/a-law, G.726, G.722 (wide-band), G723.1, iLBC, Opus, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC
Auxiliary Ports
- RJ9 headset jack (allowing EHS with Plantronics headsets)
Telephony Features
- Hold, transfer, forward, 4-way audio conference, call park, call pickup, shared-call-appearance (SCA)/bridged-line-appearance (BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 500 records), customization of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail-over
Sample Applications
- Weather, XML
HD Audio
- Yes, both on handset and speakerphone
Base Stand/Wall Mountable
- Yes, allow 2 angle positions
QoS
- Layer 2 (808.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security
- User and administrator level passwords, MD5 and MD5-sess based authentication, AES based secure configuration file, SRTP, TLS, 802.1x media access control
Multi-language
- English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, simplified and traditional Chinese, Korean, Japanese and more
Upgrade/Provisioning
- Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or encrypted XML configuration file, FTP/FTPS
Power & Green Energy Efficiency
- Universal power adapter included: Input: 100-240VAC; Output: +12VDC, 0.5A (6W) Integrated PoE (Power-over-Ethernet) 802.3af, Class 2
Physical
- Dimension: 193mm (W) x 211mm (L) x 85mm (H)
- Unit weight: 0.81kg
- Package weight: 1.44kg
Temperature and Humidity
- 0 ~ 40ºC (32 ~ 104ºF ), 10 ~ 90% (non-condensing)
Package Content
- GXP2130 phone, handset with cord, base stand, universal power supply, network cable, Quick Start Guide
Compliance
- FCC Part 15 ClassB, EN55022 ClassB, EN61000-3-2, EN61000-3-3, EN55024, EN60950-1, EN62479
- RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950
